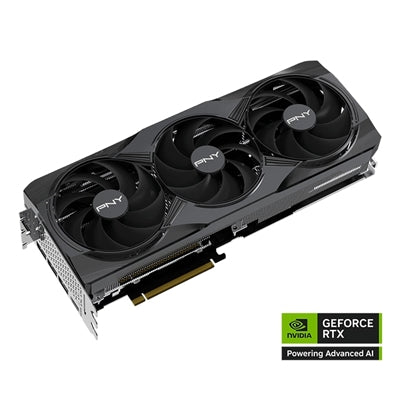

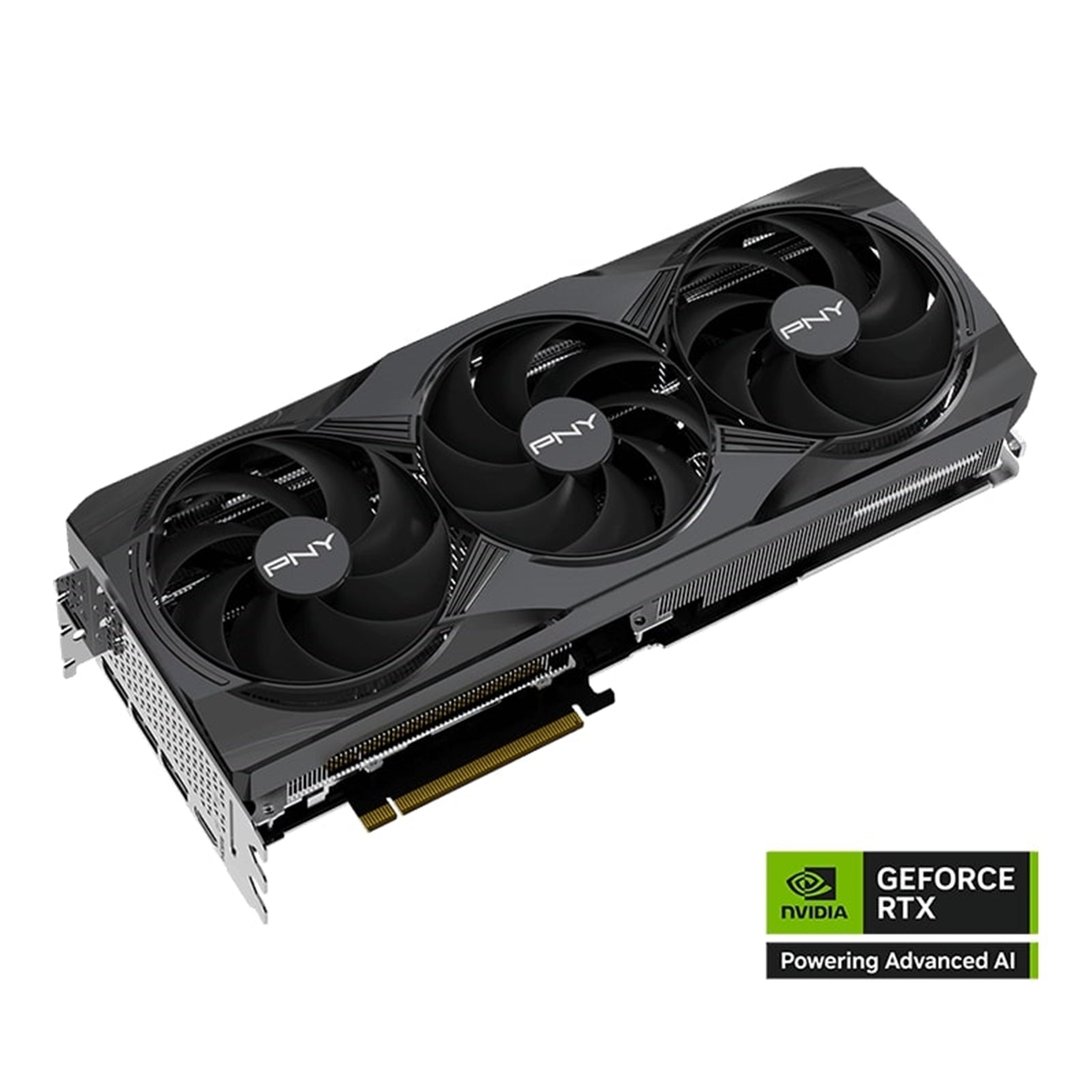

PNY GeForce RTX 5080 16GB Overclocked Triple Fan Graphics Card

The PNY GeForce RTX 5080 16GB delivers exceptional gaming and creative performance powered by NVIDIA Blackwell architecture. This overclocked graphics card features 16GB of GDDR7 memory, 10752 CUDA cores, and AI-powered DLSS 4 technology for demanding applications and AAA gaming at 4K and 8K resolutions.

NVIDIA Blackwell Architecture Performance

Built on NVIDIA's latest Blackwell architecture, the RTX 5080 combines fifth-generation Tensor Cores with fourth-generation Ray Tracing Cores. The 2295 MHz core clock speeds up to 2730 MHz boost clock, while 30 Gbps GDDR7 memory delivers 960 GB/s bandwidth across a 256-bit interface. This configuration handles ray tracing, AI acceleration, and high-refresh gaming with ease.

Advanced Cooling Solution

The triple fan cooling system efficiently distributes heat across the GPU surface, maintaining lower operating temperatures while running quietly. Two mounting screws physically connect the bracket to the cooler, ensuring solid structural integrity and consistent thermal contact. This 3-slot design measures 12.94" x 5.42" x 2.35" and requires proper case clearance.

DLSS 4 and NVIDIA Reflex 2

DLSS 4 with FP4 precision maximizes AI performance, generating additional frames for smoother gameplay. NVIDIA Reflex 2 reduces system latency for competitive gaming. NVIDIA Studio accelerates creative workflows in video editing, 3D rendering, and content creation applications.

Display and Connectivity

Three DisplayPort 2.1b outputs with UHBR20 support and one HDMI 2.1b port enable multi-monitor setups up to four displays. Drive 4K at 480Hz or 8K at 165Hz with Display Stream Compression. PCI Express 5.0 x16 interface ensures maximum bandwidth compatibility with modern motherboards.

Power and System Requirements

The 360W TDP requires an 850W or greater power supply and one 16-pin connector (adapter to three 8-pin connectors included). Compatible with Windows 11, Windows 10, and Linux 64-bit operating systems. Requires a PCI Express-compliant motherboard with one dual-width x16 slot and internet connection for driver installation.

Technical Specifications

• GPU: NVIDIA GeForce RTX 5080
• CUDA Cores: 10752
• Base Clock: 2295 MHz
• Boost Clock: 2730 MHz
• Memory: 16GB GDDR7
• Memory Speed: 30 Gbps
• Memory Interface: 256-bit
• Memory Bandwidth: 960 GB/s
• TDP: 360W
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Bus: PCI Express 5.0 x16
• Cooling: Triple Fan
• Dimensions: 12.94" x 5.42" x 2.35" (3-slot)
• Part Number: VCG508016TFXPB1-O

The PNY GeForce RTX 5080 OC 16GB combines cutting-edge Blackwell architecture with robust cooling and overclocked performance for gamers and content creators demanding maximum fidelity.
