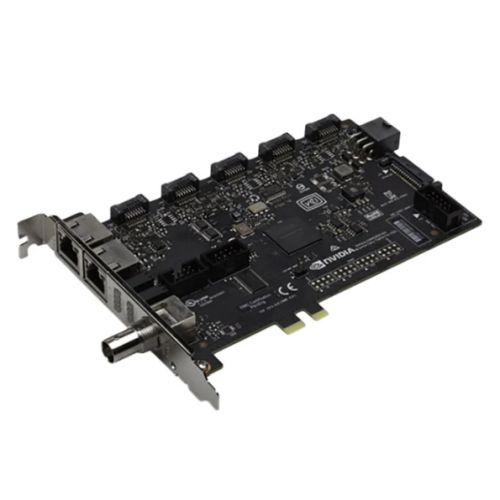

- PNY RTX PRO Sync Board, PCIe x16 AIC, Up to 8 GPUs, Multi GPU Sync, 32 Displays, NVIDIA Mosaic, Genlock, Stereoscopic 3D PNY RTX PRO Sync Board, PCIe x16 AIC, Up to 8 GPUs, Multi GPU Sync, 32 Displays, NVIDIA Mosaic, Genlock, Stereoscopic 3D
- Description
- Shipping & Returns
- Reviews
Enterprise-Grade Synchronized Display Systems
- 4 GPUs per card, 2 cards per system, 8 GPU sync scaling.
- Up to 32 synchronized displays or projectors with Mosaic support.
- External genlock up to 1000 Hz plus internal sync generation.
- Stereoscopic 3D, projector overlap and Mosaic synchronization.
- Firmware-controlled sync multipliers and mixed resolution support.
- LED status indicators, WMI integration and command line tools.
- Fits a single PCIe slot, uses internal ribbon cables.
- Cross-platform support for Windows and Linux with enterprise certification.
Designed for flexibility and scalability, RTX PRO Sync boards connect to select NVIDIA RTX PRO GPUs, synchronizing them with attached displays or projectors. RTX PRO Sync also enables NVIDIA Mosaic technology on those synchronized displays and projectors.
Up to 4 GPUs per Sync card, up to 2 Sync cards per system, allowing a total of 8 synchronized GPUs. Drive up to 32 displays or projectors per system, fully synchronized - even when spanning displays via NVIDIA Mosaic.
The RTX PRO Sync card fits into a free PCIe slot but does not use PCIe data lines—all GPU synchronization runs over dedicated internal cables. It allows external sync rates up to 1000 Hz, plus it can generate sync output signals for other systems.
- Sync multiply/divide: match external sync rates (e.g. lock 120 Hz displays to a 60 Hz house-sync)
- Faster sync-locking and support for synchronizing different resolutions at the same refresh rate across boards
Setup and control via NVIDIA Control Panel or command-line tools. Cards include status LEDs for frame-lock, stereo lock, house-sync, and Framelock in/out indicators. WMI support enables remote monitoring.
Supports Windows 10/11 and major Linux platforms. RTX PRO Sync is firmware updatable (e.g., version 3.04 adds Blackwell support)
Description
Specification
- Type: RTX PRO Sync Option Board for NVIDIA RTX Professional GPUs
- Connectors: PCIe 3.0 (x16)
- Features: See Overview
- Package Type: Retail
- Package Weight: 0.3600 kg
- Warranty: 1 Year
