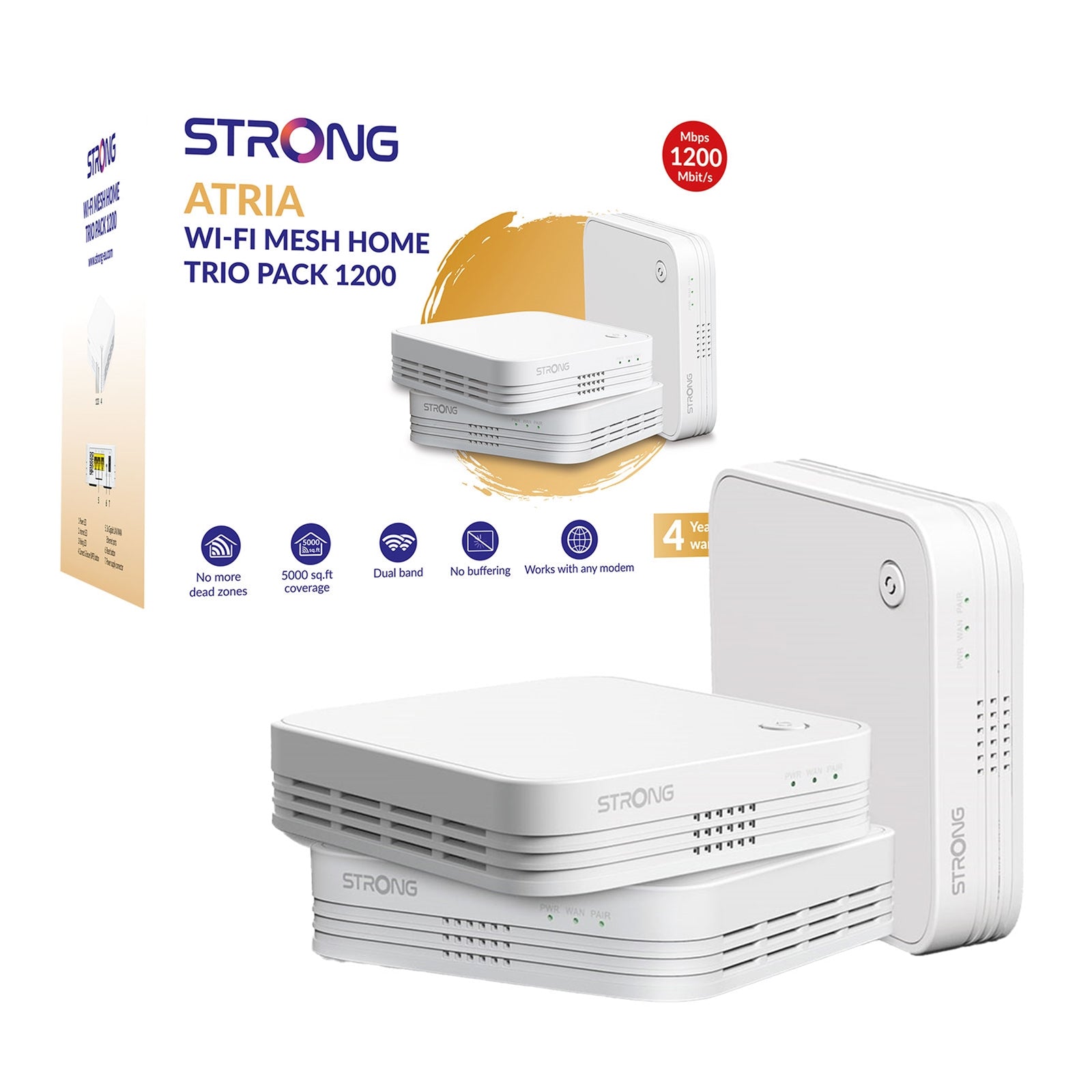

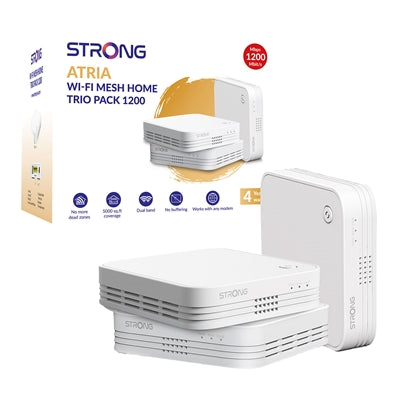

STRONG AC1200 Whole Home Mesh WiFi System - 3 Pack

The STRONG MESHTRI1200UK delivers seamless WiFi coverage across up to 5,000 square feet with its 3-node mesh system. Built on Easy Mesh™ technology and 802.11ac MU-MIMO standard, this system eliminates dead zones and provides consistent connectivity throughout your home at speeds up to 1200 Mbps.

Easy Installation, No Technical Expertise Required

Connect one Mesh Extender 1200 to your existing modem via Ethernet, position the remaining units throughout your home, and you're done. The system works with your current router without requiring replacement. Manage your entire network through the STRONG App, available for both Android and iOS devices.

Dual-Band Performance

The system operates on both 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 867 Mbps) frequencies simultaneously. Four internal antennas per unit ensure strong signal distribution, while intelligent roaming automatically connects devices to the optimal frequency band and access point as you move through your home.

Expandable Coverage

Start with three units covering 5,000 square feet, then expand up to six Mesh Extender 1200 units for coverage up to 9,000 square feet. The system maintains one unified WiFi network name across all units, enabling seamless roaming without manual network switching.

Advanced Mesh Features

Auto-configuration eliminates complex setup procedures. Auto-healing provides redundancy and fail-over protection if one node experiences issues. Dynamic client management optimizes device connections across the mesh network. All units share configuration settings automatically, maintaining consistent network parameters.

Connectivity Options

Each unit includes three Gigabit Ethernet ports (10/100/1000M) with Auto MDI/MDIX for wired connections to devices like gaming consoles, smart TVs, or desktop computers. WPA2/WPA2-PSK security protocols protect your network.

Package Contents

• 3x Mesh Extender 1200 units
• 3x Power Supply Units (12V/1A DC)
• 1x CAT5E Ethernet Cable
• Installation Instructions and Warranty Card

Compact Design

Each unit measures 130x130x30mm and weighs approximately 220g. Power consumption remains under 8W per unit. Operating temperature range: 0°C to 45°C.

Technical specifications

WI-FI

Frequency
2.4 GHz and 5 GHz concurrent

Signal Rate
5 GHz: Up to 867 Mbit/s
2.4 GHz: Up to 300 Mbit/s

Security
WPA/WPA-PSK & WPA2/WPA2-PSK

Antenna
4x internal antennas

Transmit Power
Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

Supported Channels
5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

WIFI Standards
IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i

HARDWARE

Main Chipset
RTL8197FS

Wi-Fi Chipset
RTL8812FR for 5GHz

Ethernet Ports
3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX)

Buttons
Connect & Secure (WPS), Reset

LEDs
Power, WAN, Pairing

Power
External power supply, 12 V/1 A DC

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

SOFTWARE

Basic Network
DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS, WPS, WMM

Management
Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log

Internet Protocol
IPv4/V6

STRONG Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network

INTERNET SERVICES

Easy MESH Support
Automatically Organized Network
Auto Configuration
Seamless Roaming
Auto MESH Routing
Auto Healing (Redundancy and Fail-over)
Intelligent roaming (Dynamic management of clients and clients frequency bands)
Multiple access point architecture (up to 6x Mesh Extender 1200)
Only one Wi-Fi name all over the house (configuration sharing)

OTHER SPECIFICATIONS

Certification
CE

Power consumption per unit
< 8W

System requirements
Internet Browser

OTHERS

Package contents
3x Mesh Extender 1200
3x Power Supply Units (12 V/1 A DC)
1x CAT5E Ethernet Cable
1x Installation Instructions, Warranty Card

ENVIRONMENT

Operating Temperature
0° C~+45° C

Storage temperature
-20° C~+70° C

Operating humidity
10%~90% non-condensing

Storage humidity
10%~90% non-condensing

Dimensions (WxDxH) per unit
13013030 mm

Weight per unit
~220 g

• Product Type: Mesh System
• Included Nodes: 3
• Mesh Speed: AC1200
