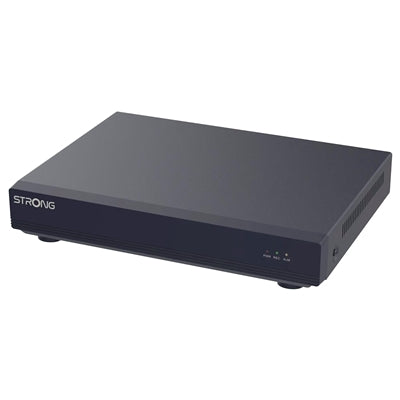

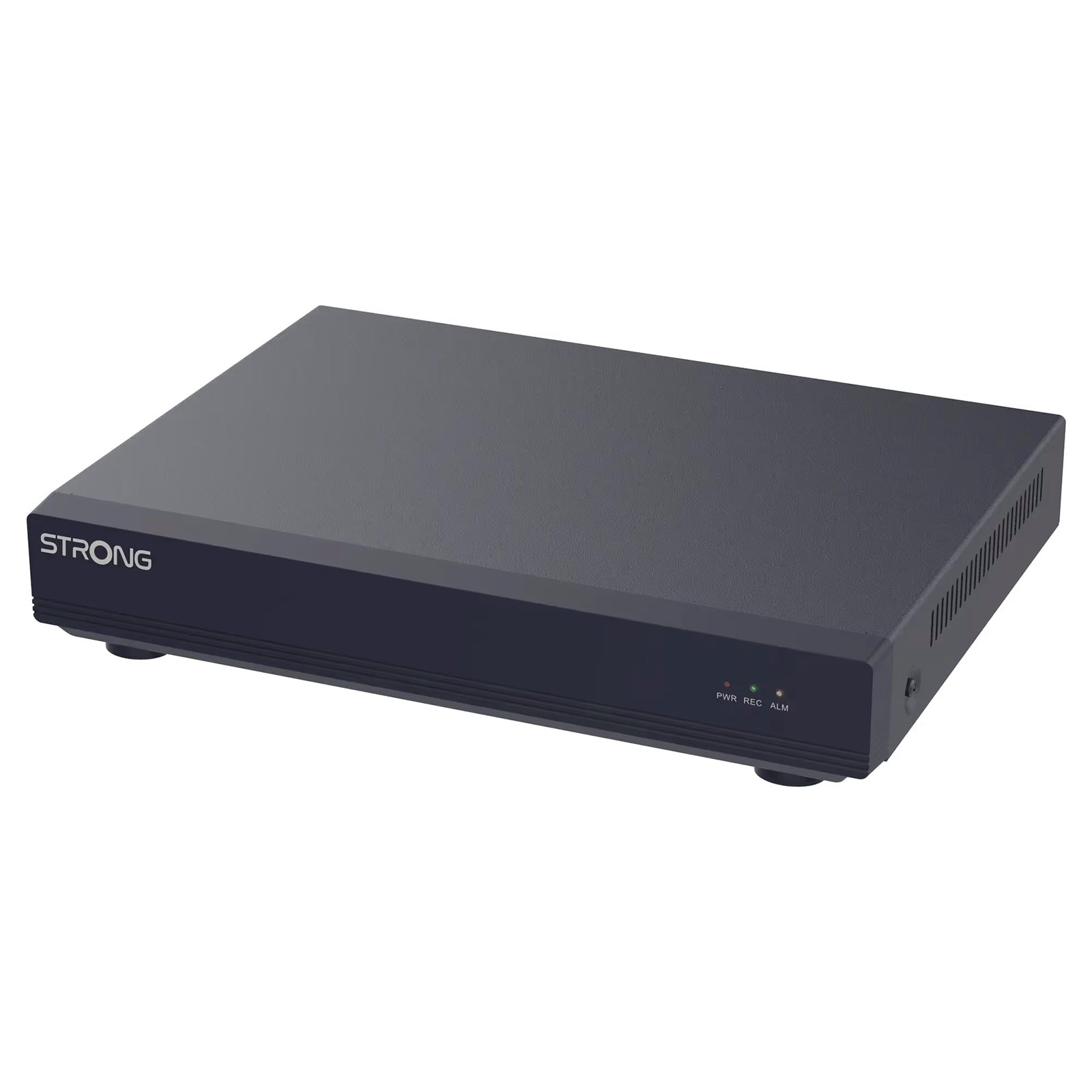

8 Channel 4K PoE Network Video Recorder with ONVIF Support

The NVR-8CHPOE-8MP-UK serves as the centralized hub for your IP surveillance system, offering reliable 4K recording across 8 channels. This metal-constructed network video recorder combines Power over Ethernet functionality with advanced H.265+ compression technology.

8 PoE Ports for Simplified Installation

Connect up to 8 IP cameras directly through the integrated PoE ports, eliminating the need for separate power supplies. Each port delivers 14W of power with a total PoE budget of 56W maximum. The system supports adding IP cameras across different IP segments, providing flexible network configuration options for expanded coverage.

4K Recording with H.265+ Compression

Record surveillance footage at maximum 8MP resolution (4K) while utilizing H.265+ compression to significantly reduce file sizes without compromising image quality. The NVR supports incoming and outgoing bandwidth of 512Mbps, ensuring smooth video streaming and playback. View live footage in multiple panel configurations: single panel at 8MP, 4-panel at 4MP, or up to 8-panel split views.

Expandable Storage and Cloud Access

Install up to 8TB of 3.5" SATA HDD storage to accommodate extensive video archives. Access recorded footage remotely through cloud playback functionality using the Vision by STRONG app. The system includes both audio input and output via mini jack connections for comprehensive surveillance monitoring.

ONVIF Profile S Compatibility

Integrate third-party IP cameras seamlessly with ONVIF Profile S support. The NVR supports standard network protocols including TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP, and P2P for reliable connectivity and remote access.

Advanced Detection Features

Connected IP cameras support human and vehicle detection, motion detection, area detection, and line crossing alerts. The NVR provides system notifications for video loss, HDD errors, HDD full status, missing HDD, and IP conflicts to maintain system reliability.

Technical Specifications

• Model: NVR-8CHPOE-8MP-UK
• Maximum Resolution: 8MP (4K)
• Channels: 8CH maximum
• PoE Ports: 8x RJ45 (10/100Mbps), 14W per port
• Network: 1x Ethernet LAN (10/100Mbps, RJ45)
• HDD Support: Up to 8TB SATA 3.5"
• Video Output: 4K HDMI
• Power Supply: DC48V/2A
• Dimensions: 280 x 208 x 51mm
• Weight: 816g

Package Contents

The package includes the NVR unit, USB mouse for navigation, power supply, mounting screws, quick start guide, and warranty card. The system is designed for indoor installation and operates in English language interface.

• Bullet/Dome: NVR
• SD Card Slot: No
• Resolution: 8mp
• Lens Size: N/A
