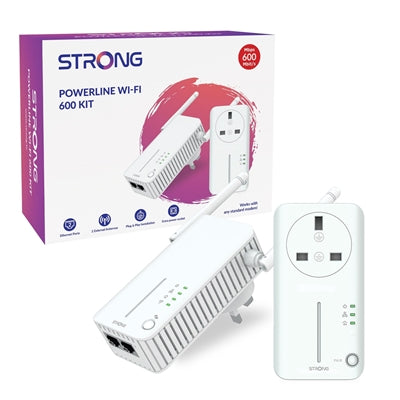

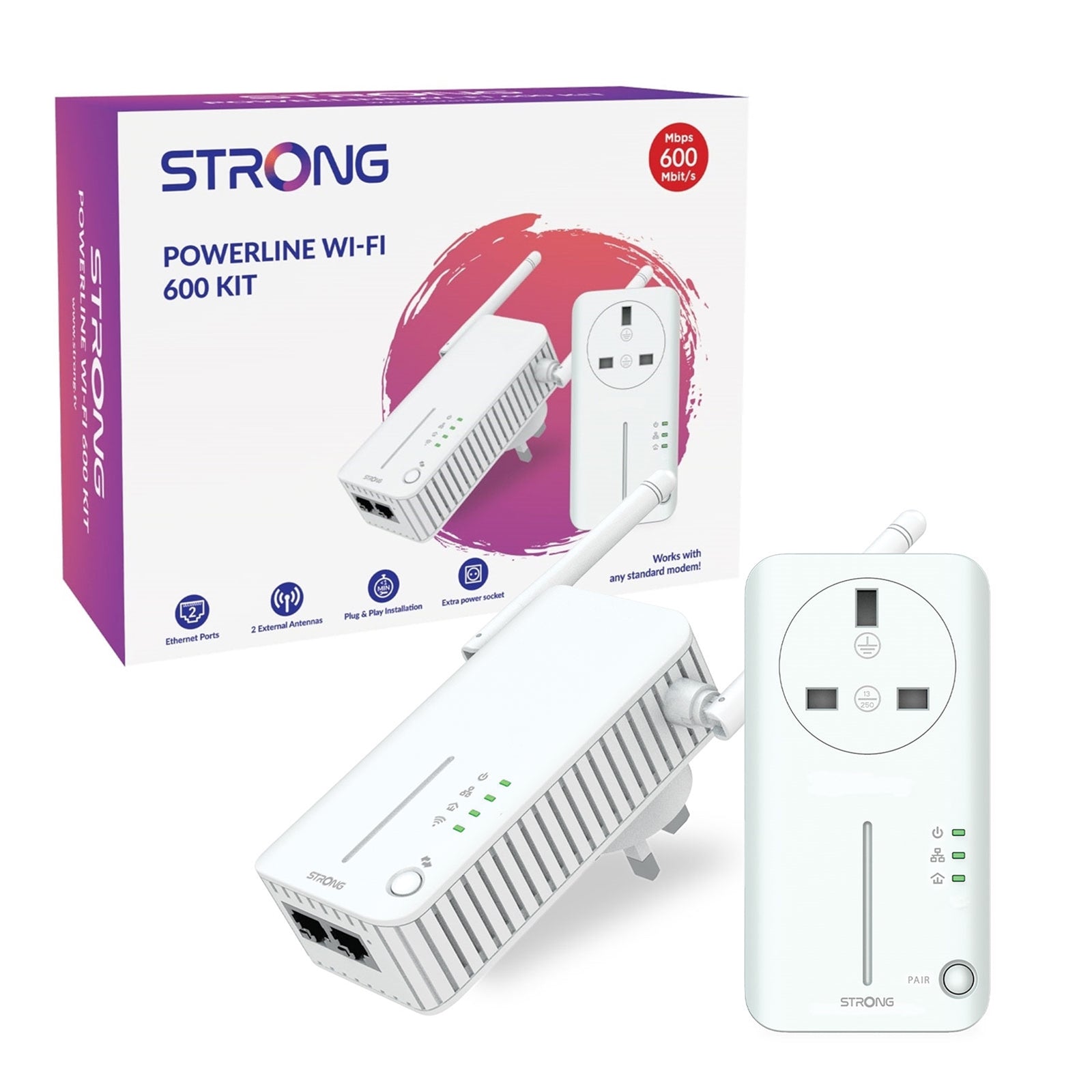

STRONG AV600 Powerline WiFi Extender Kit with Passthrough

The STRONG POWERLWF600DUOUK delivers reliable internet connectivity through your existing electrical wiring. This dual-pack powerline kit includes one WiFi-enabled adapter and one standard powerline adapter, providing flexible networking options throughout your home.

Extend Your Network Without New Cables

Connect the Powerline 600 adapter to your router via Ethernet, and instantly access internet at any power outlet in your home. The Powerline WiFi 600 adapter creates an additional WiFi hotspot wherever you need it, extending coverage up to 300 meters through your electrical circuit. No drilling, no new wiring required.

Key Performance Specifications

The WiFi adapter delivers wireless speeds up to 300 Mbit/s on the 2.4 GHz band, while powerline speeds reach 600 Mbit/s. Both adapters feature 10/100 Mbps Ethernet ports for wired connections. The WiFi unit includes two adjustable 3dBi omnidirectional antennas and supports WEP, WPA/WPA2 encryption standards. Powerline data transmission is secured with 128-bit AES encryption.

Passthrough Socket Design

The Powerline 600 adapter includes an integrated power socket (250V AC, 16A max), ensuring you don't lose a valuable outlet. Simply plug the adapter in and continue using the socket for other devices.

Simple Installation Process

Zero-configuration setup means no technical expertise required. Plug in both adapters, press the Connect & Secure button, and your powerline network is ready. The units work with Windows 7/8/8.1/10, Mac OS X, and Linux systems.

What's in the Kit

Package includes one Powerline WiFi 600 Adapter with dual Ethernet ports and WiFi capability, one Powerline 600 Adapter with passthrough socket, two Ethernet cables, and installation instructions.

Technical specifications

Powerline Wi-Fi 600 Adapter
Frequency Wi-Fi: 2.4 GHz
Frequency Powerline: 2 MHz ~ 68 MHz
Standards Wi-Fi: IEEE 802.11n/g/b, IEEE 802.3, IEEE 802.3u
Standards Powerline: HomePlug™ AV, IEEE 802.3, IEEE 802.3u
Signal Rate Wi-Fi: Up to 300 Mbit/s
Signal Rate Powerline: Up to 600 Mbit/s
Security Wi-Fi: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Security Powerline: 128 bit AES
Antenna: 2x 3dBi omnidirectional, adjustable
Transmit Power Wi-Fi: Europe: <20 dBm
Supported Channels: 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Ethernet Ports: 2x 10/100 Mbp LAN port (Auto MDI/MDIX)
Button: Connect & Secure, Reset/WPS
LEDs: Power, Ethernet, Powerline, Wi-Fi
Size (WxDxH) in mm: 101.5 x 71.5 x 184
Weight in kg: 0.17

Powerline 600 Adapter
Frequency: 2 MHz ~ 68 MHz
Standards: HomePlug™ AV, IEEE 802.3, IEEE 802.3u
Interface: 10/100M Ethernet, Extra Power Socket 250 V AC 16 A max.
Button: Connect & Secure/Reset
LEDs: Power, Powerline, Ethernet
Power: 100 - 240 V, 50/60 Hz
Security: 128 bit AES
Range: Up to 300 meters over electric circuit
Size (WxDxH) in mm: 60 x 74 x 117
Weight in kg: 0.16

Others
Certification: CE
Package Contents: 1x Powerline Wi-Fi 600 Adapter, 1x Powerline 600 Adapter, 2x Ethernet cables, Installation instructions
System Requirements: Windows 7, 8, 8.1, 10, Mac OS X, Linux, Internet Browser

Environment
Operating temperature: 0 °C ~ +40 °C
Storage temperature: -40 °C ~ +70 °C
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing

• Pack Size: Kit
• Speed: 600Mbps
• Pass-Through: Yes
