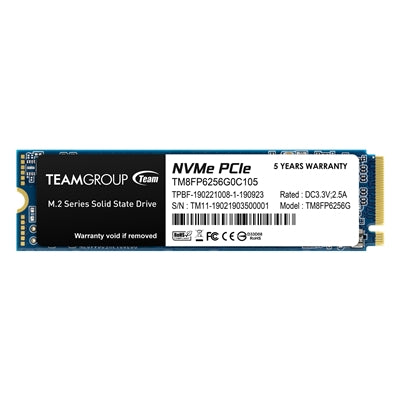

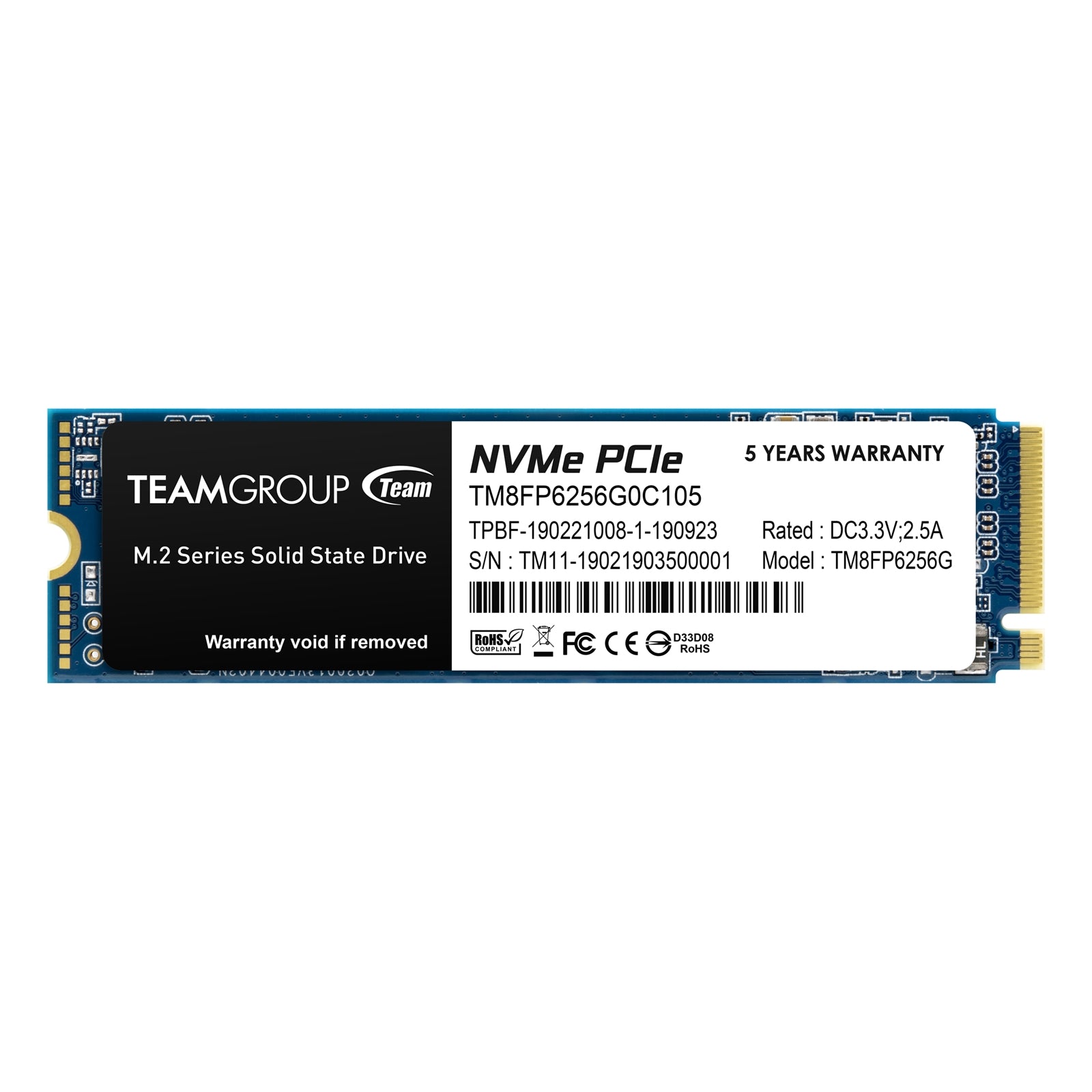

Team MP33 256GB M.2 NVMe PCIe Gen3 Solid State Drive

The Team MP33 M.2 PCIe Solid State Drive delivers high-speed storage performance through its PCIe Gen3 x4 interface and NVMe 1.3 compliance. Built with 3D NAND flash memory, this 256GB SSD offers sequential read speeds up to 1,600MB/s and write speeds up to 1,000MB/s, providing three times faster performance than traditional SATA 6GB/s interfaces.

Performance Specifications

The MP33 achieves 180K IOPS for 4K aligned random reads and 200K IOPS for random writes, reducing operating delays when gaming, loading software, or working with video and graphics editing applications. The drive's performance ensures smooth operation without lag during intensive computing tasks.

Form Factor and Compatibility

Featuring the mainstream M.2 2280 form factor (22mm x 80mm), the MP33 installs directly into M.2 slots on current Intel and AMD motherboards. Its lightweight, compact design makes it suitable for both desktop PC and laptop upgrades where space is limited and performance matters.

Advanced Management Features

The drive supports S.M.A.R.T monitoring and includes intelligent algorithm management with garbage collection and TRIM command support to maintain operation efficiency throughout its lifespan. Wear-Leveling technology distributes data evenly across memory cells, while ECC (Error Correction Code) functionality improves data transfer accuracy and reliability. These features combine to extend the drive's service life with an MTBF rating of 1,500,000 hours.

Technical Specifications

Capacity
256GB

Model
TM8FP6256G0C101

Interface
PCIe 3.0 x4 with NVMe 1.3

Max Read/Write
Sequential Read (CDM): 1600MB/s
Sequential Write (CDM): 1000MB/s

Max 4KB Random Read/Write
4K Aligned Random Read: 180K IOPs
4K Aligned Random Write: 200K IOPs

Form Factor
M.2 2280

Packaging
Retail

Additional Features
MTFB: 1,500,000 hours

• Type Of Drive: M.2
• Connection: M.2 NVMe PCie 3.0
• Capacity: 256GB
• Packaging: Retail
