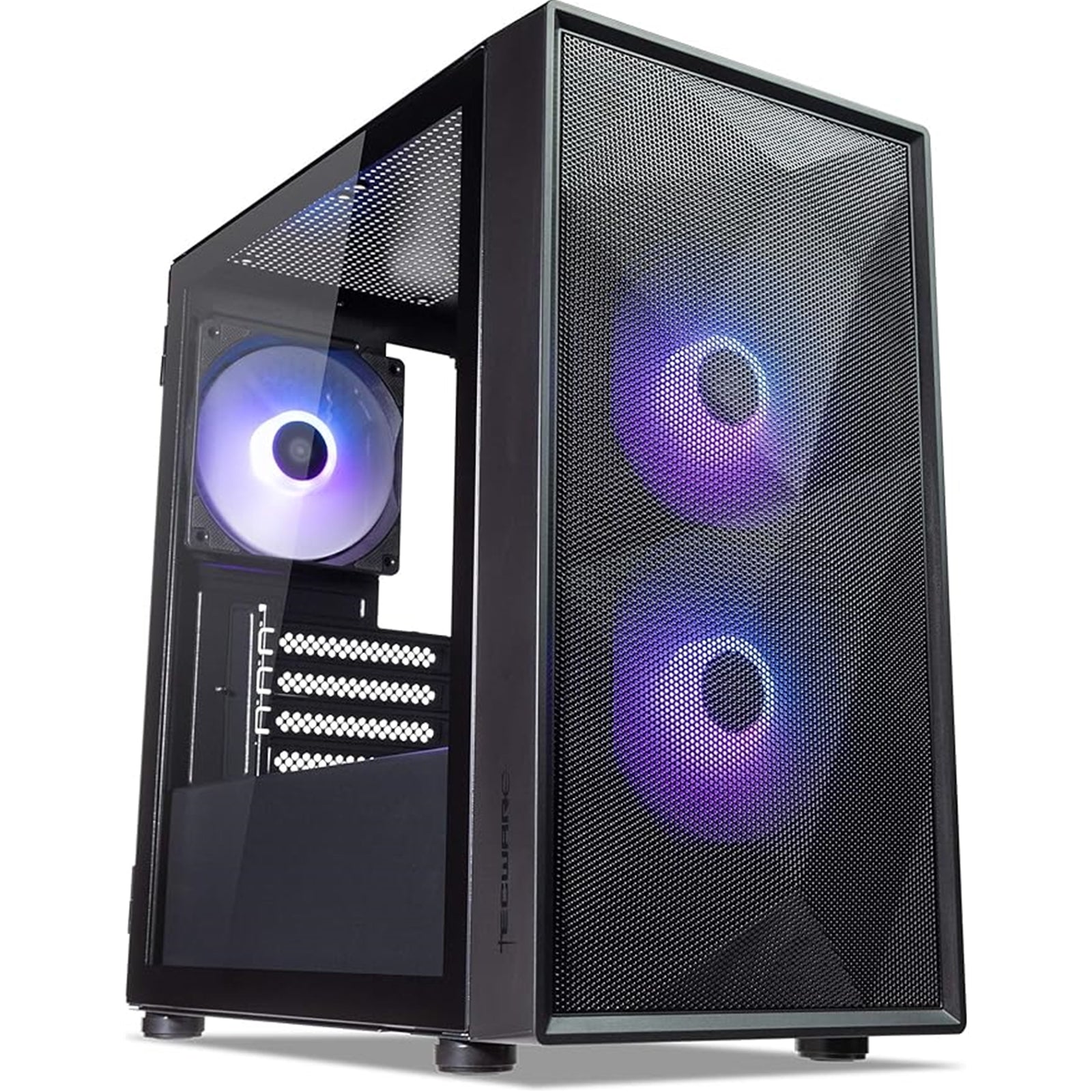

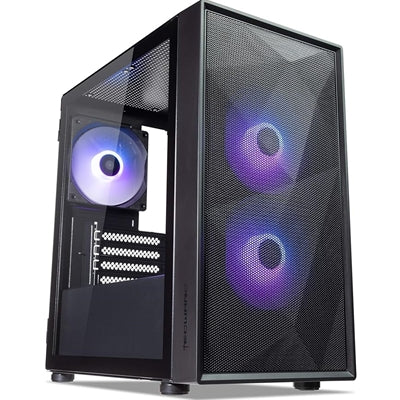

TecWare Forge M2 Compact mATX RGB Case

The TecWare Forge M2 delivers airflow-focused design in a compact form factor. Built for mATX and Mini-ITX motherboards, this case combines mesh ventilation, pre-installed ARGB lighting, and tool-free access through its hinged tempered glass side panel.

Airflow and Cooling

The full mesh front panel maximizes intake airflow, working with three pre-installed 120mm ARGB fans—two front-mounted and one rear exhaust. All fans come daisy-chained and ready for motherboard sync via 3-pin 5V header. The case supports up to 240mm radiators at the front, with additional mounting for 2 x 120mm fans at the top and ventilation at the bottom.

Build Flexibility

Despite its compact 200 x 390 x 350mm footprint, the Forge M2 accommodates GPUs up to 300mm and CPU coolers up to 165mm in height. The removable HDD cage provides 2 x 3.5"/2.5" combo bays, plus an additional removable 2.5" SSD tray. Four full-size expansion slots and standard ATX PSU support (bottom-mounted) offer compatibility with most configurations.

Access and Cable Management

The hinged tempered glass side panel swings open for quick access to components without removing screws. Approximately 20mm of cable management depth behind the motherboard tray keeps builds clean. Front I/O includes 2 x USB 3.0 ports, HD audio, and microphone jacks.

Technical Specifications

Form Factor: Micro ATX
Motherboard Support: Micro ATX, Mini-ITX
PSU Support: Standard ATX (Bottom-mounted)
Body Material: Steel, Plastic, Tempered Glass
Front Bezel Material: ABS (Polygonal Mesh Design)
Side Panel: Hinged Tempered Glass
Internal Cable Management Depth: Approx. 20mm
Drive Bays: 2 x 3.5"/2.5" Combo (Removable HDD Cage), 1 x 2.5" (Removable SSD Tray)
Expansion Slots: 4 x Full Size

Cooling:
Front: 2 x 120mm ARGB (Included) / Supports up to 2 x 140mm
Top: Supports 2 x 120mm
Rear: 1 x 120mm ARGB (Included)
Bottom: Ventilated

Radiator Support:
Front: 120mm / 140mm / 240mm

IO Ports: 2 x USB 3.0, 1 x HD Audio, 1 x Microphone
GPU Max Length: 300mm
CPU Cooler Maximum Height: 165mm
Front Bezel Colour: Black (Mesh)
Body Colour: Black
PSU Included: No
Dimensions (W x H x D): 200 x 390 x 350 mm
Weight: Approx. 4.5kg

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Tempered Glass
