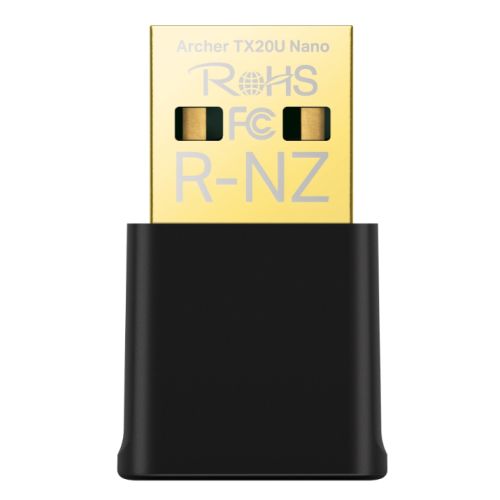

TP-LINK Archer TX20U Nano AX1800 Wi-Fi 6 USB Adapter

The TP-LINK Archer TX20U Nano delivers Wi-Fi 6 connectivity to your desktop or laptop through a compact USB 2.0 interface. This dual-band wireless adapter provides combined speeds up to 1775 Mbps, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, breaking the gigabit barrier for faster downloads, streaming, and gaming.

Wi-Fi 6 Technology for Modern Networks

Built on the IEEE 802.11ax standard, this adapter brings Wi-Fi 6 capabilities to computers without built-in wireless connectivity. The technology reduces network congestion and improves efficiency when multiple devices connect simultaneously. OFDMA (Orthogonal Frequency-Division Multiple Access) allows your router to communicate with multiple devices at once, reducing latency during video calls, online gaming, and 4K streaming.

MU-MIMO for Simultaneous Connections

Multi-User MIMO technology enables the adapter to maintain stable connections even when your network handles bandwidth-intensive tasks across multiple devices. Stream high-definition content, participate in video conferences, and upload large files without experiencing drops in performance.

WPA3 Security Protocol

The Archer TX20U Nano supports WPA3 encryption, the latest Wi-Fi security standard. This protocol strengthens password protection and provides enhanced defense against brute-force attacks, securing your wireless connection beyond what WPA2 offered.

Nano Design for Portability

Measuring just 26.8 x 15.7 x 7.5 mm, this adapter maintains a minimal profile when connected to your USB port. The compact form factor makes it suitable for laptops, desktops, and travel use. Once plugged in, the nano design sits nearly flush with the USB port, reducing the risk of accidental disconnection.

Simple Installation Process

The TX20U Nano includes pre-loaded drivers for straightforward setup. Connect the adapter to an available USB 2.0 port on your Windows 11 or Windows 10 computer, and follow the installation prompts. The status LED provides visual confirmation of connectivity.

Dual-Band Flexibility

Switch between 2.4 GHz and 5 GHz frequency bands based on your needs. The 2.4 GHz band offers extended range for general browsing and email, while the 5 GHz band provides higher speeds for bandwidth-demanding applications like video streaming and large file transfers.

Technical Specifications

• Interface: USB 2.0
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Bands: Dual Band
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• External Antenna: No
• Antenna Type: 2 x Dual-Band Antennas
• Frequency / Signal Rate: 5GHz: up to 1201 Mbps
  2.4GHz: up to 574 Mbps
• LED: Status
• Dimensions: 26.8 x 15.7 x 7.5 mm
• Wireless Modes: Infrastructure mode
• Security: "WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK"
• Advanced Functions: See Overview
• Environment (°C): Operating Temperature: 0°C~40°C (32°F ~104°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: AX1800 Nano Wi-Fi 6 Wireless USB Adapter
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.0300 kg
• Warranty: 3 Years
