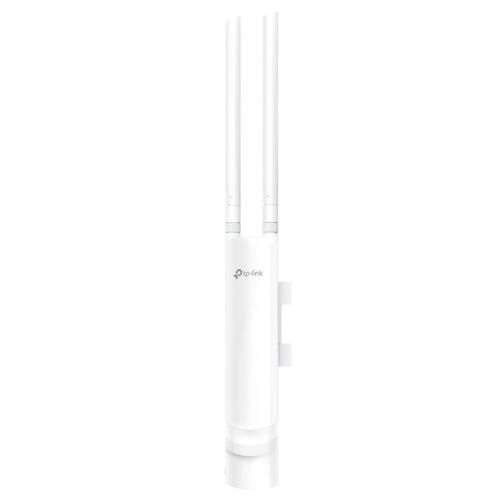

300Mbps Wireless N Outdoor Access Point

• Built for outdoor Wi-Fi applications
• Up to 300Mbps Wi-Fi with 2x2 MIMO technology
• High transmission power and high gain antennas provide a long-range coverage area
• Durable, weatherproof enclosure to withstand fair and foul weather
• Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
• Cloud centralized management and Omada app for ultra convenience and easy management
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• Supports management vlan for an enhanced network management

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11n (Wi-Fi 4)
• Bands: Single Band
• Wi-Fi Rating: N300
• Max Single Band Wi-Fi Rate: 300 Mbps
• Max Wired Transfer Rate: 10/100 Mbps
• Interface(s): 1 x Fast Ethernet (RJ-45) Port (Support Passive PoE)
• Wireless Standards: IEEE 802.11n/g/b
• Antenna(s): 2 x 3dBi External Omni waterproof
• Button(s): Reset
• Power Supply: 24VDC / 0.6A Passive PoE Supply

• Power Consumption: 3.12 W
• Dimensions: (WxDxH) 216 x 46 x 27 mm
• Weatherproof: Yes (Weatherproof)
• Frequency: 2.4GHz
• Wireless Functions: Multiple SSIDs(Up to 8 SSIDs)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Load Balance
  Rate Limit
  Reboot Schedule
  Wireless Schedule
  Wireless Statistics based on SSID/AP/Client
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  64/128/152-bit WEP / WPA / WPA2-Enterprise,
  WPA-PSK / WPA2-PSK"
• Wireless Range: Up to 200 meters
• Quality of Service: QoS(WMM)
• Management: Omada App
  Auranet Controller Software
  Centralized Management through controllers
  Cloud Access through controllers
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP
  System Logging Local/Remote Syslog
  Telnet
  SSH
  Web-based Management: HTTP/HTTPS
  L3 Management
  Multi-site Management
  Management VLAN
• Additional Features: See Overview
• Environment: Operating Temperature: -30°C~65°C (-22°F~149°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: "300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
  Passive PoE Adapter
  Power Cord
  Mounting Kits
  Waterproof Rubber Insert
  Waterproof Antennas
  Installation Guide"
• Package Type: Retail
• Package Weight: 0.9700 kg
• Warranty: 2 Years
