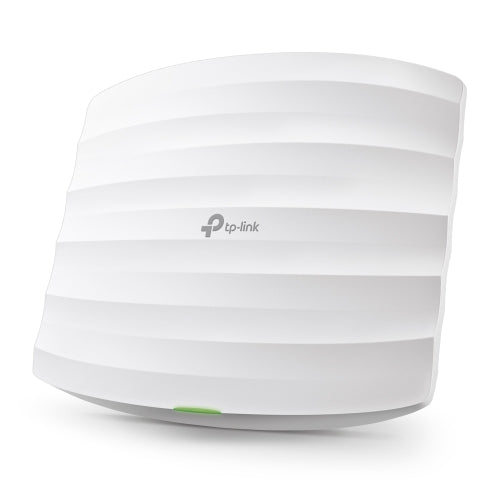

TP-Link EAP265 HD AC1750 Wireless Ceiling Mount Access Point

The TP-Link EAP265 HD delivers professional-grade wireless connectivity with AC1750 dual-band speeds, providing simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz. This ceiling mount access point is engineered for high-density environments including offices, schools, hotels, and retail spaces where reliable wireless coverage is essential.

High-Density Performance with MU-MIMO Technology

Built with MU-MIMO technology, the EAP265 HD handles multiple device connections simultaneously without performance degradation. Load balancing and professional-grade internal antennas (3 x 3.5dBi for 2.4GHz, 3 x 4dBi for 5GHz) ensure optimal signal distribution across your coverage area. Band steering and airtime fairness features intelligently manage client connections for maximum efficiency.

Omada SDN Cloud Management

Integration with Omada's Software Defined Networking platform provides centralized cloud management through the Omada app or web interface. Zero-Touch Provisioning simplifies deployment across multiple locations, while intelligent monitoring delivers real-time network insights. Manage access points, switches, and gateways from a single unified interface.

Flexible Power and Installation Options

The EAP265 HD supports both 802.3af/at standard PoE and Passive PoE (adapter included), eliminating the need for separate power outlets. Two Gigabit Ethernet ports provide high-speed wired connectivity, with one port supporting PoE input. The compact design (205.5 x 181.5 x 37.1 mm) with included mounting kits enables quick ceiling installation.

Enterprise-Grade Security and Guest Access

Configure up to 16 SSIDs (8 per band) with comprehensive security options including WPA/WPA2-Enterprise, 802.1X authentication, and wireless MAC filtering. Captive portal authentication supports multiple methods including SMS, Facebook Wi-Fi, and voucher systems. SSID to VLAN mapping, wireless isolation, and rogue AP detection provide additional network protection.

Seamless Roaming and Advanced Features

Users experience uninterrupted connectivity during video calls and streaming as they move between access points. Beamforming technology focuses signals toward connected devices, while automatic channel assignment and transmit power control optimize performance. QoS (WMM), rate limiting, and wireless scheduling provide granular network control.

Technical Specifications

Operating on IEEE 802.11ac/n/g/b/a standards, the EAP265 HD consumes just 12.3W of power and operates in temperatures from 0°C to 40°C. The package includes the access point, Gigabit Passive PoE adapter, power cord, mounting hardware, and installation guide. TP-Link backs this enterprise access point with a limited lifetime warranty.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
• Bands: Dual Band
• Wi-Fi Rating: AC1750
• Max Single Band Wi-Fi Rate: 1300 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 2 x Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE)
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Antenna(s): Internal Omni
  2.4GHz: 3 x 3.5dBi
  5GHz: 3 x 4dBi
• Button(s): Reset
• Power Supply: "802.3af/at PoE
  48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)"
• Power Consumption: 12.3 W
• Dimensions: 205.5 x 181.5 x 37.1 mm
• Weatherproof: No
• Frequency: 5GHz: Up to 1300Mbps
  2.4GHz: Up to 450Mbps
• Wireless Functions: See Overview
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  64/128/152-bit WEP / WPA / WPA2-Enterprise,
  WPA-PSK / WPA2-PSK"
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD
  Gigabit Passive PoE Adapter
  Power Cord
  Mounting Kits
  Installation Guide
• Package Type: Retail
• Package Weight: 1.0300 kg
• Warranty: Limited Lifetime
