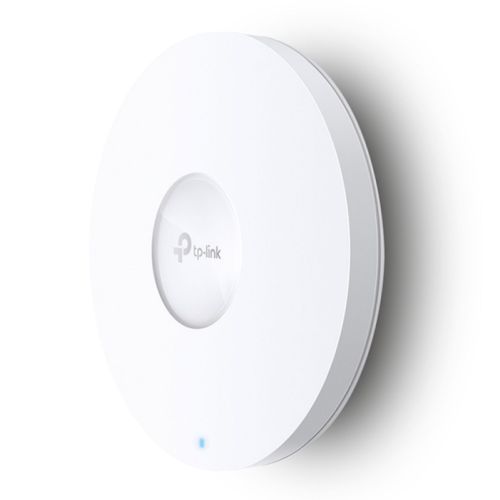

AX1800 Wireless Dual Band Ceiling Mount Access Point


• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
• High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• PoE Power Supply: With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1200 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet Port
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Antenna(s): Internal Omni
  2.4 GHz: 2 x 4 dBi
  5 GHz: 2 x 5 dBi
• Button(s): Reset bhutton
• Power Supply: "802.3at PoE, 12V/1.5A DC, 48V Passive PoE"
• Power Consumption: 14.4 W
• Dimensions: 160 x 160 x 33 mm
• Weatherproof: No
• Frequency: 5GHz: Up to 1201Mbps
  2.4GHz: Up to 574Mbps
• Wireless Functions: Enable/Disable Wireless Radio
  Enable/Disable SSID Broadcast
  Guest Network
  Automatic Channel Assignment
  Transmit Power: Control Adjust transmit Power on dBm
  QoS (WMM)
  Seamless Roaming
  Mesh
  Beamforming
  MU-MIMO
• .: Rate Limit: Based on SSID/Client
  Load Balance
  Airtime Fairness
  Band Steering
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule
  Wireless Schedule
  Wireless Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Quality of Service: QoS(WMM)
• Management: "LED ON/OFF Control
  Management MAC Access Control
  Web-based Management
  Telenet
  SNMP: v1, v2c, v3
  SSH
  Restore & Backup
  Firmware update via Web
  NTP
  System Log
  Email Alerts"
• Additional Features: See Overview
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10% ~ 90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: EAP620 HD
  Power Adapter
  Ceiling/Wall Mounting Kits
  Installation Guide
• Package Type: Retail
• Package Weight: 0.8100 kg
• Warranty: Limited Lifetime
