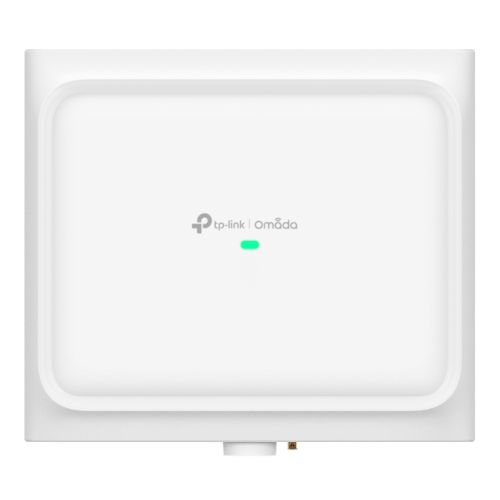

AX3000 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet (RJ-45)
  supports 802.3at PoE or 48V Passive PoE
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antenna(s): "Built-in Directional Antennas:
  2.4 GHz: 2x 8 dBi
  5 GHz: 2x 10 dBi
  Beamwidth: 120° Horizontal; 30° Vertical"
• Button(s): Reset
• Power Supply: 802.3at PoE
  48V Passive PoE
• Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Dimensions: (WxDxH) 207.5 x 58 x 230 mm
• Weatherproof: Yes (Weatherproof)
• Frequency: 2.4 GHz & 5 GHz
• EIRP: "CE: 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP)"
• Wireless Functions: "1024-QAM
  DL/UL OFDMA
  Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
  Enable/Disable Wireless Radio
  Enable/Disable SSID Broadcast
  Guest Network
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
  Omada Mesh
  Seamless Roaming(802.11k/v/r)
  Band Steering
  Load Balance
  Airtime Fairness
  Beamforming
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule"
• .: Wireless Schedule
  Wireless Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Wireless Range: Directional Ultra-Range Coverage
• Quality of Service: QoS (WMM)
• Management: "Omada App
  Restore & Backup
  NTP
  Centralized Management - Omada controller/app
  Cloud Access - requires Omada controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP: v1, v2c
  System Logging Local/Remote Syslog
  SSH
  Web-based Management
  Multi-site Management
  Zero-Touch Provisioning - requires Omada Cloud-Based controller"
• Additional Features: See Overview
• Environment: Operating Temperature: -30–70°C (-22–158°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: Access Point EAP650 D120-Outdoor
  Mounting Kits
  Installation Guide
• Package Type: Retail
• Package Weight: 2.1000 kg
• Warranty: 2 Years
