• Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.
• Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
• PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet (RJ-45)
  Support 802.3at PoE and Passive PoE
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Antenna(s): 2.4 GHz: 2x 4 dBi
  5 GHz: 2x 5 dBi
• Button(s): Reset
• Power Supply: 802.3at PoE
  48V Passive PoE (PoE Adapter Included)
• Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Dimensions: 280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)
• Weatherproof: Yes (Weatherproof)
• Frequency: 2.4 GHz & 5 GHz
• EIRP: "CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)"
• Wireless Functions: "1024-QAM
  4x Longer OFDM Symbol
  OFDMA
  Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  MU-MIMO
  Omada Mesh
  Seamless Roaming
  Band Steering
  Load Balance
  Airtime Fairness
  Beamforming
  Rate Limit
  Reboot Schedule
  Wireless Schedule
  Wireless Statistics based on SSID/AP/Client"
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Quality of Service: QoS (WMM)
• Management: "Omada App
  Centralized Management (hardware & software)
  Cloud Access
  Email Alerts
  Management MAC Access Control
  SNMP: v1, v2c
  System Logging Local/Remote Syslog
  SSH
  Web-based Management
  L3 Management
  Multi-site Management
  Management VLAN
  Zero-Touch Provisioning - Requires Cloud-Based Controller"
• Additional Features: See Overview
• Environment: Operating Temperature: -30–70°C (-22–158°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing

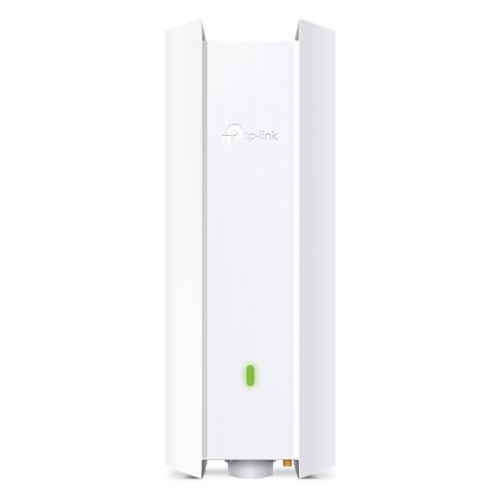

• Package Contents: Access Point EAP650-Outdoor
  Passive PoE Adapter
  Power Cord
  Mounting Kits
  Installation Guide
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 2 Years
