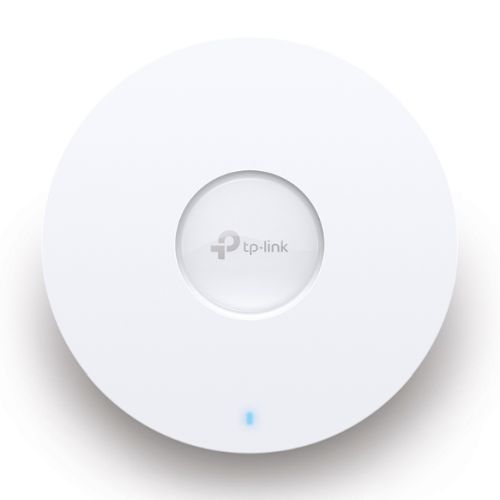

TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design
TP-LINK

TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design

Product SKU: AP-3000TPEAP653
Available:
Only 70 items in stock
70 items in stock
In stock
Pre-order
Out of stock
£79.95
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns



AX3000 Ceiling Mount WiFi 6 Access Point


  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
  • Ultra-Slim Design: 160 mm × 33.6 mm elegant design brings more agility.






Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.† Every application feels more fluid with drastically improved WiFi speeds.





Higher Efficiency for More Devices

WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.





Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.





Auto Channel Selection and Power Adjustment to Optimize Overall Performance*

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.





Easy Deployment & Higher Performance by Omada Mesh

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.





Ultra-Slim Design Brings More Agility

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.





Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments



Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Wi-Fi Rating: AX3000
  • Max Single Band Wi-Fi Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
  • Antenna(s): Internal Omni:
    2.4 GHz: 2x 4 dBi
    5 GHz: 2x 5 dBi
  • Button(s): Reset
  • Power Supply: 802.3at PoE
    12V DC (Power Adapter not included)
  • Power Consumption: 13.5 W
  • Dimensions: 160 x 160 x 33.6 mm
  • Weatherproof: No
  • Frequency: 5 GHz: Up to 2402 Mbps
    2.4 GHz: Up to 574 Mbps
  • EIRP: "<20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz, Band1 & Band2, EIRP)
    <27 dBm(5 GHz, Band3, EIRP)"
  • Wireless Functions: "1024-QAM
    4x Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    MU-MIMO
    HE160 (160 MHz Bandwidth)"
  • .: Seamless Roaming
    Omada Mesh§
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client
  • Security: "Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
  • Quality of Service: QoS(WMM)
  • Management: Omada App
    Centralized Management
    Cloud Access
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP
    System Logging Local/Remote Syslog
    SSH
    Web-based Management
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning
  • Additional Features: See Overview
  • Environment: Operating Temperature: 0–40 °C (32–104 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: EAP653
    Ceiling/Wall Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 0.7100 kg
  • Warranty: Limited Lifetime
