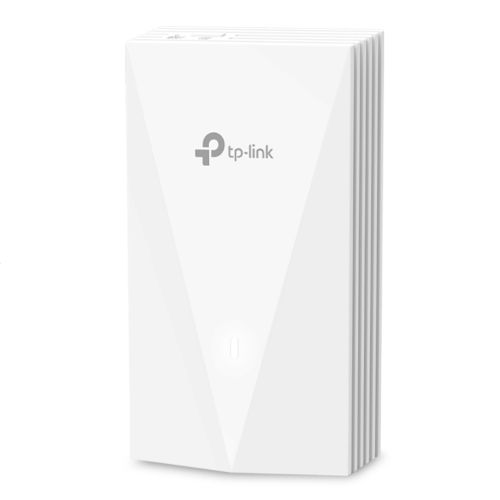

AX3000 Wall Plate WiFi 6 Access Point

• Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
• Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
• Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
• Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
• Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): "Uplink:
  1 x 10/100/1000 Mbps Ethernet Port

  Downlink:
  3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out"
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Antenna(s): 2 Dual-Band Antennas
  2.4 GHz: 2x 3 dBi
  5 GHz: 2x 5 dBi
• Protection: "Reset, LED"
• Power Supply: 802.3af/at PoE
• Power Consumption: "12W (802.3at PoE, PoE Out off)"
• Dimensions: 143 x 86 x 42.6 mm
• Weatherproof: No
• Frequency: 2.4 GHz and 5 GHz
• EIRP: "<20 dBm (2.4GHz, EIRP)
  <23 dBm (5GHz band1 & 2, EIRP)
  <26 dBm (5GHz band3, EIRP)"
• Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Seamless Roaming§
  Beamforming
  Rate Limit
  Load Balance
  Airtime Fairness
• .: Band Steering
  Reboot Schedule
  Wireless Schedule
  RADIUS Accounting
  MAC Authentication
  Wireless Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Quality of Service: QoS(WMM)
• Management: "Omada App
  Omada Hardware Controller (OC300)
  Omada Hardware Controller (OC200)
  Omada Software Controller
  Omada Cloud-Based Controller
  Cloud Access - Requires Controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  System Logging Local/Remote Syslog
  SSH
  Web-based Management: HTTP/HTTPS
  L3 Management
  Multi-site Management
  Management VLAN
  Zero-Touch Provisioning - Requires Cloud-Based Controller"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: AX3000 Wall Plate WiFi 6 Access Point
  Installation Guide
  Mounting Kits
• Package Type: Retail
• Package Weight: 0.4500 kg
• Warranty: Limited Lifetime
