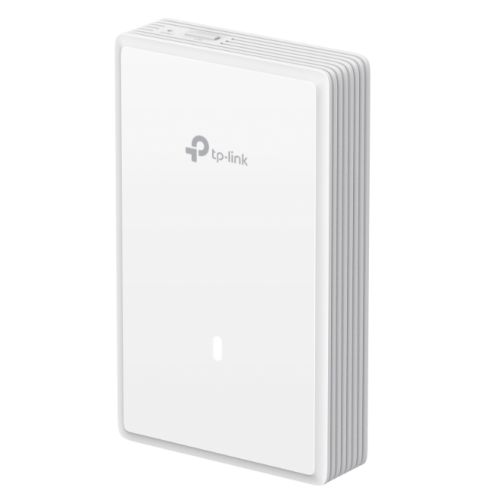

BE3600 Wall Plate Wi-Fi 7 Access Point

• BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
• 1x 2.5G PoE input port + 1x 2.5G pass-through port + 2x Gigabit RJ45 downlink ports.
• 160 MHz bandwidth enables many more simultaneous transmissions.
• Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralized management, Mesh, and Seamless Roaming.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11be (Wi-Fi 7)
• Bands: Dual Band
• Wi-Fi Rating: BE3600
• Max Single Band Wi-Fi Rate: 2882 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Interface(s): "Uplink: 1 x 2.5G Ethernet
  Downlink: 1 x 2.5G Ethernet + 2 x Gigabit Ethernet
  (The 2.5G port supports PoE pass-through - requires 802.3at/bt input. If power consumption of the APs downstream device exceeds 7W, the AP needs an 802.3bt input)"
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antenna(s): 4 x Internal Antennas:
  2.4GHz: 2x 4 dBi
  5GHz: 2x 5 dBi
• Button(s): "Reset, LED"
• Power Supply: 802.3at/bt PoE
• Power Consumption: 802.3bt: 17W (PoE Out support 15.4W)
  802.3at: 17W (PoE Out support 7W)
• Dimensions: 143 x 86 x 40 mm
• Weatherproof: No
• Frequency: 2.4GHz: Up to 688 Mbps
  5GHz: Up to 2882 Mbps
• EIRP: "<20 dBm (2.4GHz, EIRP)
  <23 dBm (5GHz, band 1 & band 2, EIRP)
  <25 dBm (5GHz, band 3, EIRP)"
• Wireless Functions: 6 SSIDs (Up to 8 SSIDs on each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Seamless Roaming
  Beamforming
  Rate Limit (Based on SSID/Client)
  Load Balance
  Airtime Fairness
  Band Steering
  Reboot Schedule
  Wireless Schedule
  RADIUS Accounting
  MAC Authentication
  Wireless Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Management: "Omada App
  Centralized Management (Cloud-Based, Hardware, Software Controller)
  Cloud Access - Requires controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP: v1, v2c, v3
  System Logging Local/Remote Syslog
  SSH
  Web-based Management
  L3 Management
  Multi-site Management
  Management VLAN
  Zero-Touch Provisioning (Requires Omada Cloud-Based Controller)"
• Additional Features: Wall Mounting (Kits included)
  Coverage: 50m sq.
  Concurrent Clients: 250+
  160 MHz bandwidth
  Multi-RUs

• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: BE3600 Wall Plate Wi-Fi 7 Access Point
  Installation Guide
  Mounting Kits
• Package Type: Retail
• Package Weight: 0.4800 kg
• Warranty: Limited Lifetime
