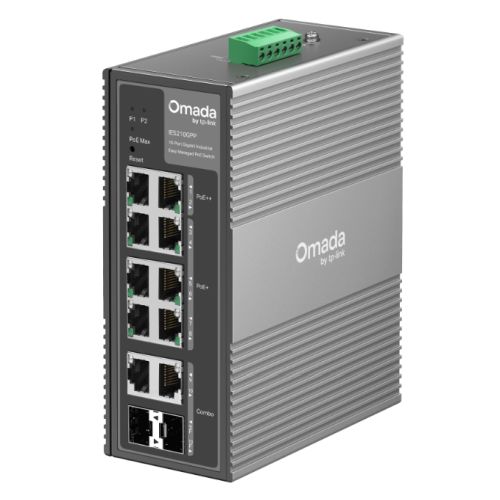

Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

• 8x Gigabit RJ45 Ports (2x PoE++, 6x PoE+)
• 2x Gigabit Combo RJ45/SFP Slots
• 240W Power Budget with up to 60W for Each PoE++ Port
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• 1+1 Redundant Power Input - Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.
• Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Description

Specification

• Rackmountable: No
• Managed: Yes
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 2 x 10/100/1000 Mbps PoE++ RJ45 Ports
  6 x 10/100/1000 Mbps PoE+ RJ45 Ports
  2 x Gigabit SFP/RJ45 Combo Slots
  Auto-Negotiation/Auto MDI/MDIX
• PoE Ports (RJ45): "Standard: 802.3af/at/bt compliant
  PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port
  PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port

  PoE Budget:
  - 60W (Input: 12V / 7.2A - 21V / 3.7A))
  - 120W (Input: 21V / 6.7A - 46V / 3.1A)
  - 240W (Input: 46V / 5.7A - 57V / 4.4A)"
• Switching Capacity: 20 Gbps
• Power Supply: 12-57V 1+1 Redundant DC Power Input
• Dimensions: 155 x 120 x 60 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 14.88 Mpps
• Jumbo Frame: 15 KB
• Additional Features: Professional Industrial-Grade Design
  Durable IP40 Aluminium Casing
  Fanless
  DIN-rail mounting
  Wall mounting
  Physical Security Lock
  6kV Lighting Protection
• Quality of Service: 802.1p DSCP Priority
  8 Priority Queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 Features:
  Link Aggregation
  Loopback Detection
  Flow Control
  Mirroring
  Port Statistics
  802.1ab LLDP
  Spanning Tree

  L2 Multicast:
  IGMP Snooping
• VLAN: MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
• Management: "Omada App:
  Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Centralized Management:
  Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller

  Cloud Access:
  Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Zero-Touch Provisioning:
  Requires Omada Cloud-Based Controller"
• .:
  Management Features:
  Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Unified Configuration
• Environment: Operating Temperature: 0°C ~ 75°C
  Storage Temperature: -40°C ~ 85°C
  Operating Humidity: 5%~95% non-condensing
  Storage Humidity: 5%~95% non-condensing
• Package Contents: IES210GPP
  DIN-Rail Mounting Bracket
  Wall-Mounting Plates
  Installation Guide
• Package Type: Retail
• Package Weight: 1.4200 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
