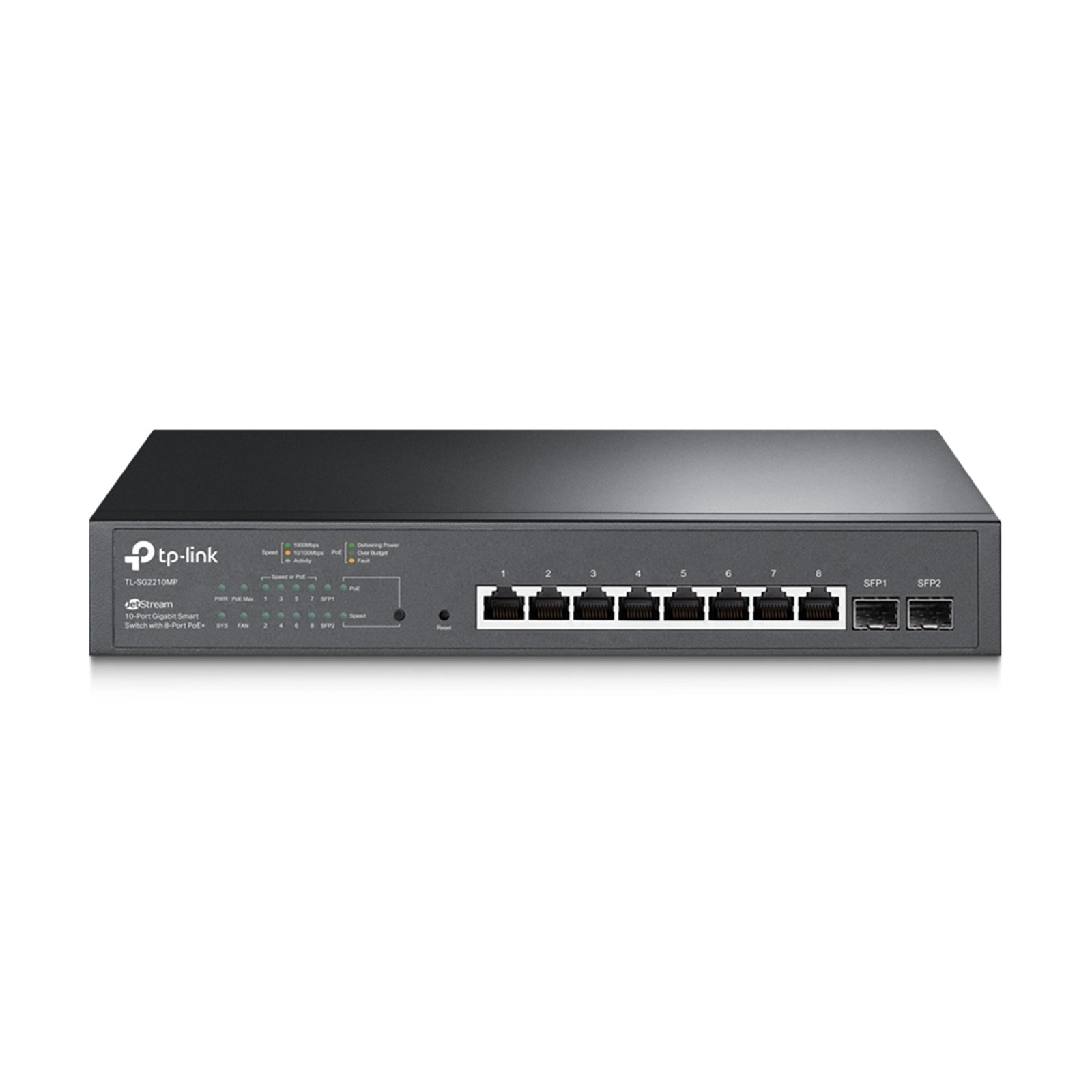

TP-Link JetStream TL-SG2210MP Smart PoE+ Switch

The TL-SG2210MP delivers enterprise-grade network performance with 8 gigabit PoE+ ports and 2 SFP slots in a compact metal chassis. With 150W total PoE budget and 802.3at/af compliance, this smart switch powers IP cameras, VoIP phones, wireless access points, and other PoE devices without additional power supplies.

High-Performance Gigabit Connectivity

All 8 RJ45 ports support 10/100/1000 Mbps speeds with Auto-Negotiation and Auto MDI/MDIX. Two additional 100/1000 Mbps SFP slots enable fiber uplinks for extended network reach. The switch delivers 20 Gbps switching capacity and 14.9 Mpps packet forwarding rate, ensuring smooth data transmission across your network.

Integrated Omada SDN Management

Seamlessly integrate into TP-Link's Omada Software Defined Networking ecosystem for centralized cloud management. Zero-Touch Provisioning (ZTP) enables rapid deployment, while the Omada app provides remote monitoring and configuration from anywhere. Manage multiple sites and devices through a single interface.

Advanced Security Features

Protect your network with comprehensive security protocols including IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X authentication, and Radius Authentication. Multiple IEEE standards compliance ensures compatibility with existing infrastructure.

Optimized for Voice and Video

L2/L3/L4 Quality of Service (QoS) and IGMP snooping prioritize bandwidth for latency-sensitive applications like VoIP and video surveillance. The 4.1 Mbit packet buffer and 9KB jumbo frame support maintain consistent performance under heavy loads.

Rack-Mountable Design

The durable metal enclosure measures 11.6 x 7.1 x 1.7 inches (294 x 180 x 44 mm) and includes a rackmount kit for standard 19-inch racks. A physical security lock prevents unauthorized access. Single fan cooling keeps operating temperatures between 0–50°C while maintaining quiet operation at just 12.2W power consumption without PoE devices connected.

150 W PoE Budget
8x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.

Full Gigabit Ports
8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.

Specifications

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface
8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2x 100/1000 Mbps SFP Slots

Network Media
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF

Fan Quantity
1

Physical Security Lock
Yes

Power Supply
100-240V AC, 50/60Hz

PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 150 W

PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 150 W

Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
12.2 W (110 V / 60 Hz with no PD connected)
173.9 W (110 V / 60 Hz with 150 W PD connected)

Max Heat Dissipation
41.63 BTU/h (with no PD connected)
539.35 BTU/h (with 150 W PD connected)

Switching Capacity
20 Gbps

Packet Forwarding Rate
14.9 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9 KB

Certification
CE, FCC, RoHS

Package Contents
TL-SG2210MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0–50 C (32–122 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
