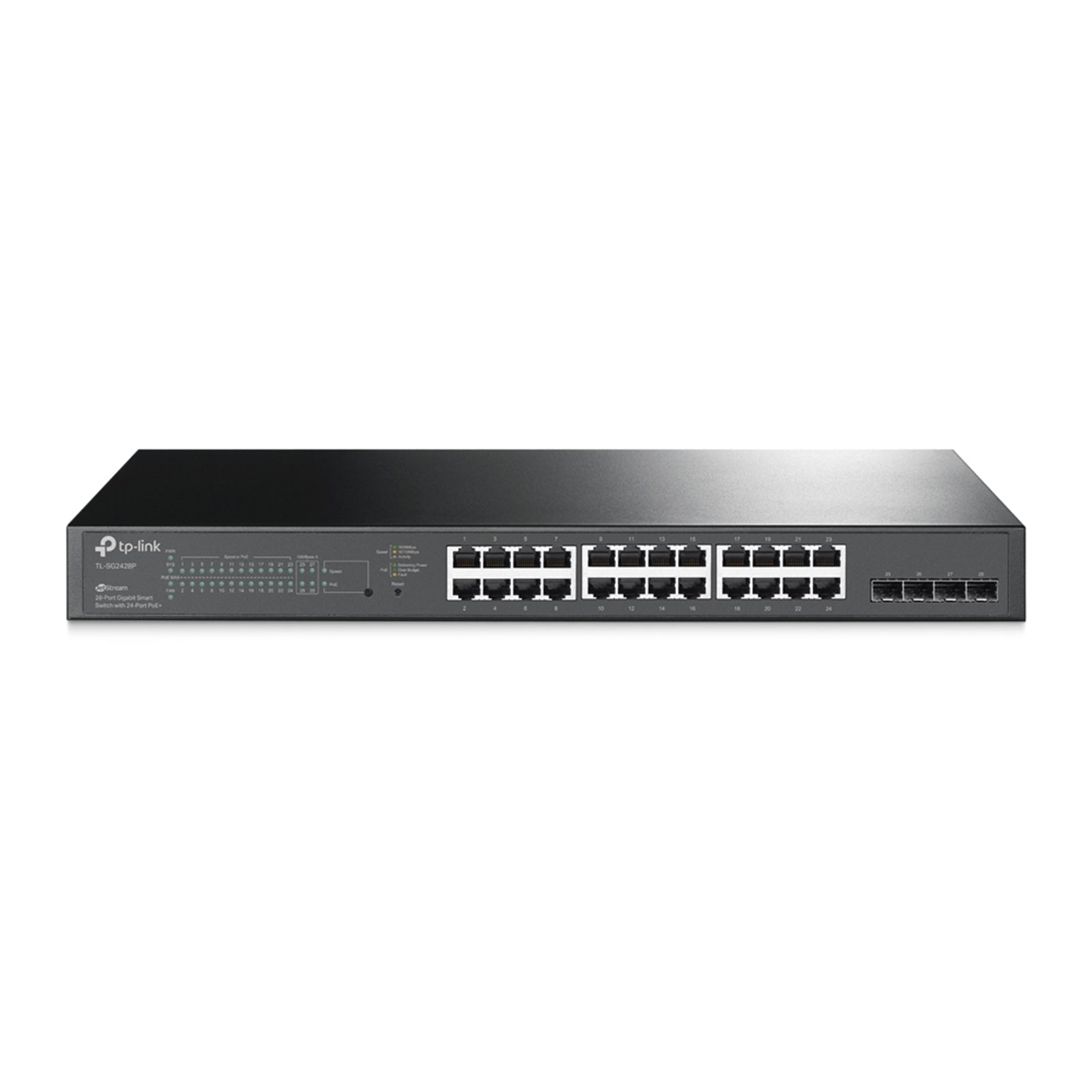

TP-Link JetStream TL-SG2428P Gigabit Smart PoE Switch

The TP-Link JetStream TL-SG2428P delivers enterprise-grade network performance with 24 PoE+ ports and a 250W power budget. This 28-port managed switch combines full gigabit connectivity with advanced PoE capabilities, making it ideal for businesses deploying IP cameras, wireless access points, and VoIP phones.

Power Over Ethernet Performance

With 24 ports supporting 802.3at/af-compliant PoE+, the TL-SG2428P provides up to 250W total power budget. Each PoE+ port delivers power and data simultaneously through a single cable, eliminating the need for separate power supplies for connected devices. The switch intelligently manages power distribution across all ports to ensure optimal performance.

Network Connectivity and Performance

The switch features 24 gigabit PoE+ RJ45 ports plus 4 gigabit SFP slots for fiber uplinks. With 56 Gbps switching capacity and 41.7 Mpps packet forwarding rate, it handles demanding network traffic efficiently. The 8K MAC address table and 4.1 Mbit packet buffer memory ensure smooth data transmission even under heavy loads. Support for 9KB jumbo frames optimizes large file transfers.

Omada SDN Integration

Integration with TP-Link's Omada Software Defined Networking platform enables Zero-Touch Provisioning (ZTP) and centralized cloud management. Network administrators can monitor and configure the switch remotely through the Omada cloud platform or mobile app, streamlining network deployment and maintenance across multiple locations.

Advanced Security Features

The TL-SG2428P implements comprehensive security protocols including IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X authentication, and RADIUS authentication. These features protect your network infrastructure from unauthorized access and malicious attacks.

Quality of Service and Routing

L2/L3/L4 QoS prioritizes voice and video traffic to ensure consistent performance for real-time applications. IGMP snooping optimizes multicast traffic delivery. Static routing capabilities allow efficient internal traffic management, reducing unnecessary load on core routers. Full IPv6 support includes dual IPv4/IPv6 stack, MLD snooping, and IPv6 neighbor discovery.

Technical Specifications

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface: 24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 4 x Gigabit SFP Slots

PoE Specifications: 802.3at/af compliant, 24 PoE+ ports, 250W total power budget

Dimensions: 17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm)

Power Consumption: 32.1W (no PD connected), 308.6W (250W PD connected)

Operating Environment: 0–50°C temperature, 10–90% RH non-condensing humidity

Package Contents: TL-SG2428P switch, power cord, installation guide, rackmount kit, rubber feet

The TL-SG2428P is rack-mountable with included hardware and supports Microsoft Windows, MAC OS, NetWare, UNIX, and Linux operating systems. CE, FCC, and RoHS certified.
