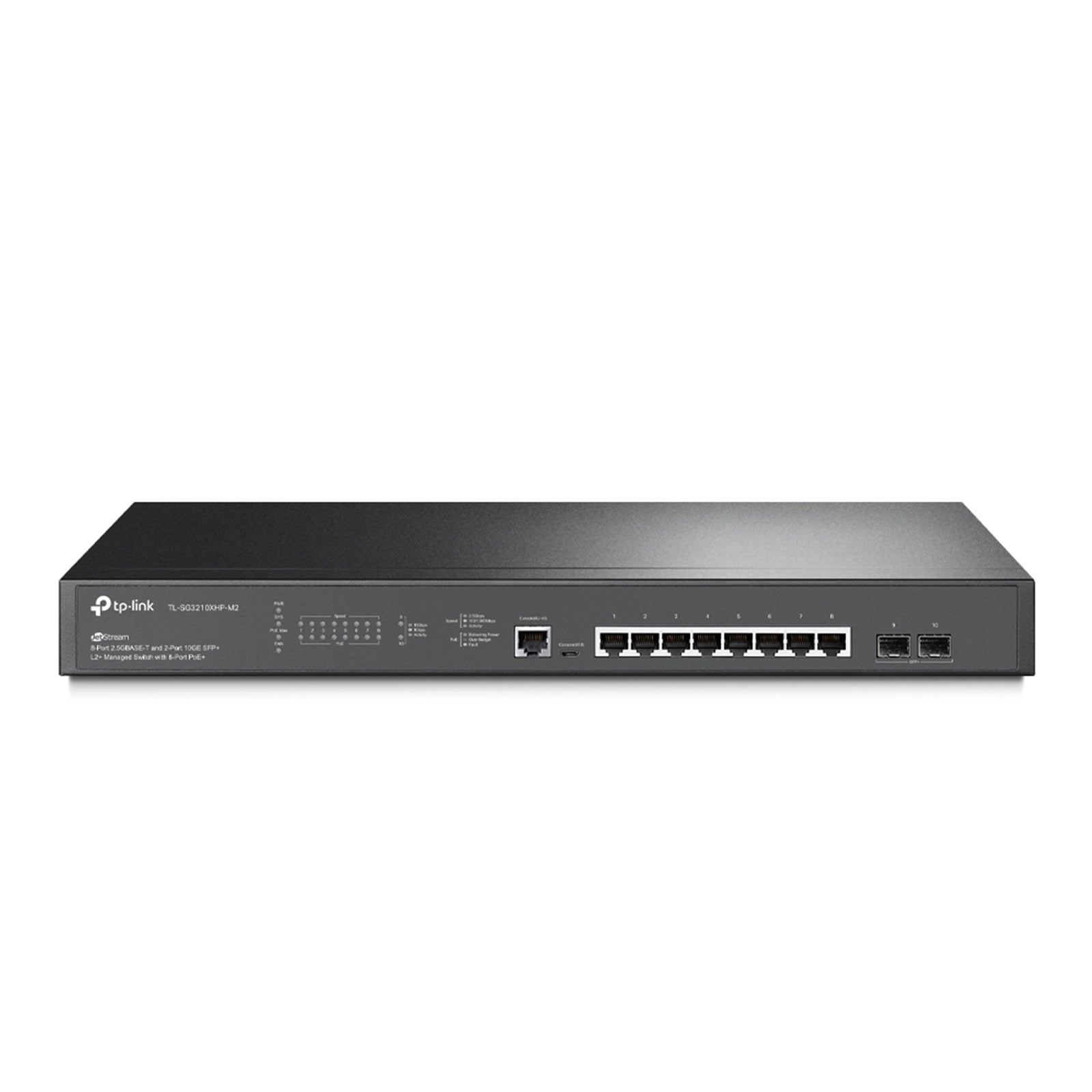

TP-Link JetStream TL-SG3210XHP-M2 Managed Switch

The TP-Link TL-SG3210XHP-M2 delivers multi-gigabit performance with 8 x 2.5GBASE-T ports and 2 x 10GE SFP+ uplinks, designed specifically for modern network infrastructure requiring high-bandwidth connectivity. With 240W PoE+ budget across all 8 ports, this L2+ managed switch provides both power and data through a single cable, simplifying deployment of WiFi 6 access points and IP cameras.

Multi-Gigabit PoE+ Performance

Each of the 8 x 2.5 Gbps ports supports 802.3at/af PoE+ standards, delivering up to 240W total power budget. This configuration eliminates the gigabit bottleneck that limits WiFi 6 access points, allowing them to operate at full capacity. The 2 x 10 Gbps SFP+ slots provide 80 Gbps switching capacity with 59.52 Mpps packet forwarding rate, ensuring non-blocking performance for high-traffic environments.

Omada SDN Integration

Full integration with TP-Link's Omada Software-Defined Networking platform enables centralized cloud management through the Omada Hardware Controller (OC200/OC300), Software Controller, or Cloud-Based Controller. Zero-Touch Provisioning (ZTP) streamlines deployment, while the Omada app provides remote monitoring and configuration from any location.

Advanced L2+ and L3 Features

Static routing capabilities support 16 IPv4/IPv6 interfaces with 48 static routes, enabling efficient internal traffic management. The switch supports up to 4K VLAN groups with 802.1Q tagging, MAC VLAN, Protocol VLAN, and QinQ for complex network segmentation. Link aggregation supports 802.3ad LACP with up to 8 groups containing 8 ports each.

Enterprise Security

Comprehensive security features include IP-MAC-Port-VID Binding with 512 entries, DHCP Snooping, ARP Inspection, and IPv4/IPv6 Source Guard. 802.1X authentication with RADIUS/TACACS+ integration controls network access at the port level. ACL filtering operates across L2-L4, restricting traffic based on MAC address, IP address, TCP/UDP ports, or VLAN ID.

Quality of Service and Multicast

Eight priority queues with 802.1p CoS/DSCP prioritization ensure voice and video traffic receives appropriate bandwidth allocation. IGMP v1/v2/v3 Snooping with Fast Leave and IGMP Authentication optimizes multicast stream delivery. MLD v1/v2 Snooping provides equivalent functionality for IPv6 multicast traffic.

Technical Specifications

The rack-mountable design measures 17.3 x 7.1 x 1.7 inches with dual fans for cooling. Power consumption ranges from 17.24W without connected devices to 291.49W with full 240W PoE load. The 16K MAC address table and 12 Mbit packet buffer memory support demanding enterprise environments. Jumbo frame support up to 9KB accommodates high-throughput applications.

Management options include web-based GUI, CLI via console/telnet, and SNMP v1/v2c/v3 with RMON support. The switch operates in temperatures from 0–50°C with 10–90% non-condensing humidity. Package includes power cord, rackmount kit, rubber feet, and quick installation guide.
