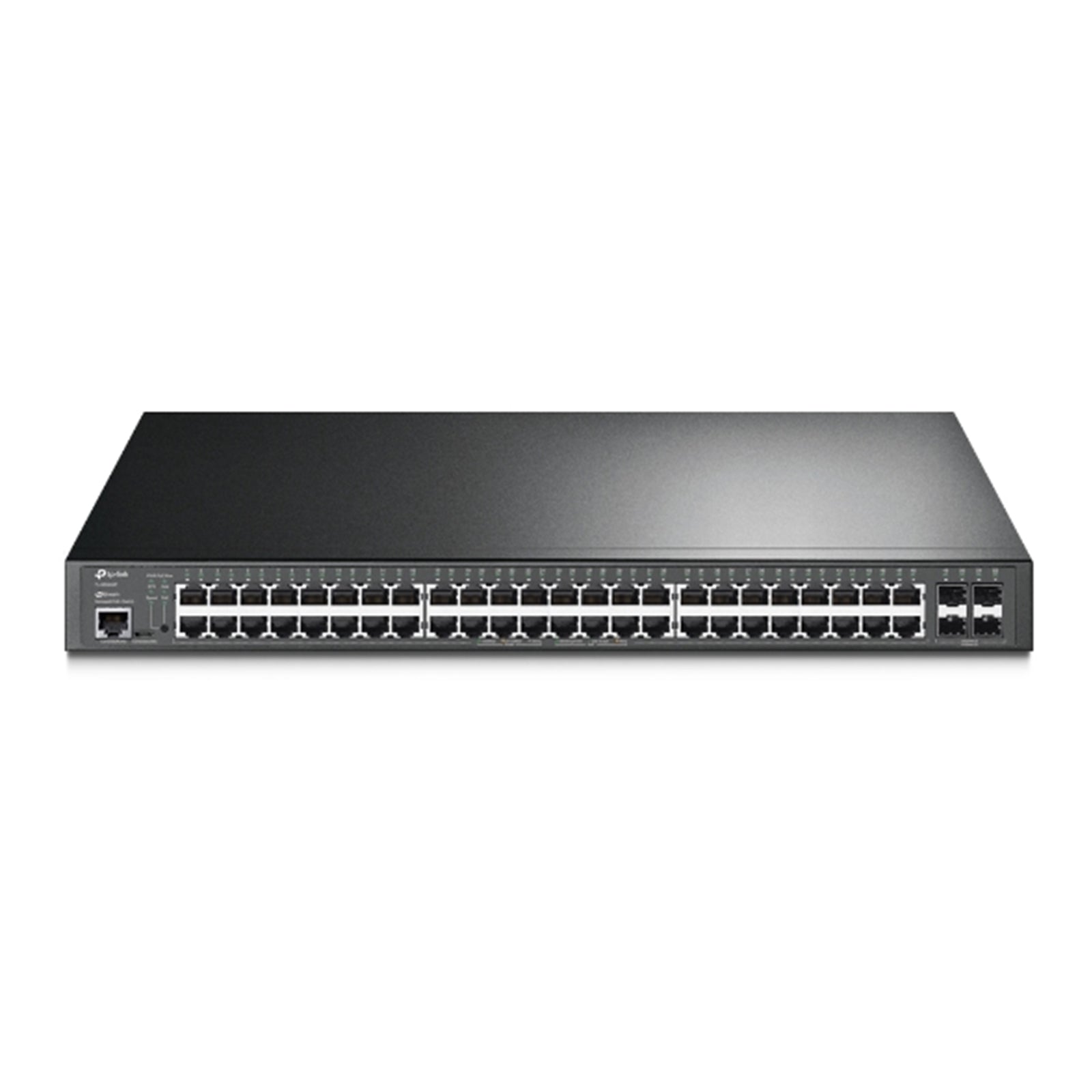

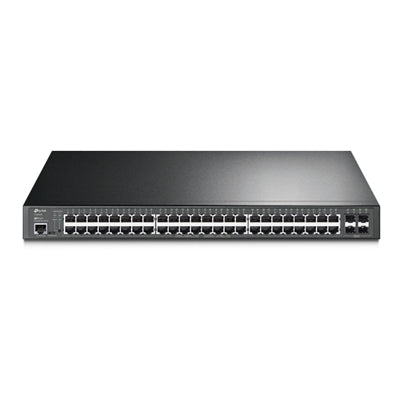

TP-Link JetStream TL-SG3452P 52-Port Gigabit L2+ Managed Switch

The TP-Link TL-SG3452P JetStream managed switch delivers enterprise-grade networking with 48 Gigabit PoE+ ports and a 384W power budget. This 1U rackmount switch provides the infrastructure needed for IP surveillance systems, VoIP deployments, and wireless access point installations.

High-Capacity PoE+ Power Distribution

With 48 ports supporting 802.3at/af PoE+ (up to 30W per port) and a total 384W power budget, the TL-SG3452P powers IP cameras, wireless access points, and VoIP phones without additional power adapters. The switch includes 4 Gigabit SFP slots for fiber uplinks, delivering 104 Gbps switching capacity for high-bandwidth applications.

Omada SDN Integration for Centralized Control

Integration with TP-Link's Omada Software Defined Networking platform enables Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring across your network. Manage the switch through cloud access, the Omada mobile app, or standalone via web interface, CLI (Console Port, Telnet, SSH), SNMP, and RMON.

Layer 2+ Managed Features

Static routing capabilities help direct internal traffic efficiently, while L2/L3/L4 QoS and IGMP snooping optimize voice and video applications. The switch supports comprehensive security protocols including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication.

Technical Specifications

Network Ports: 48x 10/100/1000 Gigabit RJ-45 PoE+, 4x Gigabit SFP slots
PoE Budget: 384W total (30W maximum per port)
Switching Capacity: 104 Gbps
Form Factor: 1U Rackmount (440 x 44 x 330 mm)
Power Consumption: 485.4W maximum (with 384W PD connected)
Management Ports: 1x Micro-USB Console, 1x RJ45 Console
Standards: IEEE 802.3af/at, 802.1x, 802.3ad (LACP), 802.1Q VLAN, 802.1d/w/s spanning tree protocols

Deployment Applications

Ideal for IP surveillance networks, hospitality networks, educational institutions, retail environments, and office deployments requiring centralized management of both wired and wireless infrastructure. The dual image feature provides firmware backup for enhanced reliability.

• Type: Managed Switch
• Speed: N/A
• PoE: Yes
