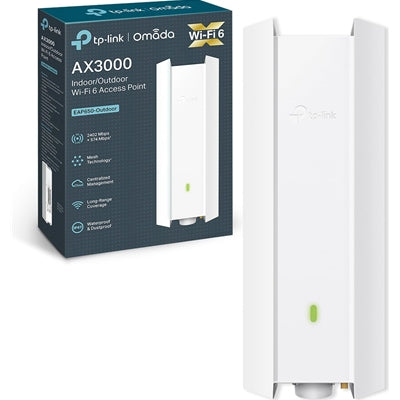

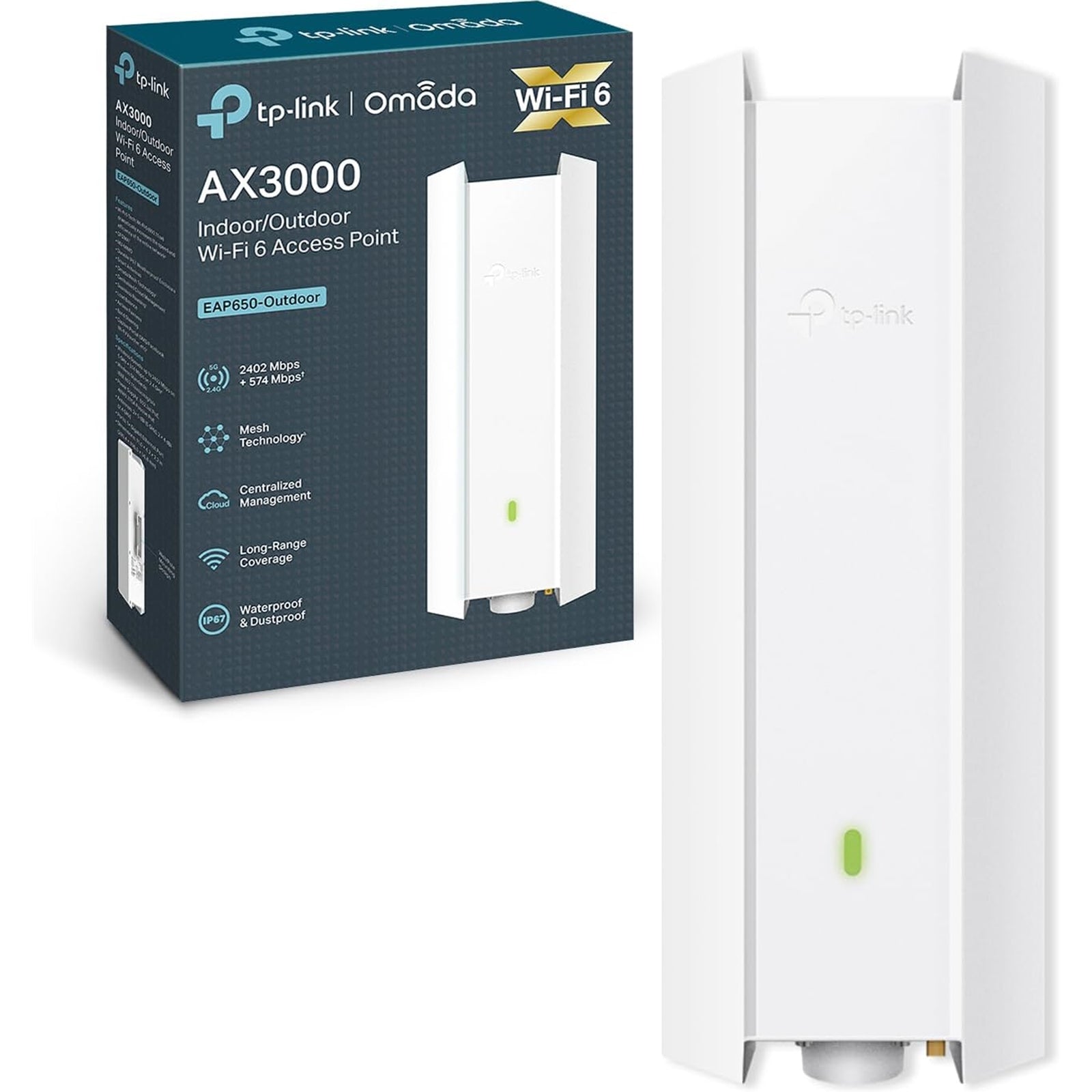

TP-Link Omada EAP650-Outdoor AX3000 WiFi 6 Access Point

The EAP650-Outdoor delivers enterprise-grade wireless connectivity with WiFi 6 technology, purpose-built for demanding outdoor and indoor environments. This access point combines IP67 weatherproof protection with dual-band speeds up to 3 Gbps, making it suitable for stadiums, campuses, warehouses, and outdoor venues requiring reliable high-speed connectivity.

WiFi 6 Performance and Efficiency

Powered by 802.11ax technology, the EAP650-Outdoor achieves speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz bands. OFDMA and MU-MIMO technologies enable simultaneous data transmission to multiple devices, reducing network congestion and latency. The 160 MHz channel bandwidth doubles data throughput during peak usage, while 1024-QAM modulation increases data density for faster file transfers and streaming.

Weatherproof Construction and Range

The IP67-rated enclosure protects against dust ingress and water immersion, ensuring operation in rain, snow, and extreme temperatures. High-power amplifiers combined with 4 dBi (2.4 GHz) and 5 dBi (5 GHz) antennas extend coverage across large outdoor areas. Smart Antenna technology uses both horizontal and vertical polarization, with intelligent algorithms selecting optimal antenna configurations to minimize interference and maximize signal strength.

Omada SDN Integration

Centralized management through Omada Software Controller, Hardware Controllers (OC200/OC300), or Cloud-Based Controller enables network-wide configuration from a single interface. Zero-Touch Provisioning simplifies deployment across multiple sites. The system supports up to 16 SSIDs (8 per band), VLAN mapping, and granular access controls. Remote monitoring via the Omada app provides real-time statistics and email alerts.

Flexible Power and Installation

Supports both 802.3at PoE+ and Passive PoE (adapter included), eliminating the need for separate power outlets. The single Gigabit Ethernet port handles both data and power with 12.5W consumption. Included mounting kits enable pole or wall installation. Omada Mesh creates wireless backhaul between access points, reducing cabling requirements in challenging deployment scenarios.

Advanced Wireless Features

Seamless roaming maintains connections as users move between access points. Band steering directs dual-band devices to less congested frequencies. Load balancing distributes clients across multiple APs to prevent overload. The system handles 250+ concurrent clients with WPA3-Enterprise security, 802.1X authentication, and rogue AP detection. Captive portal authentication integrates with existing network infrastructure.

Superior WiFi 6 Speeds
Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.

Higher Network Efficiency
Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.

160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160.

Long-Range Coverage
Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

Omada Mesh Technology
Enables wireless connectivity between access points for extended range and flexible deployment.

Stay Smooth with Seamless Roaming
Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.

PoE Powered
Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.

Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.

Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.

Specifications

Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)

Power Consumption
12.5W (802.3at PoE or Passive PoE)

Dimensions
280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Weatherproof Enclosure
IP67

Mounting
Pole/Wall Mounting (Kits included)

Wireless Client Capacity
250+

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz, 5 GHz

Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power
<20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Email Alerts
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c

System Logging Local/Remote Syslog
Yes

SSH
Yes

Web-Based Management
Yes

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

Certification
CE, FCC, RoHS

Package Contents
Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

• Type: Access Point
• Speed: 3000 Mbps
• PoE: Yes
