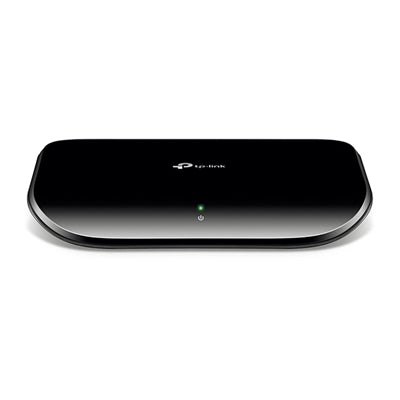

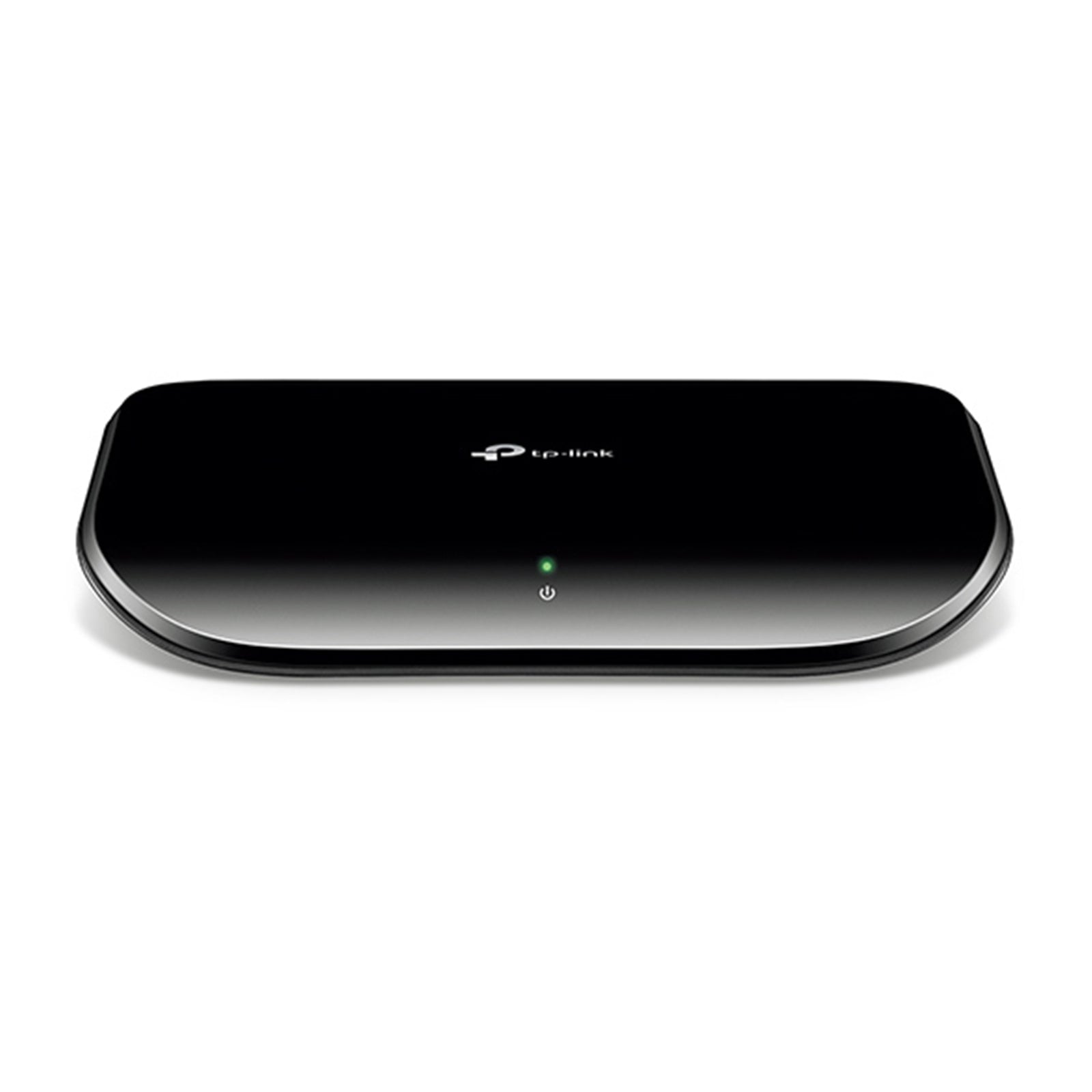

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch

The TP-Link TL-SG1005D provides a straightforward upgrade path to gigabit networking for home offices and small businesses. This 5-port unmanaged switch delivers 10/100/1000Mbps speeds across all ports, enabling faster file transfers and improved network performance without complex configuration.

Gigabit Performance for Network Expansion

Equipped with 5 auto-negotiation RJ45 ports, the TL-SG1005D expands network capacity while supporting instant transfer of large files. The switch automatically detects connection speeds and adjusts for optimal performance, making it suitable for bandwidth-intensive applications including graphics, CAD files, and multimedia content transfer.

Energy-Efficient Green Technology

The TL-SG1005D incorporates green ethernet technology that reduces power consumption through intelligent features. The switch automatically powers down idle ports when devices are disconnected, and adjusts power output based on cable length to minimize energy waste. Maximum power consumption is just 3.1W, making it an eco-friendly networking solution.

Plug-and-Play Installation

No configuration required. The TL-SG1005D features auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port automatically senses link speed (10, 100, or 1000 Mbps) and adjusts accordingly. The fanless design ensures silent operation, ideal for desktop deployment in quiet environments.

Technical Specifications

Hardware Features: 5 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX. Fanless design with external power adapter (5VDC/0.6A). Compact dimensions: 5.5 x 3.5 x 0.9 inches.

Software Features: Store-and-forward transmission method, 802.3x flow control, back pressure support, and 802.1p/DSCP QoS (V7 and later versions).

Environmental Specifications: Operating temperature 0°C to 40°C, storage temperature -40°C to 60°C. Operating humidity 10% to 90% non-condensing.

Package Contents: TL-SG1005D switch, power adapter, and installation guide. FCC, CE, and RoHS certified.

• Ports: 5 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
