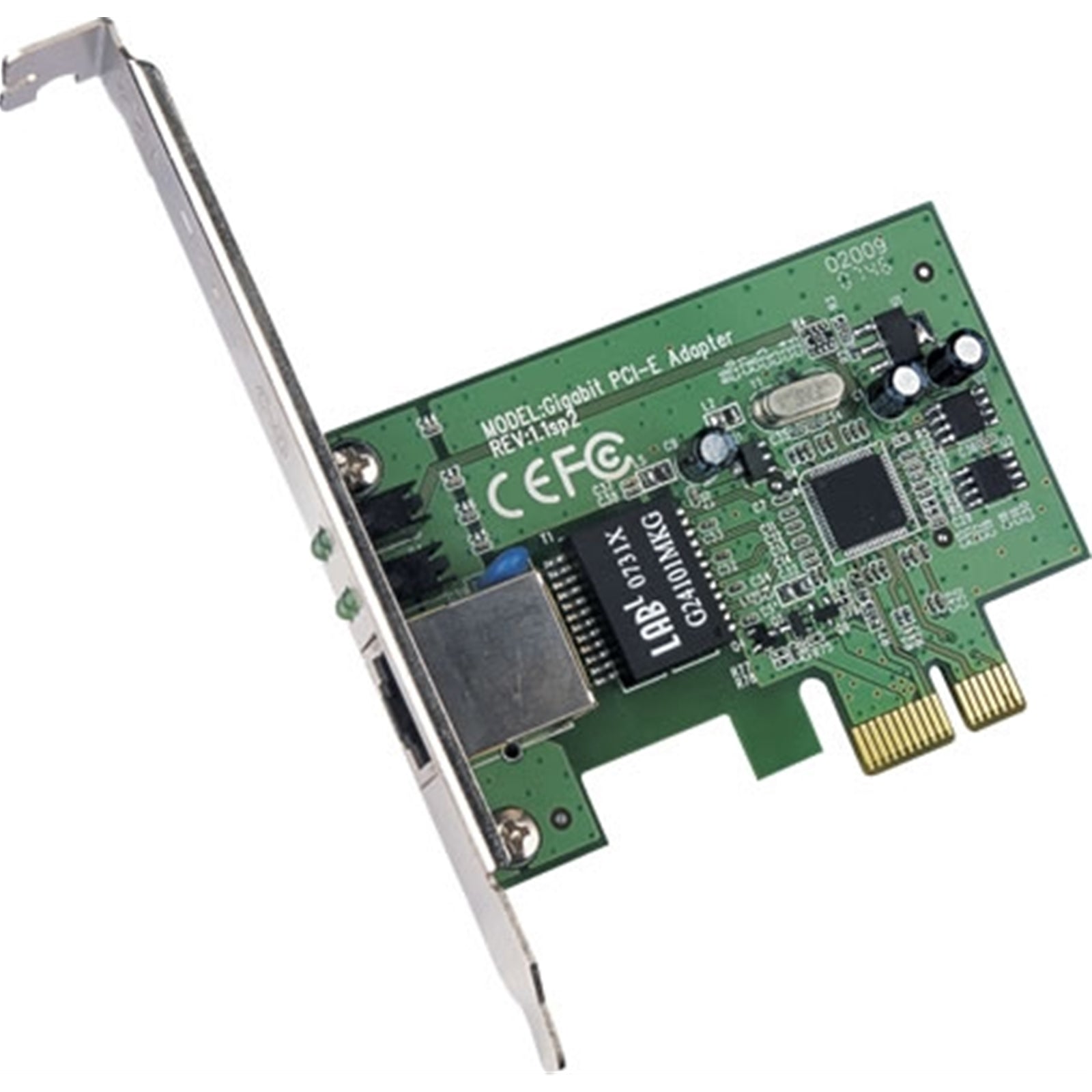

TP-Link TG-3468 Gigabit PCI Express Network Adapter

The TG-3468 is a high-performance 10/100/1000Mbps Gigabit PCIe Network Adapter designed for the PCI Express Bus Architecture. This 32-bit adapter delivers reliable, high-speed network connectivity for desktop computers requiring Gigabit Ethernet performance.

High-Speed Network Performance

Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab specifications, the TG-3468 supports automatic speed negotiation across 10/100/1000Mbps network speeds. The adapter achieves 10/100/1000Mbps in half-duplex mode and 20/200/2000Mbps in full-duplex mode, ensuring optimal data transfer rates for your network environment.

Advanced Network Features

The TG-3468 includes IEEE 802.3x flow control for full-duplex operation and backpressure support for half-duplex mode, preventing packet loss during high-traffic conditions. Wake-on-LAN technology enables remote computer activation, while power down/link down power saving features reduce energy consumption during idle periods.

Additional protocol support includes IEEE 802.1p Layer 2 Priority Encoding and IEEE 802.1q VLAN tagging for enhanced network management and traffic prioritization. The adapter supports CSMA/CD and TCP/IP protocols for seamless network integration.

LED Status Indicators

Three dedicated LED indicators provide real-time network status monitoring: 1000Mbps Link/Act, 100Mbps Link/Act, and 10Mbps Link/Act, allowing instant verification of connection speed and network activity.

Technical Specifications

Specification:

Product Description:
TP-LINK (TG-3468) Gigabit PCI Express Network Adapter

Adapter Type:
PCI Express Adapter

Interface(s):
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Transmission Method:
Wired

Max Data Transfer Rate:
10/100/1000 Mbps

Standards and Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

LED:
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control:
IEEE 802.3x Flow Control (Full-Duplex)

Environment :
Operating Temperature:
0C~40C (32F~104F)

Storage Temperature:
-40C~70C (-40F~158F)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90

Package Contents:
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide% non-condensing

Features

Interface
32-bit PCI Express / 1 10/100/1000Mbps RJ45 port

Data Rates
10/100/1000Mbps Half-Duplex / 20/200/2000Mbps Full-Duplex

LED Indicator
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)

Supports
Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit

• Internal/External: Internal
• Connection: PCIe
