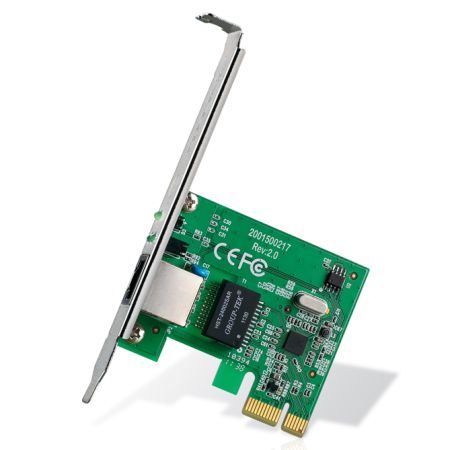

TP-LINK TG-3468 Gigabit PCI Express Network Adapter

The TP-LINK TG-3468 is a 10/100/1000Mbps Gigabit PCIe Network Adapter designed for high-speed connectivity through the PCI Express Bus Architecture. This adapter provides reliable wired network performance with full compliance to IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab specifications.

Key Features

• 10/100/1000Mbps PCIe Adapter for flexible network speeds
• 32-bit PCIe interface that saves valuable chassis space
• Wake-on-LAN functionality for convenient remote management
• Low profile bracket included for compact system builds

Performance and Compatibility

The TG-3468 supports automatic network speed negotiation between 10/100/1000Mbps, ensuring optimal performance based on your network infrastructure. With IEEE 802.3x flow control in full-duplex mode, the adapter maintains stable data transmission even under heavy network loads. The adapter features three LED indicators for 1000Mbps, 100Mbps, and 10Mbps Link/Activity status, providing clear visual feedback of connection speed and network activity.

Advanced Network Management

Wake-on-LAN technology enables remote power management of your system over the network, making it ideal for enterprise environments and home users who need remote access capabilities. The adapter supports VLAN tagging (802.1q) and priority queuing (802.1p) for advanced network configurations.

Technical Specifications

Built with a 32-bit PCI Express interface and single RJ45 port, the TG-3468 delivers gigabit speeds while maintaining compatibility with existing 10/100Mbps networks. The adapter operates reliably in temperatures ranging from 0°C to 40°C and supports CSMA/CD and TCP/IP protocols for universal network compatibility.

Description

Specification

• Adapter Type: PCI Express Adapter
• Interface(s): 32-bit PCI Express
  1 10/100/1000Mbps RJ45 port
• Transmission Method: Wired
• Bands: Single Band
• Max Data Transfer Rate: 10/100/1000 Mbps
• Standards and Protocols: "IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP"
• LED: "1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act"
• Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Gigabit PCI Express Network Adapter TG-3468
  Low Profile Bracket
  Resource CD
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.1000 kg
• Warranty: 3 Years
