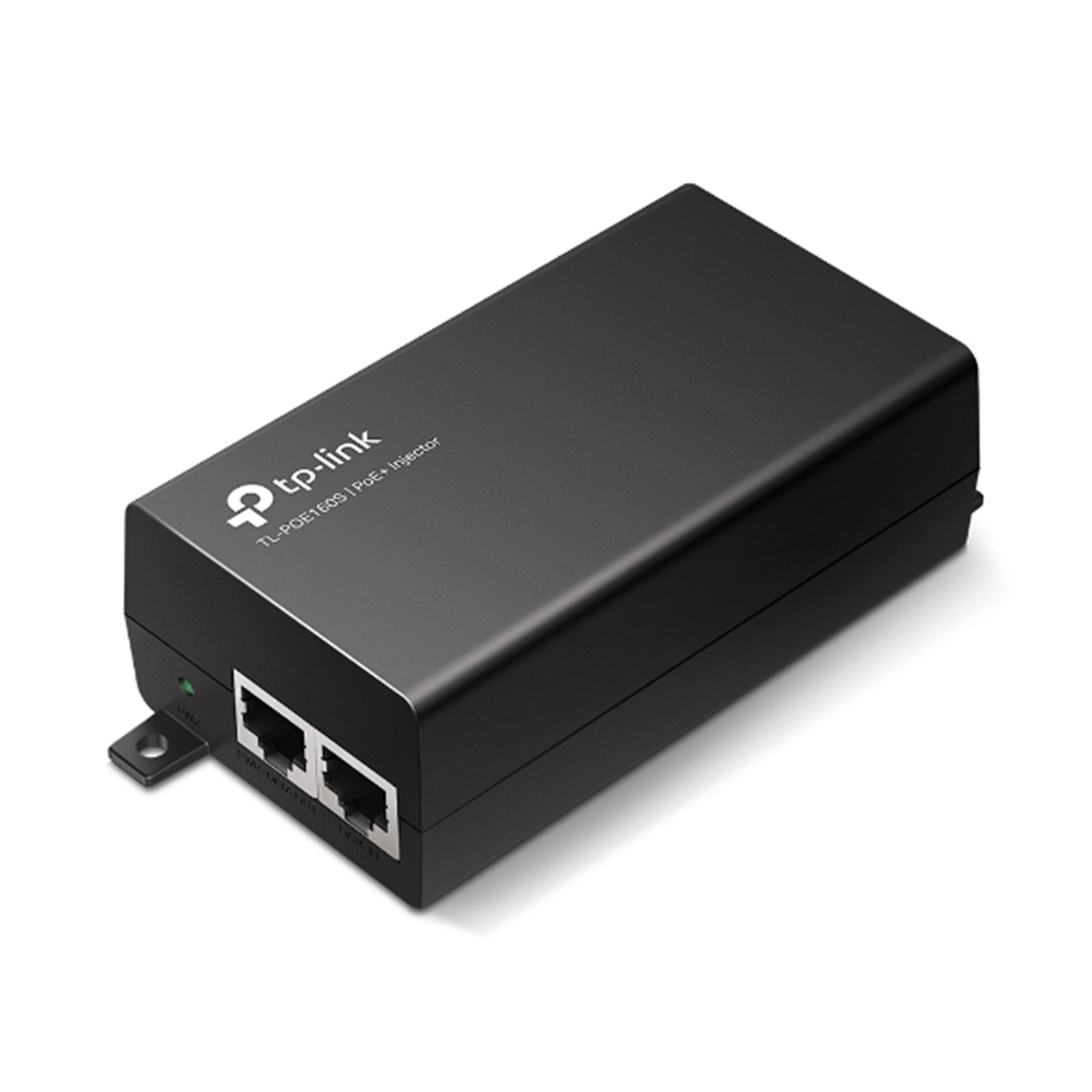

TP-Link TL-POE160S Power Over Ethernet PoE+ Injector (802.3at/30W)

The TP-Link TL-POE160S delivers reliable power and data transmission through a single Ethernet cable, eliminating the need for separate power outlets for your network devices. This IEEE 802.3at/af compliant PoE+ injector supplies up to 30W of power, making it compatible with a wide range of powered devices including IP cameras, wireless access points, and VoIP phones.

Gigabit Performance for Modern Networks

Equipped with two Gigabit Ethernet ports, the TL-POE160S ensures fast data transmission speeds up to 1000Mbps. The data-in port receives network connectivity while the power+data-out port delivers both power and data to your connected device. This gigabit capability prevents network bottlenecks and supports bandwidth-intensive applications like high-definition IP surveillance cameras.

Intelligent Power Management

The TL-POE160S features an auto-sensing algorithm that automatically detects connected devices and determines their exact power requirements. This intelligent power delivery system supplies anywhere from the minimum required power up to the full 30W maximum, ensuring optimal performance while protecting your equipment from power overload.

Flexible Installation Options

With its compact dimensions of 4.9 x 2.3 x 1.4 inches and integrated power supply, this PoE injector accommodates both wall-mounting and desktop installation scenarios. The included mounting kits and plug-and-play design mean no configuration is required—simply connect your devices and the TL-POE160S handles the rest.

Technical Specifications

NETWORK
Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL

Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

PACKAGE CONTENTS
PoE+ Injector TL-POE160S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting Kits

HARDWARE FEATURES

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps power+data-out port
1 AC socket

Power Consumption
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

LED Indicator
ON: Supplying power normally
OFF: No power supply

Dimensions (W x D x H)
4.9 x 2.3 x 1.4 in (125 x 59.4 x 36.8 mm)

• Connection Type: RJ45
• Speed: Gigabit
• Access Point: No
