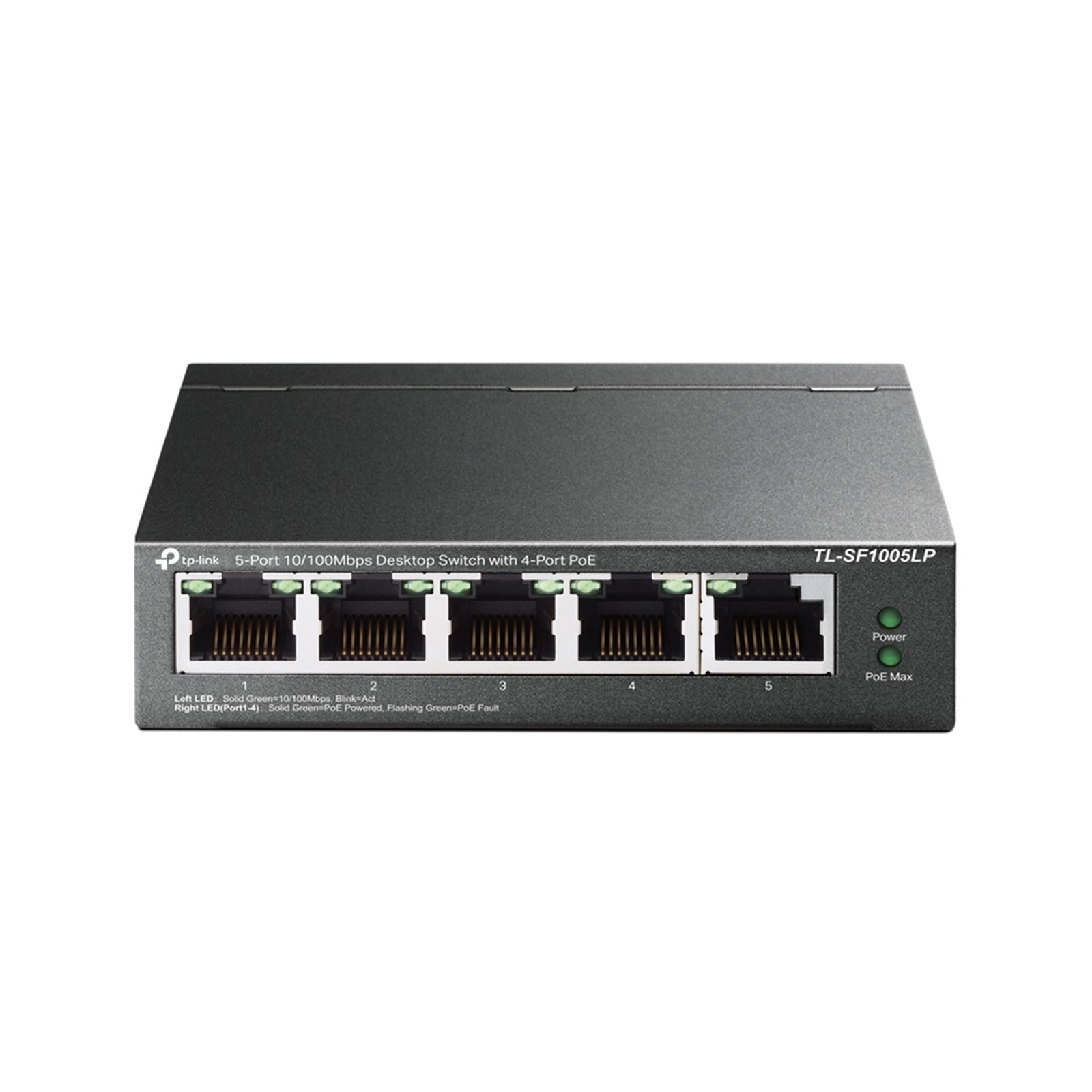

TP-Link TL-SF1005LP 5-Port Desktop PoE Switch with 41W Power Budget

The TP-Link TL-SF1005LP delivers reliable network connectivity with Power over Ethernet capability in a compact metal desktop design. This 5-port Fast Ethernet switch features 4 PoE-enabled ports with a total 41W power budget, eliminating the need for separate power supplies for connected devices.

Key Features

• 5x 10/100 Mbps RJ45 ports with AUTO negotiation and AUTO MDI/MDIX
• 4x PoE ports (IEEE 802.3af compliant) delivering up to 15.4W per port
• 41W total PoE power budget for multiple powered devices
• Extend Mode supports up to 250m data and power transmission range
• Priority Mode ensures high priority for ports 1-2
• Fanless metal housing for silent operation
• Plug and play operation with no configuration required

Ideal Applications

Perfect for small business surveillance systems, office networks, and dormitory installations. The TL-SF1005LP seamlessly powers and connects IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af compliant devices. The 41W power budget accommodates multiple devices simultaneously, making it an efficient solution for small-scale PoE deployments.

Extended Range and Quality Assurance

The Extend Mode button enables data and power transmission up to 250 meters, exceeding standard Ethernet distance limitations for flexible camera placement. Priority Mode guarantees bandwidth for critical applications on ports 1-2, ensuring consistent video quality for surveillance monitoring in essential business areas.

Technical Performance

With 1 Gbps switching capacity and 0.744 Mpps packet forwarding rate, the switch handles network traffic efficiently. The 2K MAC address table and store-and-forward transmission method ensure reliable data delivery. IEEE 802.3x flow control manages network congestion effectively in both full-duplex and half-duplex modes.

- 5x 10/100 Mbps RJ45 ports
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports
- Plug and play with no configuration required

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.


Specifications

HARDWARE FEATURES
Interface
• 5x 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate
0.744 Mpps

PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W

Mac Address Table
2K

Jumbo Frame
2 KB

Switching Capacity
1 Gbps

Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption
• 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation
• 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES
Transmission Method
Store-And-Forward

Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification
FCC, CE, RoHS

Package Contents
• TL-SF1005LP
• Power Adapter
• Installation Guide

Environment
• Operating Temperature: 0–40 C (32–104 F)
• Storage Temperature: -40–70 C (-40–158 F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• Ports: 5 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100
• PoE capable: Yes
