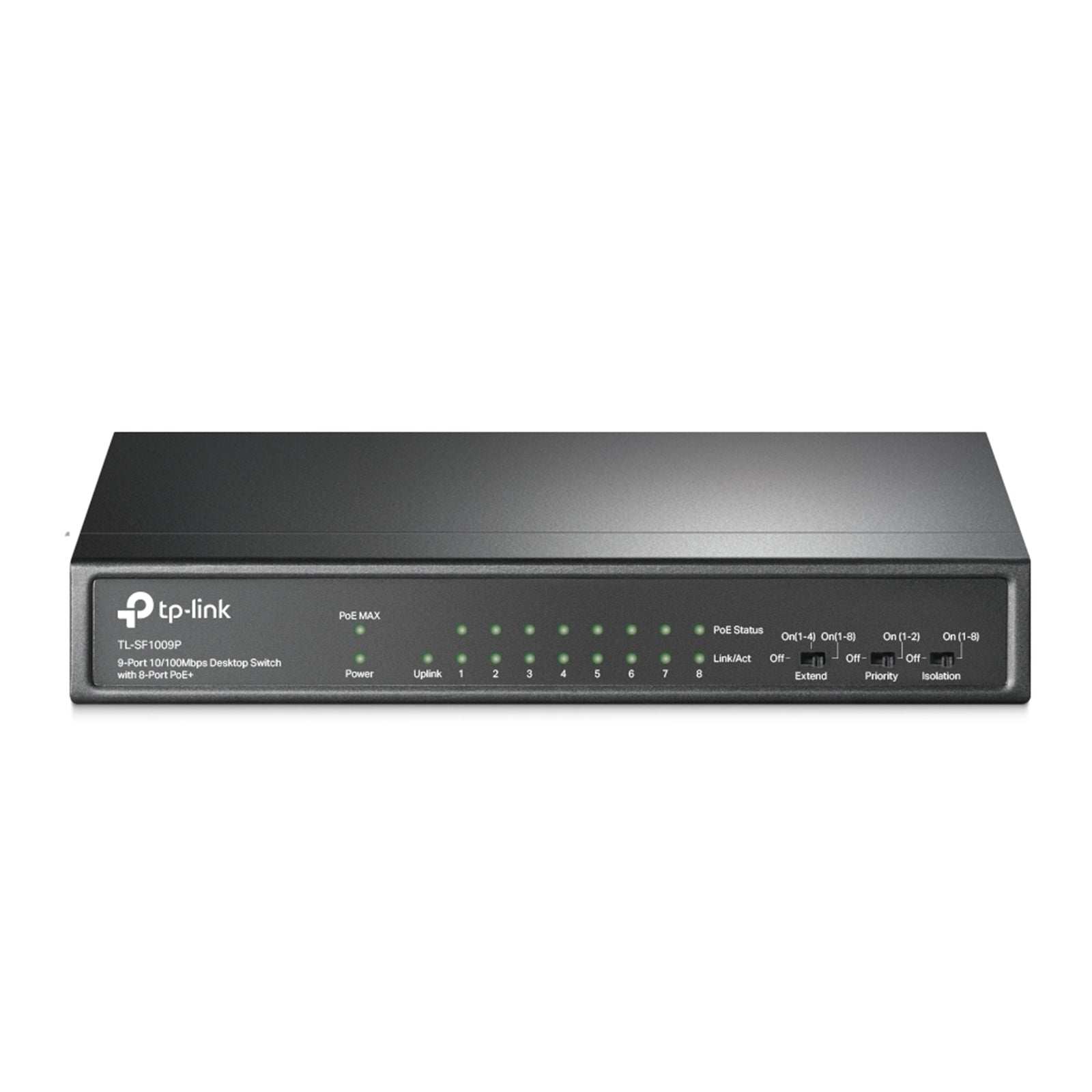

TP-Link TL-SF1009P 9-Port Desktop PoE+ Switch

The TP-Link TL-SF1009P delivers reliable Power over Ethernet connectivity for small business and surveillance applications. This 9-port unmanaged switch features 8 PoE+ ports with a 65W total power budget, supporting IEEE 802.3af/at compliant devices up to 30W per port.

Extended Range PoE Transmission

The extend mode enables PoE transmission distances up to 250 meters on ports 1-4 or 1-8, making it ideal for deploying IP cameras across large areas without additional power infrastructure. This extended range capability eliminates the standard 100-meter Ethernet limitation for surveillance installations.

Intelligent Power Management System

The TL-SF1009P automatically detects and supplies the required power to connected PoE devices while protecting non-PoE equipment from damage. When total consumption exceeds 65W, the intelligent management system prioritizes power to designated high-priority ports, preventing overload and ensuring critical devices maintain connectivity.

Optimized for IP Surveillance

Priority Mode designates ports 1-2 for high-priority traffic, ensuring smooth video streaming from critical cameras. Isolation Mode on ports 1-8 prevents inter-device communication, enhancing network security by restricting lateral movement between surveillance devices while maintaining uplink connectivity.

Durable Metal Construction

The fanless metal housing provides passive cooling and physical durability for desktop deployment. The robust construction protects internal components while maintaining silent operation, suitable for office environments where noise is a concern.

Plug and Play Operation

No configuration required—simply connect PoE devices like IP cameras, wireless access points, VoIP phones, or network devices. Auto-negotiation and Auto MDI/MDIX support ensure seamless connectivity with 10/100Mbps devices. The 2K MAC address table and store-and-forward transmission method with 1.8 Gbps switching capacity handle typical small network traffic efficiently.

Technical Specifications

Ports: 9x 10/100Mbps RJ45 (8x PoE+)
PoE Standard: IEEE 802.3af/at
PoE Budget: 65W total, 30W per port
Switching Capacity: 1.8 Gbps
Forwarding Rate: 1.3392 Mpps
Extend Mode Range: Up to 250m
Power Supply: External adapter (53.5VDC/1.31A)
Dimensions: 171 x 98 x 27 mm
Cooling: Fanless design

Compatible with IP cameras, wireless access points, IP phones, computers, and printers. Includes physical security lock slot for theft prevention in accessible locations.
