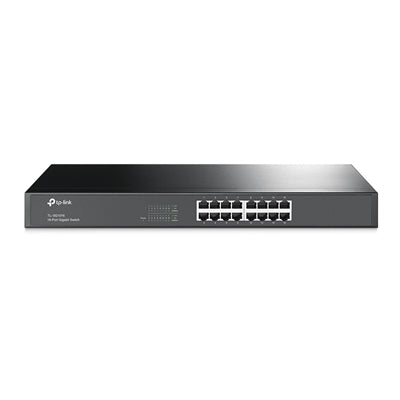

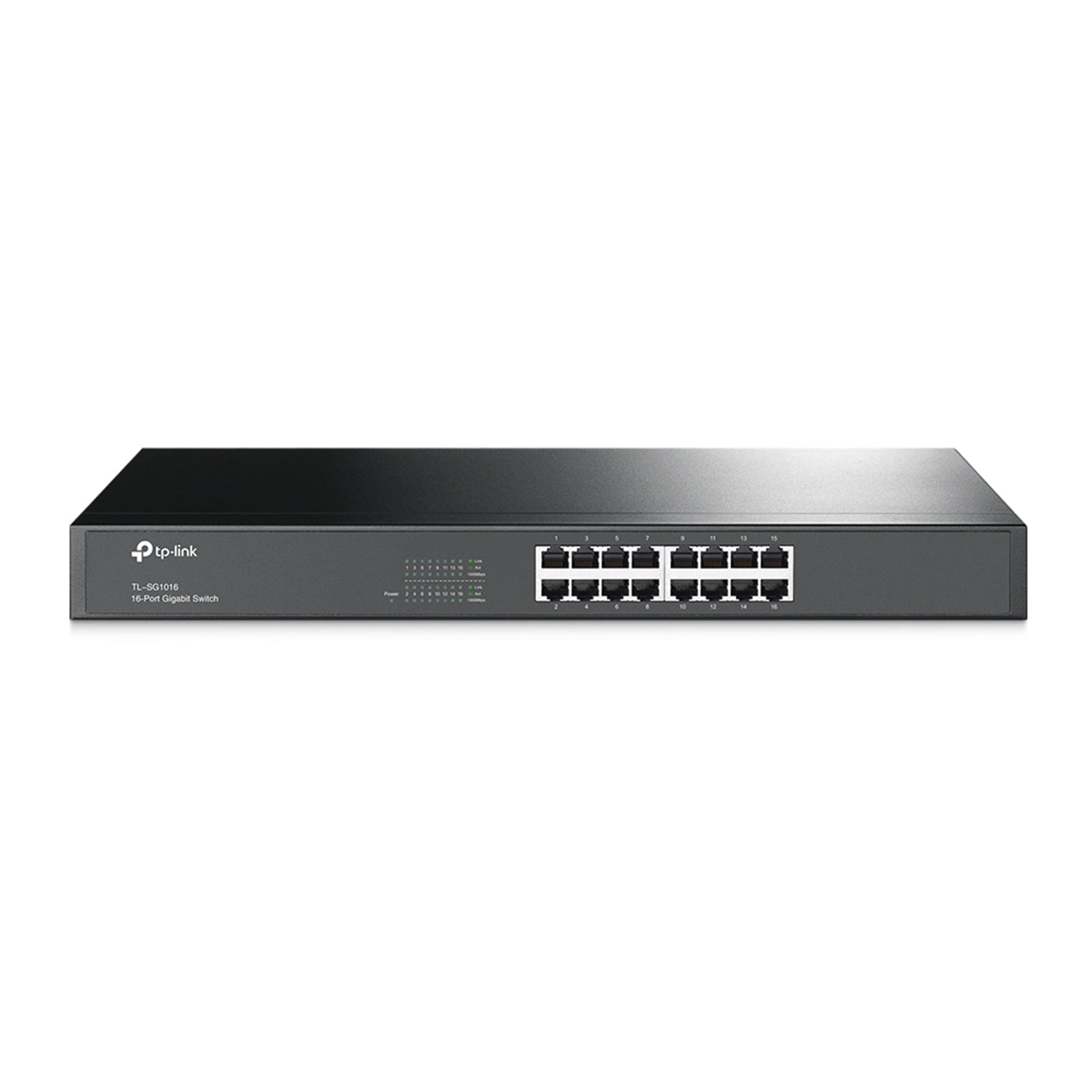

16-Port Gigabit Rackmount Network Switch

The TP-Link TL-SG1016 delivers enterprise-grade gigabit connectivity in a compact 19-inch rackmount form factor. This unmanaged switch features 16 10/100/1000Mbps RJ45 ports with auto-negotiation, providing seamless network expansion for small businesses and home offices requiring reliable high-speed connectivity.

Energy-Efficient Network Performance

Built with TP-Link's Green Technology, the TL-SG1016 automatically adjusts power consumption based on link status and cable length, reducing energy costs while maintaining full gigabit performance. The fanless design ensures silent operation, making it ideal for noise-sensitive environments. With only 9.26W maximum power consumption, this switch minimizes operating expenses while delivering 32Gbps switching capacity and 23.8Mpps packet forwarding rate.

Plug-and-Play Installation

Installation requires zero configuration. Auto MDI/MDIX eliminates crossover cable requirements, while auto-negotiation intelligently detects connected device speeds (10/100/1000Mbps) for optimal compatibility. The non-blocking store-and-forward architecture ensures maximum throughput with 8K MAC address table capacity. IEEE 802.3x flow control manages traffic efficiently in full-duplex mode, while backpressure handles half-duplex connections.

Professional Rackmount Design

The durable metal chassis (17.3 x 7.1 x 1.7 inches) fits standard 19-inch racks with included mounting hardware. Rubber feet enable desktop placement when rack mounting isn't required. All 16 gigabit ports support 10KB jumbo frames for improved large file transfer performance, making this switch suitable for media-intensive applications and backup operations.

Technical Specifications

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) | 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Power Supply: 100-240VAC, 50/60Hz

Dimensions: 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Max Power Consumption: 9.26W (220V/50Hz)

PERFORMANCE

Switching Capacity: 32Gbps

Packet Forwarding Rate: 23.8Mpps

MAC Address Table: 8K

Jumbo Frame: 10KB

Transfer Method: Store-and-Forward

Package Contents: 16-Port Gigabit Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet

Environment: Operating Temperature: 0-40°C | Storage Temperature: -40-70°C | Operating Humidity: 10%-90% non-condensing | Storage Humidity: 5%-90% non-condensing

Certification: FCC, CE, RoHS

• Ports: 16 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
