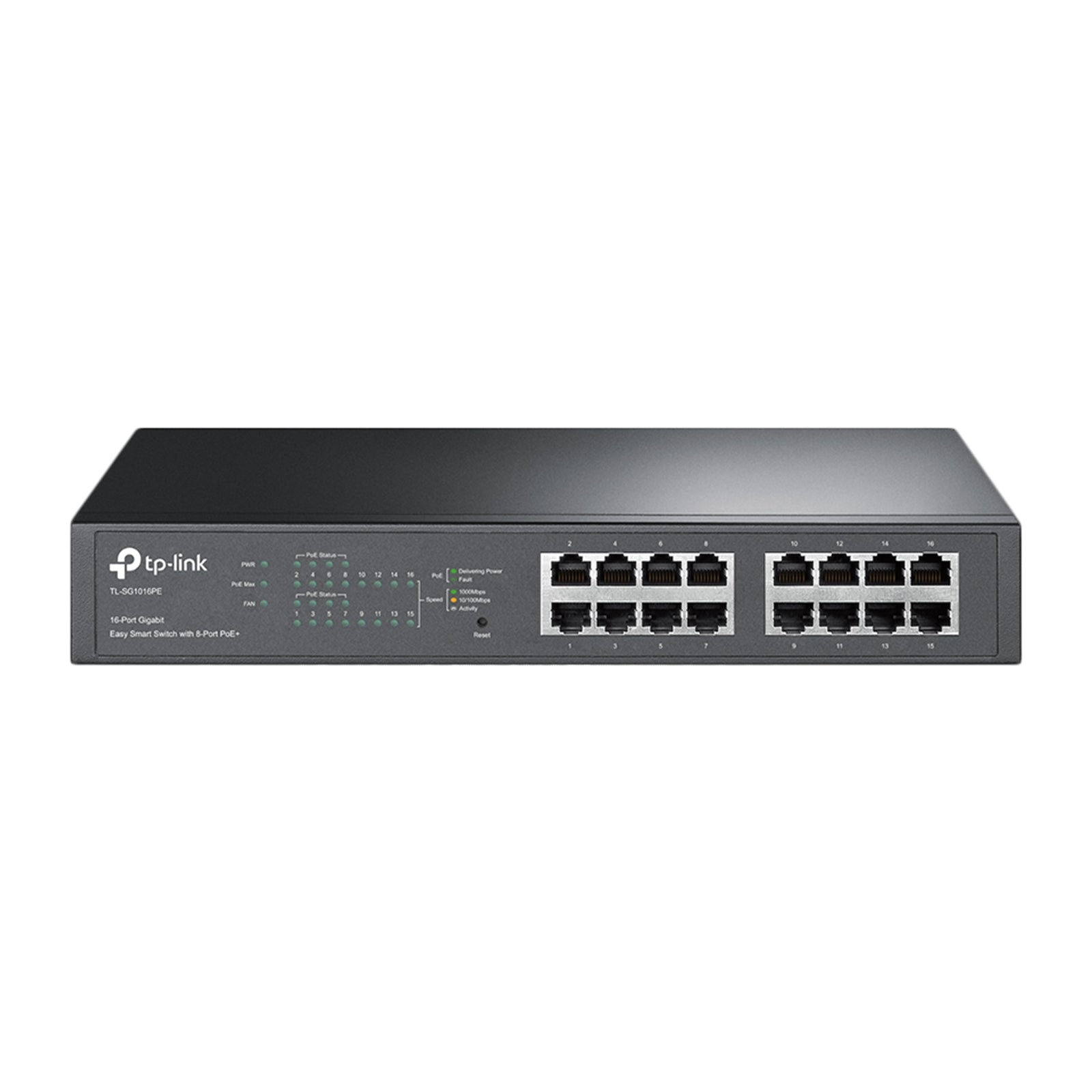

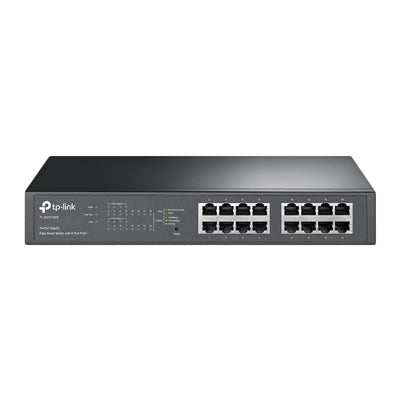

TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Switch Overview

The TP-Link TL-SG1016PE delivers enterprise-grade networking capabilities in a compact metal chassis. This 16-port gigabit switch features 8 PoE+ ports with a 150W power budget, eliminating the need for separate power supplies for connected devices like IP cameras, wireless access points, and VoIP phones.

Power Over Ethernet Plus Technology

Eight ports support IEEE 802.3af/at PoE+ standard, delivering up to 30W per port. The 150W total power budget enables simultaneous operation of multiple high-powered devices. When power demand exceeds capacity, the intelligent priority system (Port 1-8 hierarchy) automatically manages power distribution, cutting off lower-priority ports to protect critical connections.

Smart Management Features

Access advanced network control through the web-based GUI or Easy Smart Configuration Utility. Configure up to 32 VLANs simultaneously from 4K VLAN IDs, implement port-based/802.1p/DSCP QoS with 4 priority queues, and utilize IGMP Snooping V1/V2/V3 for optimized multicast traffic. Additional features include static link aggregation, port mirroring, cable diagnostics, and loop prevention.

Performance Specifications

The TL-SG1016PE provides 32 Gbps switching capacity with 23.8 Mbps packet forwarding rate. The 8K MAC address table and 4.1 Mbit packet buffer memory ensure smooth data transmission. All 16 ports support auto-negotiation and auto MDI/MDIX, with jumbo frame support up to 10KB.

Flexible Installation Options

Measuring 11.6 x 7.1 x 1.7 inches, this metal switch accommodates both desktop and rack-mount deployments. The included rackmount kit and rubber feet provide installation flexibility. A single fan maintains optimal operating temperature while the physical security lock protects against unauthorized access.

Energy-Efficient Design

Innovative power-saving technology reduces energy consumption without compromising performance. Power consumption ranges from 8.07W with no connected devices to 177.67W at full 150W PoE load, making it an eco-friendly solution for business networks.

Technical Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
16x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
1

Physical Security Lock
Yes

PoE Ports (RJ45)
Standard: 802.3 af/at compliant

PoE Ports:
Port 1 to Port 8

PoE Power Budget:
150 W

Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Mounting
Rack Mountable/ Desktop

Max Power Consumption
8.07 W (110 V/ 60 Hz with no PD connected)
177.67 W (110 V/60 Hz with 150 W PD connected)

Max Heat Dissipation
27.52 BTU/h (with no PD connected)
605.85 BTU/h (with 150 W PD connected)

PERFORMANCE

Switching Capacity
32 Gbps

Packet Forwarding Rate
23.8 Mbps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
10 KB

SOFTWARE FEATURES

Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management
Web-based GUI
Easy Smart Configuration Utility

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows for running Utility

Environment
Operating Temperature: 0–50
Storage Temperature: -40–70
Operating Humidity: 10–90% non-condensing
Storage Humidity: 5–90% non-condensing

• Ports: 16 Ports
• Managed/Unmanaged: Managed
• Speed: 10/100/1000
• PoE capable: Yes
