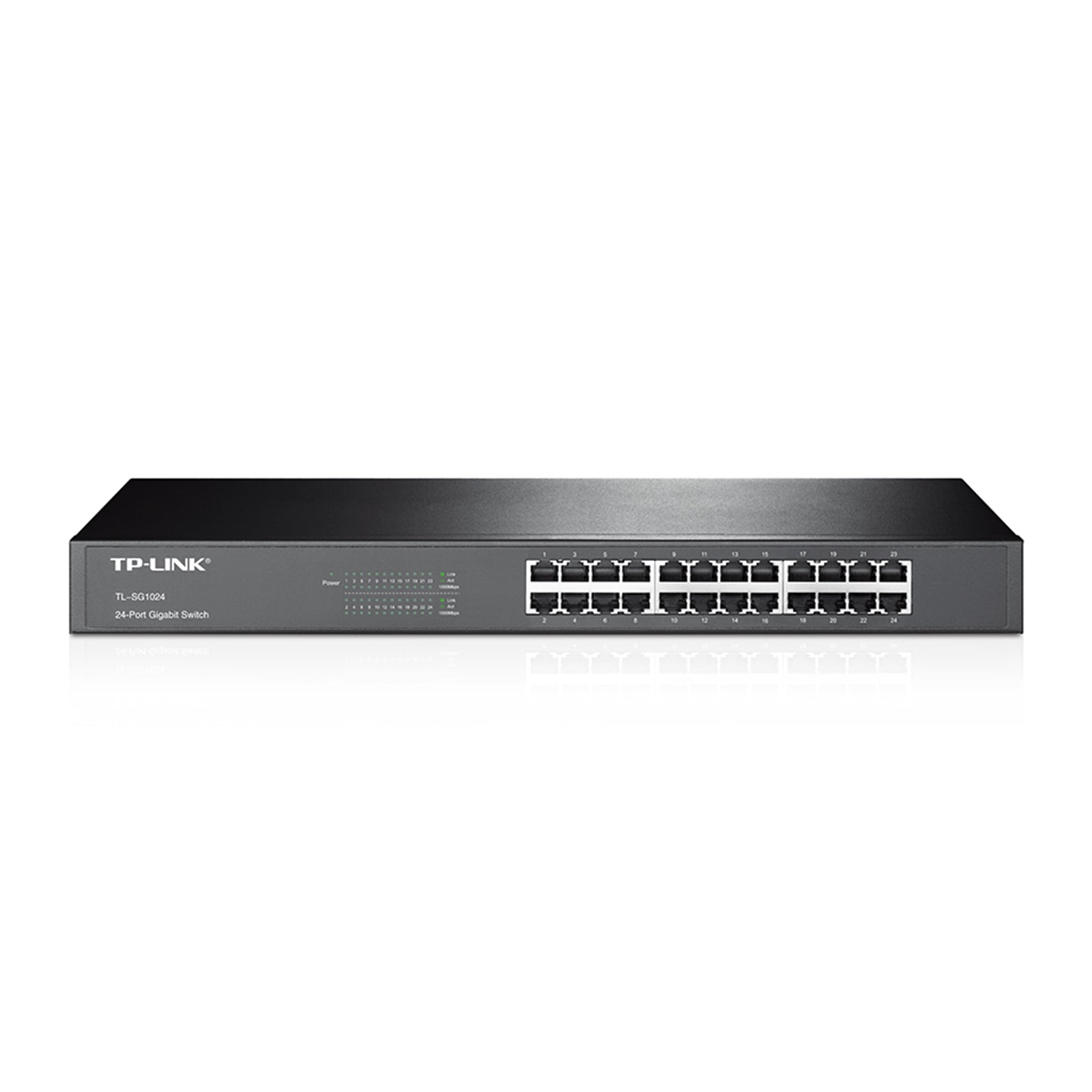

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch

The TP-Link TL-SG1024 delivers reliable high-speed connectivity for small to medium business networks. This unmanaged 24-port gigabit switch provides plug-and-play simplicity with 48Gbps switching capacity and 35.7Mpps packet forwarding rate.

Network Performance

Each of the 24 RJ45 ports supports auto-negotiation for 10/100/1000Mbps speeds with auto MDI/MDIX functionality, eliminating the need for crossover cables. The switch handles an 8K MAC address table and supports jumbo frames up to 10KB for efficient large file transfers. Store-and-forward transfer method ensures data integrity across your network.

Energy Efficiency and Silent Operation

Built with innovative energy-efficient technology, the TL-SG1024 consumes only 13.6W maximum power while reducing operational costs. The fanless design ensures completely silent operation, making it suitable for noise-sensitive environments while maintaining optimal performance.

Rack-Mountable Design

The standard 19-inch rack-mountable steel case fits seamlessly into existing server racks and network cabinets. Measuring 17.3 x 7.1 x 1.7 inches, the durable metal construction provides long-term reliability for business deployments. Includes rackmount kits and rubber feet for flexible installation options.

Quality of Service

Version 11 and later models support 802.1p/DSCP QoS for traffic prioritization, ensuring critical applications receive necessary bandwidth. The switch complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3x standards for broad network compatibility.

Key Features
24 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Mounting
19" Rack Mountable

Max Power Consumption
13.6W

Max Heat Dissipation
46.4BTU/h

PERFORMANCE

Switching Capacity
48Gbps

Packet Forwarding Rate
35.7Mpps

MAC Address Table
8K

Jumbo Frame
10KB

QoS
802.1p/DSCP QoS*
*Only for V11 and later version

Green Technology
Yes

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing

• Ports: 24 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: No
