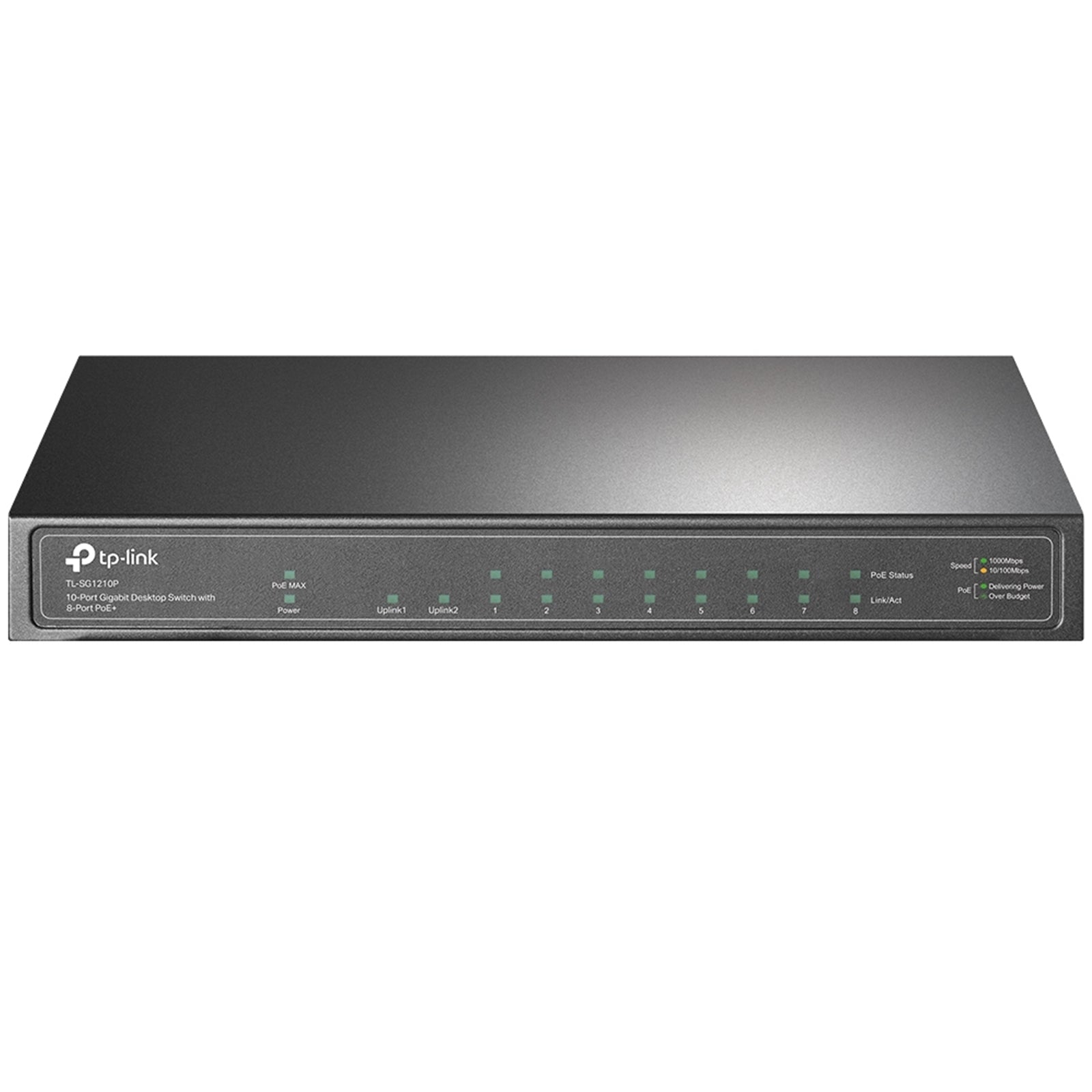

TP-Link TL-SG1210P 10-Port Gigabit PoE+ Switch

The TP-Link TL-SG1210P delivers reliable network connectivity with Power over Ethernet capabilities for small business and home office environments. This 10-port gigabit switch features 8 PoE+ ports, 1 standard gigabit port, and 1 SFP slot for fiber connectivity.

Power over Ethernet Functionality

Ports 1-8 support IEEE 802.3af/at compliant Power over Ethernet, eliminating the need for separate power supplies for connected devices. With a 63W PoE power budget, this switch powers IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices directly through ethernet cables. The intelligent power management system automatically prioritizes ports when total consumption exceeds 63W, protecting the switch from overload while maintaining power to critical devices.

Performance Specifications

The TL-SG1210P provides 20 Gbps switching capacity and 14.88 Mpps packet forwarding rate, ensuring smooth data transmission across all ports. Store-and-forward transmission method with 802.1p/DSCP QoS support prioritizes network traffic for latency-sensitive applications. The switch supports jumbo frames up to 16KB and maintains a 4K MAC address table for efficient network management.

Durable Metal Construction

Built with a sturdy metal casing measuring 209 x 126 x 26mm, this switch offers desktop or wall-mounting options for flexible installation. The fanless design ensures silent operation with no moving parts, making it suitable for noise-sensitive environments. Maximum power consumption reaches only 7.11W without connected devices, increasing to 78.13W with full 63W PoE load.

Network Compatibility

Compatible with UTP category 3, 4, 5, 5e, and 6 cables for 10/100/1000Mbps connections. The SFP slot accepts both multimode and single-mode fiber modules for extended network reach. IGMP Snooping optimizes multicast traffic, while 802.3x flow control prevents packet loss during heavy traffic periods.

Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.


Specifications


HARDWARE FEATURES

Interface:
8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity:
Fanless

Physical Security Lock:
Yes

Power Supply:
External Power Adapter (Output: 53.5VDC / 1.31A)

Backup Bandwidth:
20 Gbps

Packet Forwarding Rate:
14.88 Mpps

PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W

Mac Address Table:
4K

Jumbo Frame:
16 KB

Switching Capacity:
20 Gbps

Dimensions ( W x D x H ):
209 x 126 x 26 mm

Max Power Consumption:
7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation:
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transmission Method:
Store-And-Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
TL-SG1210P, Power Adapter, Installation Guide

• Ports: 10 Ports
• Managed/Unmanaged: Unmanaged
• Speed: 10/100/1000
• PoE capable: Yes
