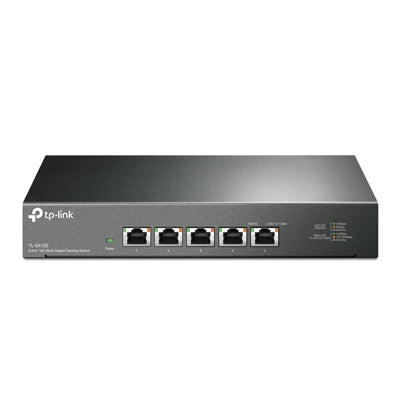

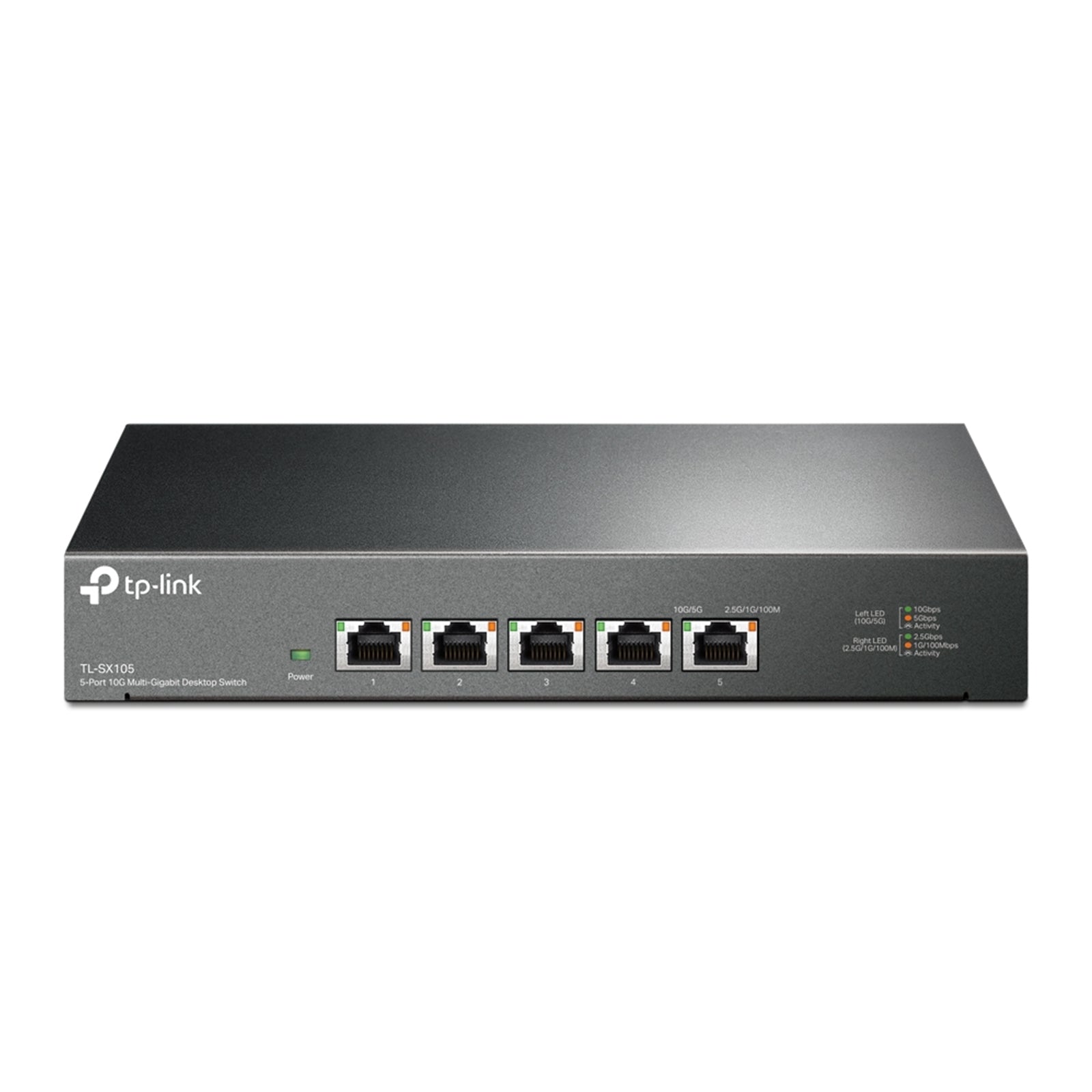

TP-Link TL-SX105 5-Port 10G Desktop Switch

The TL-SX105 delivers enterprise-grade 10 Gigabit networking in a compact desktop form factor. With five 10G ports and 100 Gbps switching capacity, this metal switch handles demanding workloads from NAS storage to 8K video streaming without bottlenecks.

10 Gigabit Performance Across All Ports

Each of the five ports supports auto-negotiation across five speeds: 100Mbps, 1G, 2.5G, 5G, and 10G. The switch intelligently detects connected devices and adjusts to optimal performance levels. Connect 10G NAS systems, servers, PCIe adapters, WiFi 6 access points, and workstations simultaneously at maximum bandwidth.

Fanless Silent Operation

The TL-SX105 operates completely silent with its fanless design and professional heat dissipation system. The durable metal casing ensures reliable performance in home offices, small businesses, and entertainment setups without adding noise to your environment.

Plug-and-Play Deployment

No configuration required. Connect devices and the switch handles the rest with auto MDI/MDIX support eliminating the need for crossover cables. The MAC address table accommodates 32K entries with 2Mb packet buffer memory and 10KB jumbo frame support for efficient data transfer.

Flexible Installation Options

Mount the switch on your desktop using included rubber feet or wall-mount it to save space. The compact 8.9 x 5.2 x 1.4 inch dimensions fit anywhere while the external 12V/2A power adapter keeps the unit cool during operation with maximum 21.4W power consumption.

Network Infrastructure Ready

Works with existing Cat5e cables for speeds up to 5 Gbps. Use Cat6a or higher cables to achieve full 10G speeds up to 100 meters. IEEE 802.3bz compliance ensures compatibility with multi-gigabit devices while 802.1p/DSCP QoS prioritizes critical traffic for gaming and video applications.

Technical Specifications

• Ports: 5 x 100Mbps/1G/2.5G/5G/10G Auto-Negotiation
• Switching Capacity: 100 Gbps
• Packet Forwarding Rate: 74.4 Mpps
• MAC Address Table: 32K entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
• QoS: 802.1p/DSCP with 802.3X Flow Control
• Operating Temperature: 0–40°C (32–104°F)

Package includes TL-SX105 switch, power cord, installation guide, and rubber feet. CE, FCC, and RoHS certified.

• Type: Unmanaged Switch
• Speed: Gigabit
• PoE: No
