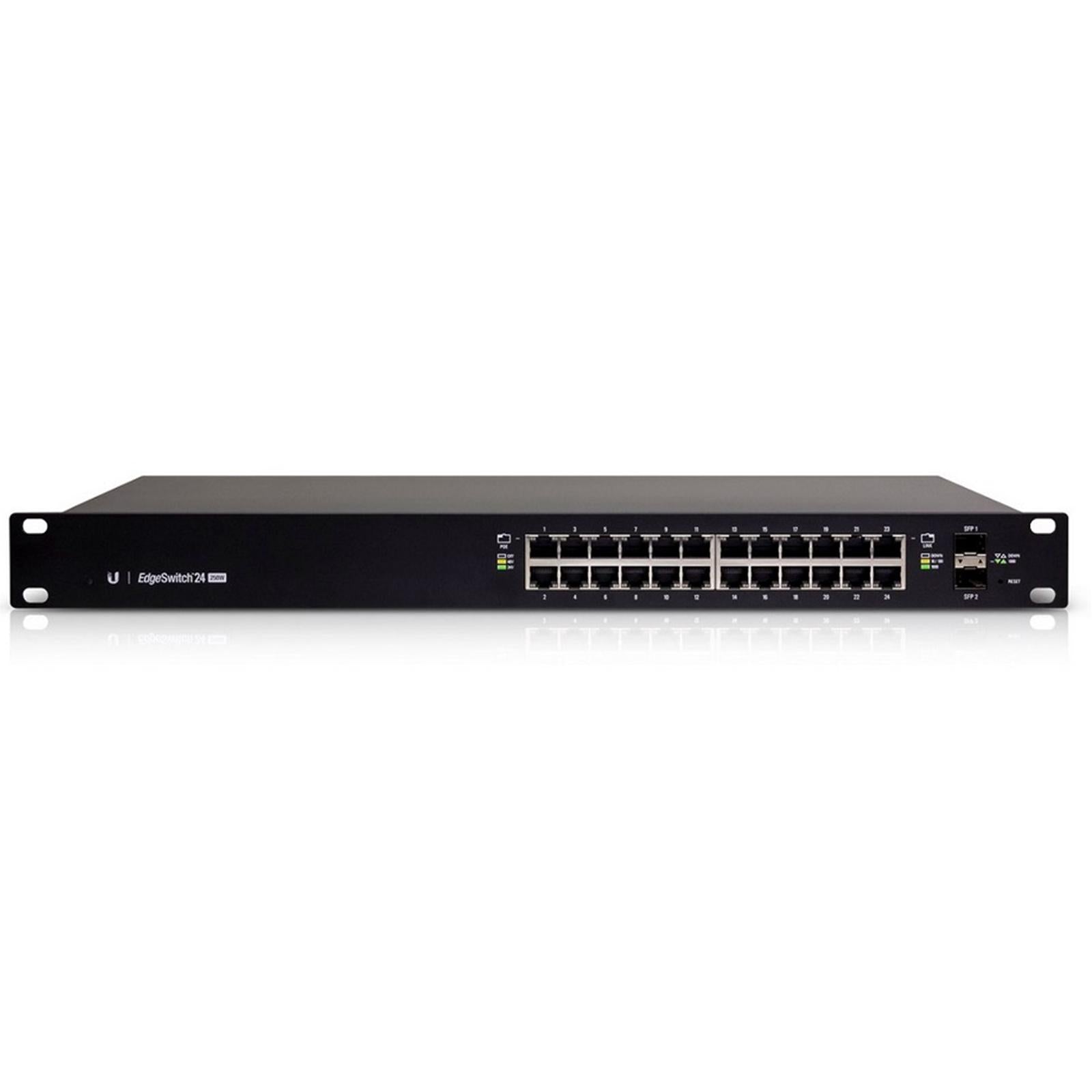

Ubiquiti EdgeSwitch ES-24-250W - 24-Port Managed Gigabit PoE Switch

The Ubiquiti ES-24-250W EdgeSwitch delivers enterprise-grade network performance in a compact 24-port configuration. This managed gigabit switch provides 26 Gbps of total non-blocking throughput, ensuring simultaneous line-rate processing across all ports without packet loss.

Power Over Ethernet Capability

Featuring 250W PoE budget, the EdgeSwitch supports auto-sensing IEEE 802.3af/at and 24V passive PoE standards. Power multiple network devices including IP cameras, VoIP phones, and wireless access points directly through ethernet cables, eliminating the need for separate power adapters.

Advanced Layer-2 and Layer-3 Networking

This managed switch supports an extensive suite of Layer-2 switching protocols and features, with Layer-3 routing capability for advanced network segmentation. Configure VLANs, spanning tree protocols, link aggregation, and static routing to build sophisticated network topologies.

High-Speed Uplink Connectivity

Two SFP ports provide fiber optic uplink options supporting speeds up to 1 Gbps. Connect multiple switches together or establish long-distance connections to your core network infrastructure using compatible SFP transceivers.

Dual Management Interface

The EdgeSwitch includes a comprehensive graphical user interface for intuitive configuration and monitoring. Network administrators can manage all switch features through the web-based UI, while advanced users can access the Command-Line Interface via telnet or SSH for scripting and automation.

Technical Specifications

• Total Non-Blocking Throughput: 26 Gbps
• Gigabit RJ45 Ports: 24
• SFP Ports: 2
• SFP+ Ports: N/A
• Max. Power Consumption: 250W
• PoE Standard: IEEE 802.3af/at, 24V Passive
• Management: Layer-2/Layer-3 Managed
• Mounting: Rack Mountable

Enterprise Network Infrastructure

The ES-24-250W is designed for business environments requiring reliable, high-performance switching with comprehensive management capabilities. Deploy in office networks, educational institutions, retail locations, or security camera installations where PoE device support is essential.

• Speed: Gigabit
• Ports: 24
• POE Capability: 48v
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
