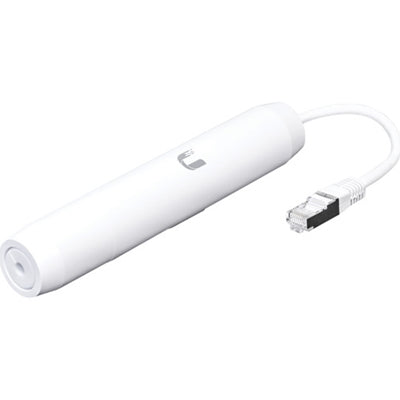

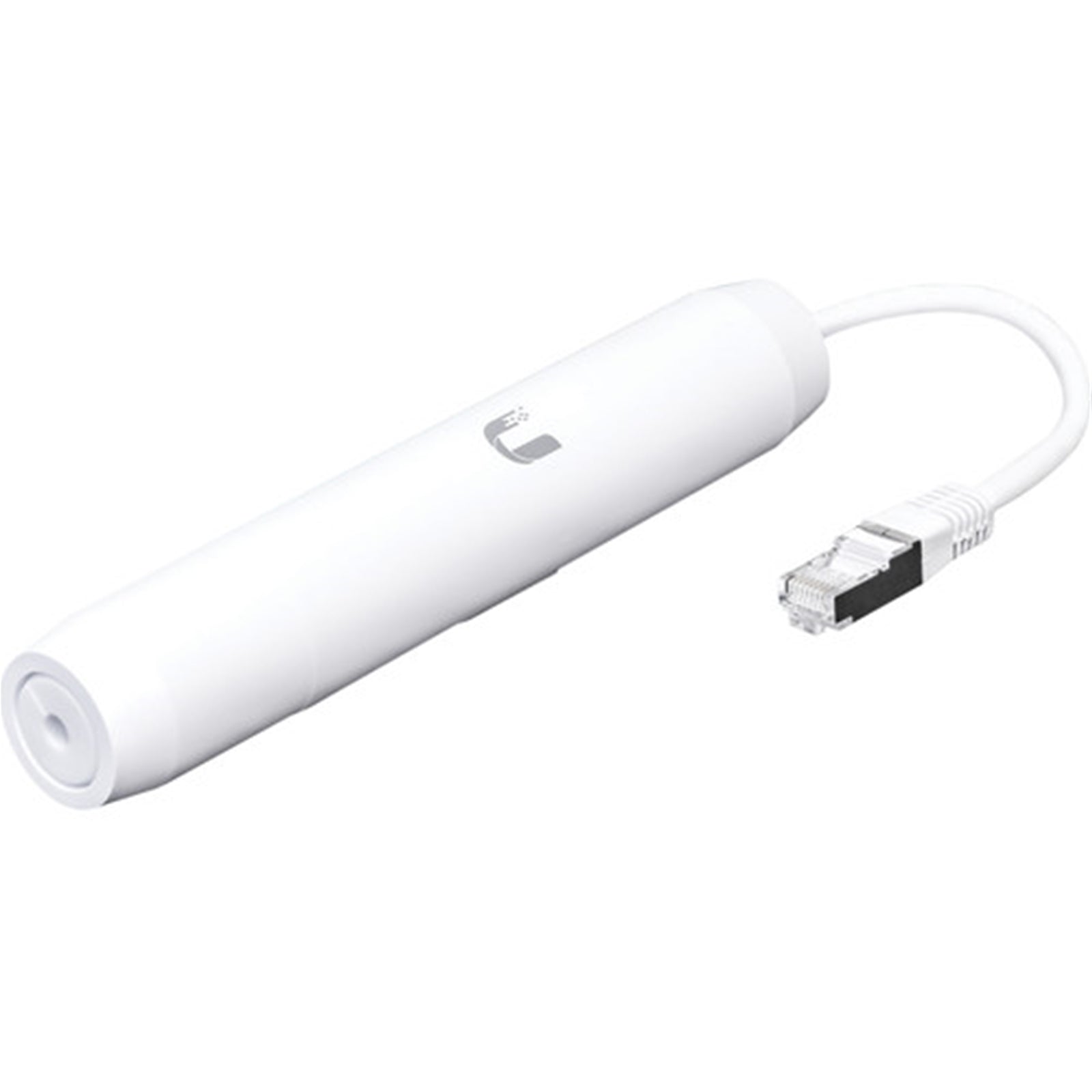

Ubiquiti INS-3AF-O-G Instant 802.3af Outdoor Gigabit PoE Converter

The Ubiquiti Instant 802.3af Outdoor Gigabit Adapter (INS-3AF-O-G) converts standard 48V 802.3af PoE supply into 24V passive PoE, making it compatible with Ubiquiti devices that require passive power delivery. This gigabit-capable adapter serves as the upgraded version of the INS-8023AF-O model.

Key Features

This outdoor-rated PoE converter delivers reliable power conversion in challenging environmental conditions. The weatherproof construction operates across a wide temperature range from -30°C to 70°C, suitable for outdoor network installations year-round. Built-in 15kV Ethernet ESD/surge protection safeguards connected equipment from electrical damage.

The gigabit RJ45 port ensures full network speed capability without bottlenecks, supporting modern high-bandwidth applications. The compact design measures 30.2 x 166 mm and weighs just 90 grams, allowing flexible mounting options in space-constrained locations.

Power Conversion Specifications

Input power accepts standard 48V 802.3af PoE from compatible switches and injectors. Output delivers 24V at 0.5A through passive PoE using pairs 4, 5+ and 7, 8 return configuration. This power method matches the requirements of numerous Ubiquiti wireless access points, cameras, and other network devices that utilize passive PoE instead of standard 802.3af.

Technical Specifications

Product code
INS-3AF-O-G

Dimensions
30.2 x 166 mm (1.19 x 6.54")

Weight
90 g (3.17 oz)

Networking Interface
1 x Gigabit RJ45 Port
1 x Gigabit Ethernet Cable

Operating Temperature
-30 to 70C

Power Input
48V, 802.3af

Max. Power Output
24V, 0.5A

Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

Ethernet ESD/Surge Protection
15kV

Box Contents
1 x INS-3AF-O-G

Installation Applications

The INS-3AF-O-G enables deployment of passive PoE devices on standard 802.3af infrastructure. Network administrators can use existing PoE switches without replacing equipment, simply adding this converter inline to power compatible Ubiquiti products. The outdoor rating makes it suitable for mounting on poles, building exteriors, or in weatherproof enclosures.

• Product Type: POE Injector
• POE Capability: 48v
• Device Support: Universal
