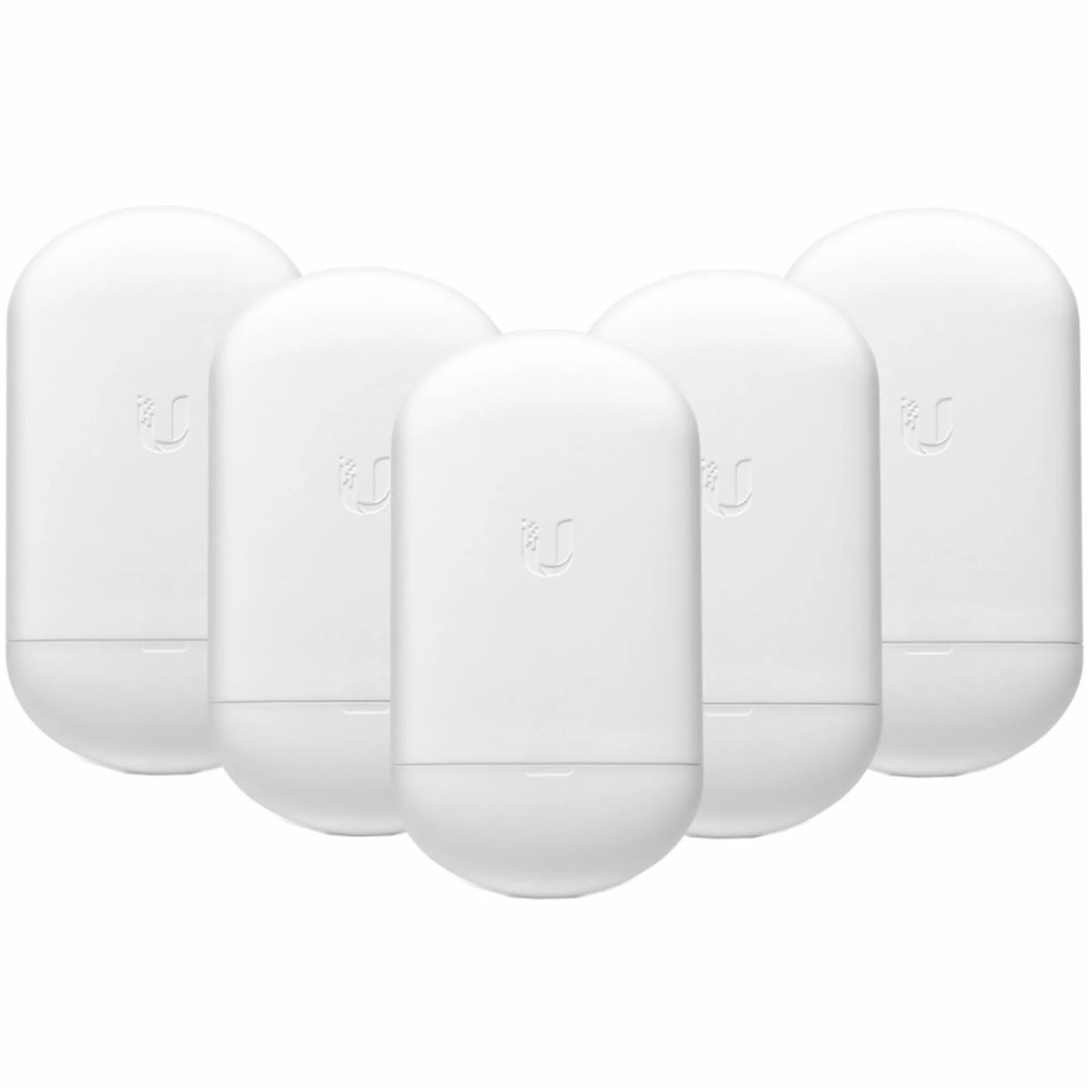

Ubiquiti NanoStation AC Loco 5GHz Outdoor Wireless Bridge - 5 Pack

The Ubiquiti NS-5ACL NanoStation AC Loco represents the evolution of affordable, high-performance Customer Premises Equipment (CPE). This compact 5GHz wireless bridge integrates radio and antenna into a single 163 x 31 x 80mm unit weighing just 0.18 kg, maximizing 13dBi gain while minimizing physical footprint for versatile outdoor deployments.

airMAX ac Technology for Superior Performance

The NanoStation AC Loco utilizes Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol, eliminating hidden node collisions that plague standard WiFi deployments. Each client communicates using pre-designated time slots scheduled by an intelligent AP controller, delivering improvements in latency, noise immunity, scalability, and throughput. The device supports airMAX ac protocol with selectable channel widths: 10/20/30/40/50/60/80 MHz for PtP links and 10/20/30/40 MHz for PtMP configurations.

Integrated WiFi Management and Spectral Analysis

A dedicated WiFi radio enables fast setup through the UMobile App, available for iOS and Android devices. Access the airOS configuration interface directly from your mobile device for immediate setup, configuration, and management. The built-in airView spectral analysis tool identifies noise signatures, allowing network planners to minimize interference and optimize channel selection.

Technical Specifications

The NS-5ACL features an Atheros MIPS 24KC 400 MHz processor with 32 MB SDRAM and 8 MB Flash memory. The dual-linear polarization antenna provides 45° beamwidth in both horizontal and vertical planes, with 20 dB minimum cross-pol isolation and 1.4:1 maximum VSWR. The single 10/100 Ethernet port supports Passive Power over Ethernet (24V, 0.5A) with 5.5W maximum power consumption.

Deployment Modes and Features

Configure the NanoStation AC Loco for Access Point PtMP airMAX Mixed Mode or long-range Point-to-Point links. Automatic channel selection, transmit power control (automatic/manual), and automatic distance selection (ACK timing) simplify deployment. WPA2 security ensures network protection. The outdoor UV-stabilized plastic enclosure operates from -30 to 75°C in 5-95% condensing humidity, meeting ETSI300-019-1.4 shock and vibration standards. Pole mounting kit included.

Specifications

Dimensions (mm)
163 x 31 x 80

Weight
0.18 kg

Power Supply (PoE)
24V, 0.5A

Max. Power Consumption
5.5 W

Gain
13 dBi

Polarisation
Dual Linear

Enclosure Characteristics
Outdoor UV Stabilised Plastic

Mounting
Pole Mounting Kit Included

Power Method
Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

Operating Temperature
-30 to 75° C

Operating Humidity
5 to 95% Condensing

Shock and Vibration
ETSI300-019-1.4

Processor Specs
Atheros MIPS 24KC, 400 MHz

Memory
32 MB SDRAM, 8 MB Flash

Networking Interface
(1) 10/100 Ethernet Port

Wireless Approvals
FCC Part 90Z

RoHS Compliance
Yes

Gain
13 dBi

Cross-pol Isolation
20 dB Minimum

Max. VSWR
1.4:1

Beamwidth
45° (H-pol) / 45° (V-pol) / 45° (Elevation)

• Type: Nano
• Speed: 150Mbps
• Indoor or Outdoor: Indoor/Outdoor
• POE Capability: 24v
• Pack Size: 5 Pack
