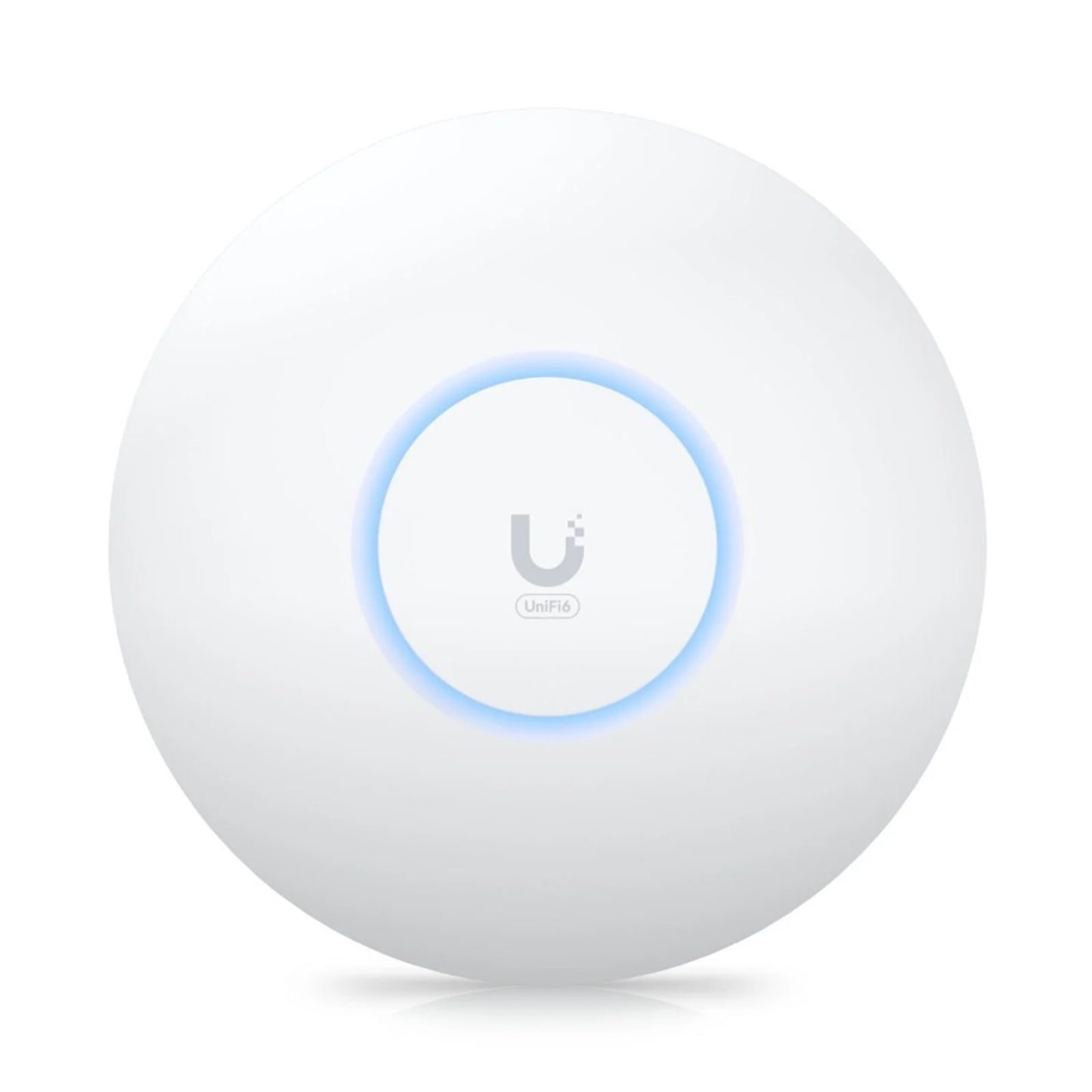

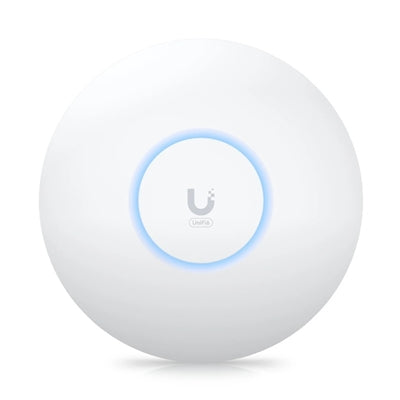

Ubiquiti U6+ (U6-Plus) Wi-Fi 6 Wireless Access Point

The Ubiquiti U6+ delivers professional-grade Wi-Fi 6 connectivity with extended range capabilities for demanding network environments. This access point supports 300+ concurrent clients with combined throughput of 2975.5 Mbps across dual-band operation.

Wi-Fi 6 Performance Specifications

Equipped with 2x2 MIMO technology, the U6-Plus achieves 573.5 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz bands. The device supports 802.11a/b/g/n/ac/ax standards, providing backward compatibility while delivering modern Wi-Fi 6 efficiency. Maximum transmit power of 23 dBm on both bands ensures consistent coverage across large spaces.

Deployment Flexibility

Measuring 160 x 33 mm and weighing 338 g without mount, the U6+ features a polycarbonate top cover and aluminum bottom cover for durability. The included wall/ceiling mount supports both indoor and outdoor installations, with operating temperatures ranging from -30 to 60°C. PoE power delivery (44-57V DC) simplifies installation with a single cable for both data and power, consuming a maximum of 9W.

Network Management Features

Connect via the single GbE RJ45 port with full Ethernet management capabilities. Configure up to 8 BSSIDs per radio with 802.1Q VLAN support for network segmentation. Advanced QoS includes per-user rate limiting, while guest traffic isolation maintains network security. The device supports WPA-PSK and WPA-Enterprise security protocols including WPA3.

Technical Specifications

Dimensions: 160 x 33 mm (6.3 x 1.3")
Weight: Without mount: 338 g (0.75 lb) | With mount: 413 g (0.91 lb)
Enclosure materials: Top cover: polycarbonate | Bottom cover: aluminum
Mount materials: ABS, SGCC steel
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet
Power method: PoE
Supported voltage range: 44–57V DC
Max. power consumption: 9W
Max. TX power: 2.4 GHz 23 dBm | 5 GHz 23 dBm
MIMO: 2x2
Throughput rate: 2.4 GHz 573.5 Mbps | 5 GHz 2402 Mbps
LED: White/blue
Button: Factory reset
Mounting: Wall/ceiling (included)
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
WiFi standards: 802.11a/b/g | WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Zero wait DFS: Not supported
Concurrent clients: 300+

• Type: Long Range
• Speed: WiFi 6
• Indoor or Outdoor: Indoor/Outdoor
• POE Capability: 48v
• Pack Size: Single
