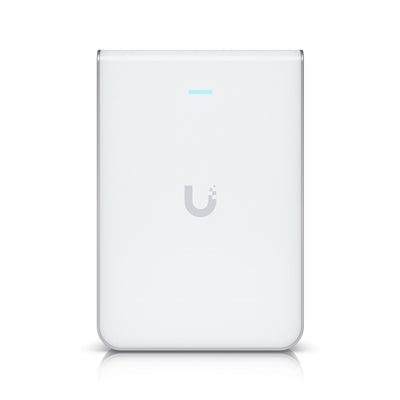

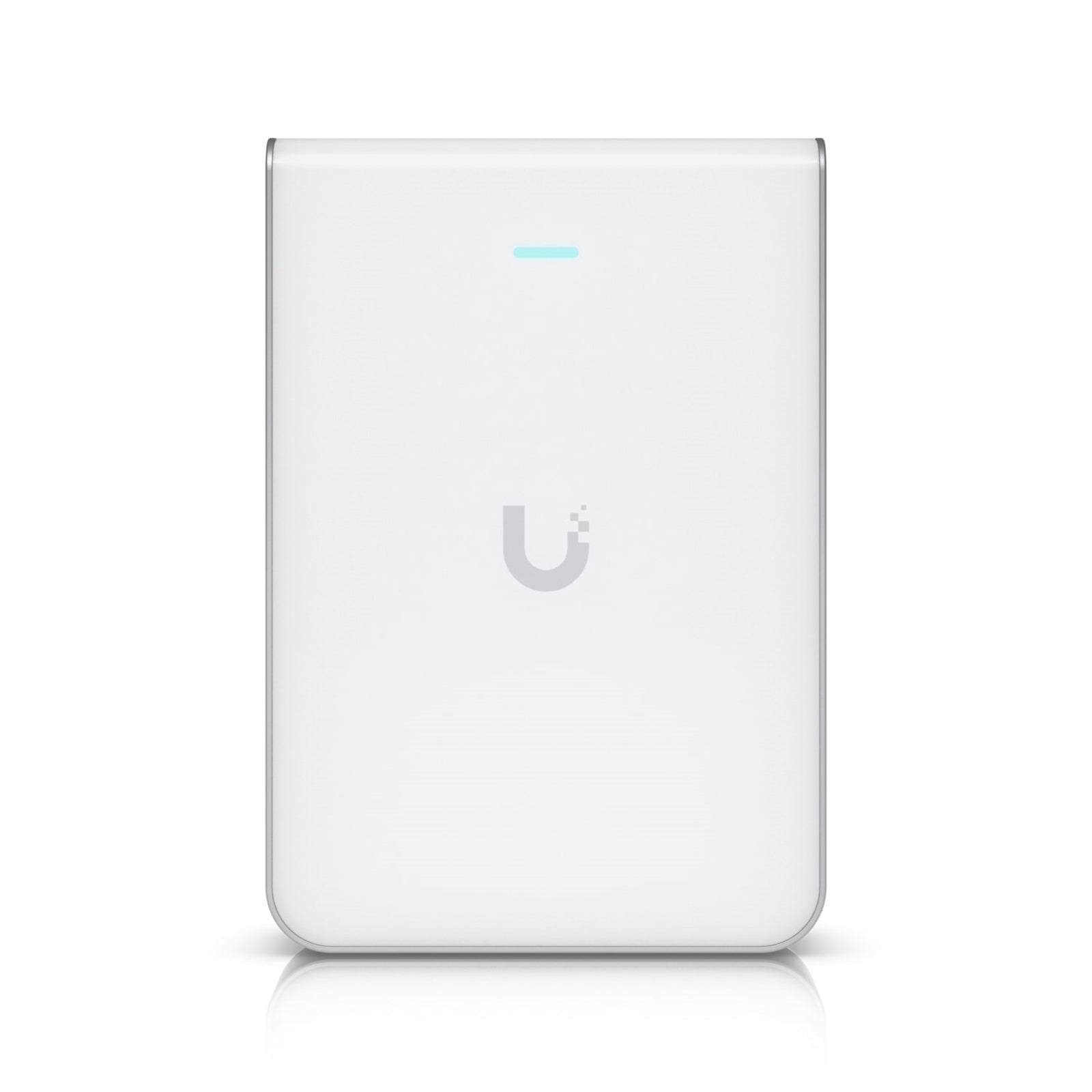

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point

The Ubiquiti U7-Pro-Wall delivers WiFi 7 performance in a wall-mounted form factor designed for high-density environments. This tri-band access point supports 2.4 GHz, 5 GHz, and 6 GHz bands with a combined throughput of 10.2 Gbps, providing reliable connectivity for 300+ concurrent devices across 140 m² (1,500 ft²) coverage area.

WiFi 7 Performance and Connectivity

Built on 802.11be technology, the U7-Pro-Wall features 6 spatial streams with 2x2 MIMO configuration across all three bands. The 2.4 GHz band delivers 688 Mbps, 5 GHz reaches 4324 Mbps, and the 6 GHz band achieves 5764 Mbps throughput. A 2.5 GbE RJ45 port provides sufficient backhaul for the aggregate wireless bandwidth.

Network Efficiency Technologies

OFDMA and MU-MIMO technologies optimize network performance in multi-device environments. The access point supports up to 8 BSSIDs per radio, 802.1Q VLAN tagging, and per-user rate limiting through advanced QoS. WPA-PSK and WPA-Enterprise security protocols (WPA/WPA2/WPA3/PPSK) protect network traffic, while guest traffic isolation keeps visitor access separate from primary networks.

Deployment and Power

Powered via PoE+ (802.3at) with a maximum consumption of 22W, the U7-Pro-Wall operates within a 44-57V DC range and connects through any UniFi PoE switch. The compact 150 x 103 x 36 mm polycarbonate and aluminum enclosure weighs 580g and includes a wall mounting plate. Optional table stand and flush mount accessories provide additional installation flexibility.

Management and Compatibility

The U7-Pro-Wall requires UniFi Network version 8.1 or later and UniFi OS version 3.2 or later for management. Configuration occurs through the UniFi Network application, providing centralized control over wireless settings, security policies, and performance monitoring. The access point operates in ambient temperatures from -30 to 60°C with 5-95% noncondensing humidity tolerance.

Technical Specifications

Mechanical
Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight: 580 g (1.3 lb)
Enclosure Material: Polycarbonate, aluminum

Hardware
Networking Interface: (1) 1/2.5 GbE RJ45 port
Power Method: PoE+
Supported Voltage Range: 44-57V DC
Max. Power Consumption: 22W

Wireless Performance
Max. TX Power: 2.4 GHz - 22 dBm, 5 GHz - 26 dBm, 6 GHz - 23 dBm
MIMO: 2x2 across all bands
Throughput Rate: 2.4 GHz - 688 Mbps, 5 GHz - 4324 Mbps, 6 GHz - 5764 Mbps
Antenna Gain: 2.4 GHz - 4 dBi, 5 GHz - 5 dBi, 6 GHz - 6 dBi

Software Features
WiFi Standards: 802.11a/b/g/n/ac/ax/be
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Concurrent Clients: 300+

Box Contents
1x U7-Pro-Wall access point
1x Mounting plate template level
1x Wall mount plate
All mounting hardware

• Type: Access Point
• Speed: WiFi 7
• Indoor or Outdoor: Indoor
• POE Capability: POE+
• Pack Size: Single
