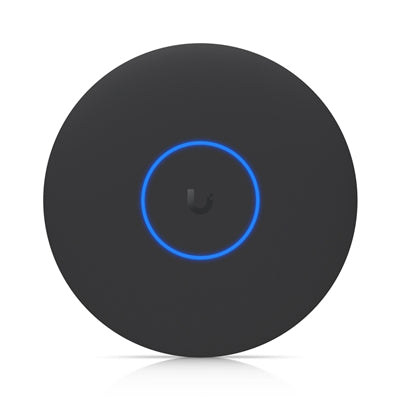

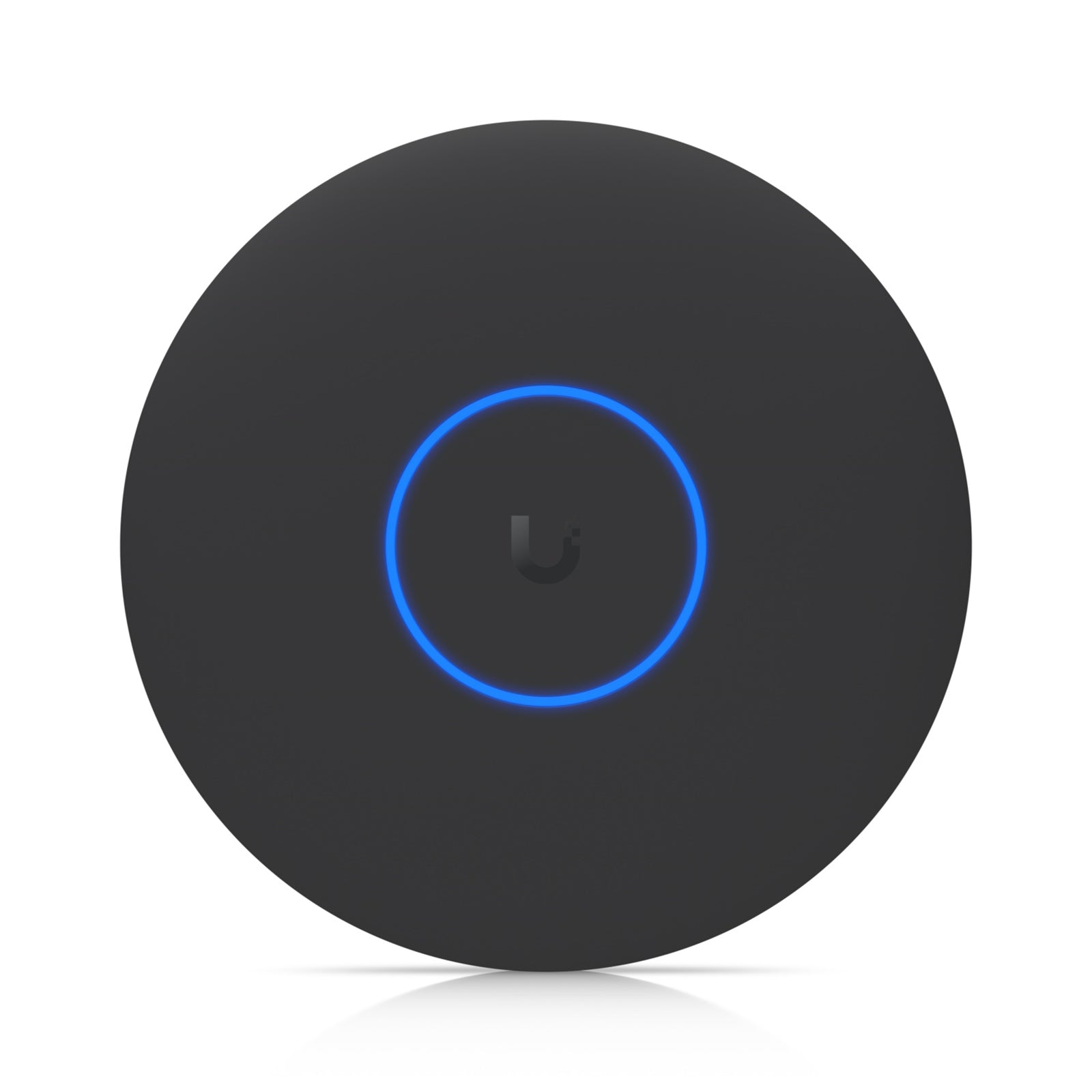

Ubiquiti UniFi 7 Pro XG WiFi 7 Access Point

The Ubiquiti U7-PRO-XG-B delivers enterprise-grade WiFi 7 performance with 10 Gigabit Ethernet connectivity. Designed for high-density environments, this ceiling-mounted access point supports 300+ simultaneous client connections across 140 m² (1,500 ft²) coverage area.

WiFi 7 Performance with 6GHz Support

Equipped with 6 spatial streams, this access point leverages the latest WiFi 7 (802.11be) standard to deliver exceptional wireless speeds. The 6GHz band achieves up to 5.8 Gbps with 320MHz bandwidth, while the 5GHz band reaches 4.3 Gbps with 240MHz bandwidth. The 2.4GHz band provides 688 Mbps for legacy device support.

10 Gigabit Ethernet Uplink

The U7-PRO-XG-B features a 10GbE RJ45 port, ensuring your wireless speeds aren't bottlenecked by network infrastructure. This multi-gigabit uplink supports 10/5/2.5/1 GbE connections, making it ideal for bandwidth-intensive applications and high-throughput environments.

Advanced Radio Management

This UniFi access point includes comprehensive wireless management features: 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management, band steering, and wireless meshing. Support for up to 8 BSSIDs per radio enables flexible network segmentation.

Enterprise Security and Control

Security features include RADIUS over TLS (RadSec), Private Pre-Shared Key (PPSK), client device isolation, and Passpoint (Hotspot 2.0) support. WiFi speed limiting and scheduling capabilities provide granular network control.

Technical Specifications

The access point measures 206mm diameter x 32.5mm depth and weighs 750g. Powered via PoE+ (42.5-57V DC) with 22W maximum consumption, it requires no separate power supply. The UV-stabilized polycarbonate and aluminum alloy enclosure ensures durability, with a stainless steel lite mount included for ceiling or wall installation.

Antenna gains of 6 dBi (6GHz), 5 dBi (5GHz), and 4 dBi (2.4GHz) provide optimal signal coverage. Maximum transmit power reaches 26 dBm on 5GHz, 24 dBm on 6GHz, and 23 dBm on 2.4GHz. The device supports 2x2 DL/UL MU-MIMO across all three bands for efficient multi-client performance.

Dimensions
d206 x 32.5 mm
(d8.1 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
6

Coverage Area
140 m2 (1,500 ft2)

Max. Client Count
300+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE+

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
5 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Max. Power Consumption
22W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
750 g (1.7 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC

• Type: High Density
• Speed: 5800Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
