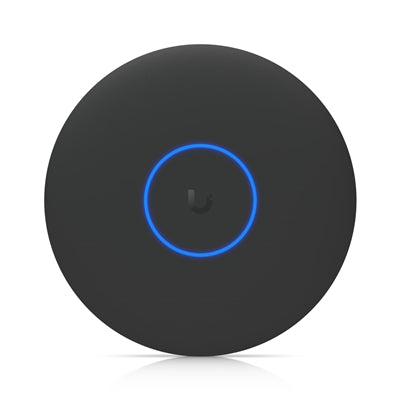

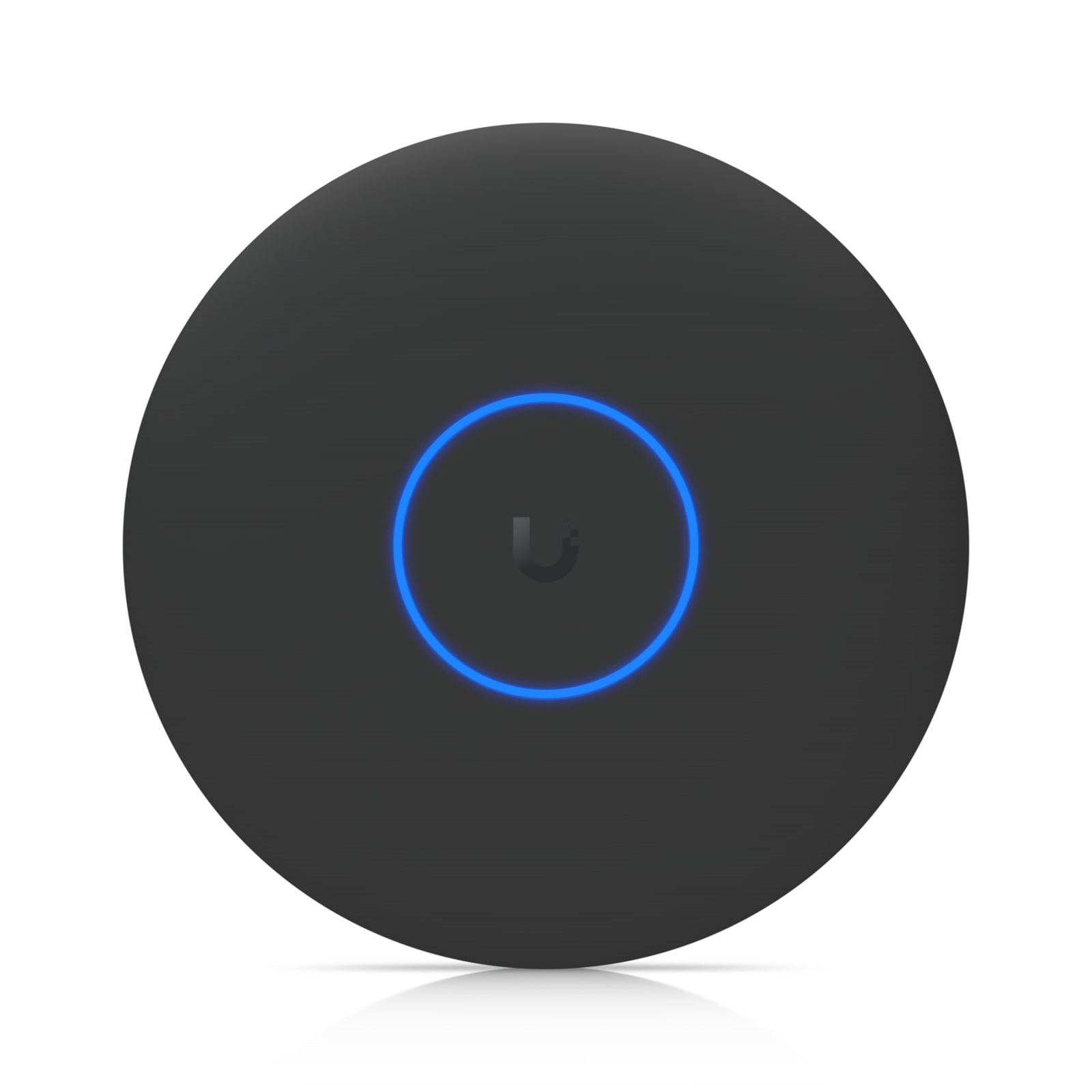

Ubiquiti U7-PRO-XGS UniFi 7 Pro XGS Access Point

The Ubiquiti U7-PRO-XGS represents professional-grade WiFi 7 infrastructure with 10 Gigabit Ethernet connectivity. This ceiling-mounted access point delivers 8 spatial streams across tri-band operation, supporting 6GHz, 5GHz, and 2.4GHz frequencies simultaneously for maximum network capacity.

WiFi 7 Performance Specifications

Built on the 802.11be standard, this access point achieves maximum data rates of 8.6 Gbps on 5GHz (BW240) and 5.8 Gbps on 6GHz (BW320). The 8-stream configuration includes 4x4 MU-MIMO on 5GHz and 2x2 MU-MIMO on both 6GHz and 2.4GHz bands. With support for 500+ concurrent client devices across 160 square meters of coverage area, the U7-PRO-XGS handles high-density environments including offices, conference centers, and educational facilities.

Real-Time Spectral Analysis

The dedicated spectral scanning radio continuously monitors the RF environment, enabling intelligent channel selection and interference mitigation. This real-time analysis optimizes network performance by automatically adjusting to changing wireless conditions without interrupting connected clients.

10 Gigabit Ethernet Uplink

The single 10GbE RJ45 port provides multi-gigabit backhaul capacity, eliminating network bottlenecks when multiple high-bandwidth clients operate simultaneously. Backward compatible with 5/2.5/1 GbE networks, the access point adapts to existing infrastructure while future-proofing your deployment. PoE++ (42.5-57V DC) delivers up to 29W power consumption through the same cable.

Advanced WiFi Features

802.11k Radio Resource Management, 802.11v BSS Transition Management, and 802.11r Fast Roaming ensure seamless client transitions across UniFi networks. Zero-Wait DFS expands available channel options, while band steering optimizes client distribution across frequency bands. The access point supports up to 8 BSSIDs per radio for network segmentation.

Enterprise Security and Management

RADIUS over TLS (RadSec), Private Pre-Shared Key (PPSK), and dynamic RADIUS-assigned VLAN capabilities provide granular access control. Client device isolation, WiFi speed limiting, and scheduled operation offer additional network management tools. Captive portal and Passpoint (Hotspot 2.0) support guest access scenarios.

Physical Specifications

Measuring 215mm diameter by 32.5mm height and weighing 800 grams, the UV-stabilized polycarbonate and aluminum alloy enclosure mounts to ceilings or walls using the included stainless steel Lite Mount. The compact profile integrates into architectural environments while the system LED provides status indication.

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink

Dimensions
d215 x 32.5 mm
(d8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m2 (1,750 ft2)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
PoE++

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz
5.8 Gbps (BW320)

5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
6 GHz
6 dBi

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power
6 GHz
24 dBm

5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Zero-Wait DFS
Yes

Advanced Radio Management
Yes

Real-Time Spectral Analysis
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
29W

Supported Voltage Range
42.5 - 57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
800 g (1.8 lb)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications
CE, FCC, IC

• Type: High Density
• Speed: 8600Mbps
• Indoor or Outdoor: Indoor
• POE Capability: 48v
• Pack Size: Single
