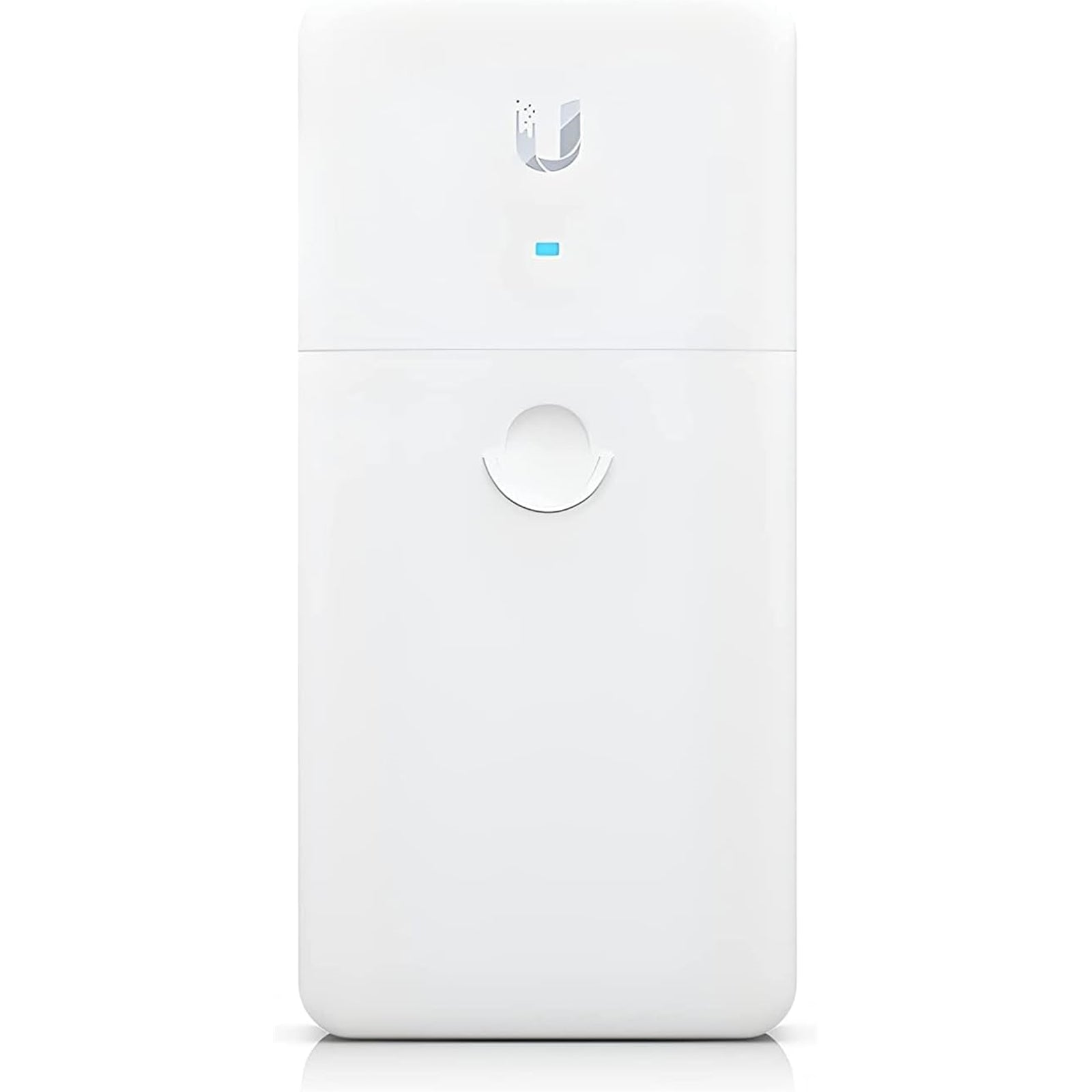

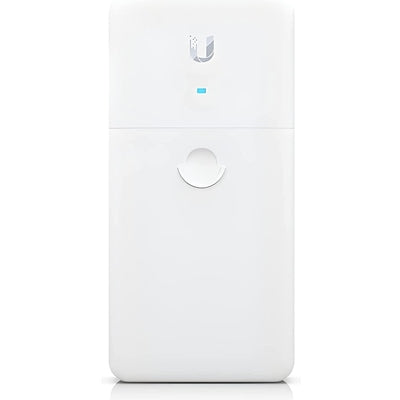

Ubiquiti UACC-LRE Long-Range Ethernet Repeater

The Ubiquiti UACC-LRE is a 1-port gigabit Ethernet repeater designed to extend your network infrastructure beyond standard cable length limitations. This PoE+ extender receives 802.3at power input and provides passthrough PoE output, allowing you to deploy access points and IP cameras at distances that would otherwise require additional switches or power sources.

Network Extension Capabilities

Equipped with two GbE RJ45 ports, the UACC-LRE supports daisy-chaining multiple units to reach remote locations. Each unit extends your network connection while maintaining gigabit speeds and passing through PoE power to connected devices. The adapter operates on 2-pair PoE (pins 1, 2+; 3, 6-) with a voltage range of 37 to 57VDC, consuming only 1.5W excluding PoE output.

Weatherproof and Surge Protected Design

Built with UV-stabilized polycarbonate enclosure and stainless steel mounting hardware, the UACC-LRE achieves IPX5 weatherproofing for outdoor deployments. The unit provides 10kA+ surge protection with ESD/EMP protection rated at ±30kV air/contact, DC sparkover voltage of 90V at 100V/s, and maximum impulse sparkover voltage of 700V at 1kV/µs. This protection safeguards your network equipment from electrical damage and weather-related issues.

Extreme Temperature Operation

The UACC-LRE functions reliably in operating temperatures from -40°C to 80°C (-40°F to 176°F) with humidity tolerance of 10-95% non-condensing. This temperature range makes it suitable for installations in harsh climates where standard networking equipment would fail.

LED Status Indicators

The device features multiple LED indicators for system monitoring: blue LED indicates power ON status, green LED shows 1 Gbps connection (amber for 10/100 Mbps), and amber PoE LED confirms passthrough PoE output is active. These visual indicators simplify troubleshooting and installation verification.

Specifications

Mechanical

Dimensions
196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5 inch)

Weight
350 g (12.3 oz)

Enclosure material
UV stabilised polycarbonate

Mounting material
Stainless steel

Weatherproofing
IPX5

Hardware

Networking interfaces
GbE RJ45 ports

Power method
802.3at PoE+ 2-pairs (pins 1, 2+; 3, 6-)

Max power consumption (excluding PoE out)
1.5W

Voltage range
37 to 57VDC

PoE interfaces
Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)

ESD/EMP protection
Air/contact: ± 30kV

DC sparkover voltage
90V at 100V/s

Max. impulse sparkover voltage
700V at 1kV/µs

Discharge current
10kA+

Modes
Long-range indoor
Outdoor ethernet repeater

Operating temperature
-40° to 80°C (-40°F to 176°F)

Operating humidity
10 - 95% non-condensing

Certifications
CE, FCC, IC

LEDs

System
Blue: power ON

Ethernet
Green: 1 Gbps, Amber: 10/100 Mbps

PoE
Amber: passthrough PoE out

• Product Type: Ethernet Extender
• POE Capability: 48v
• Device Support: Universal
