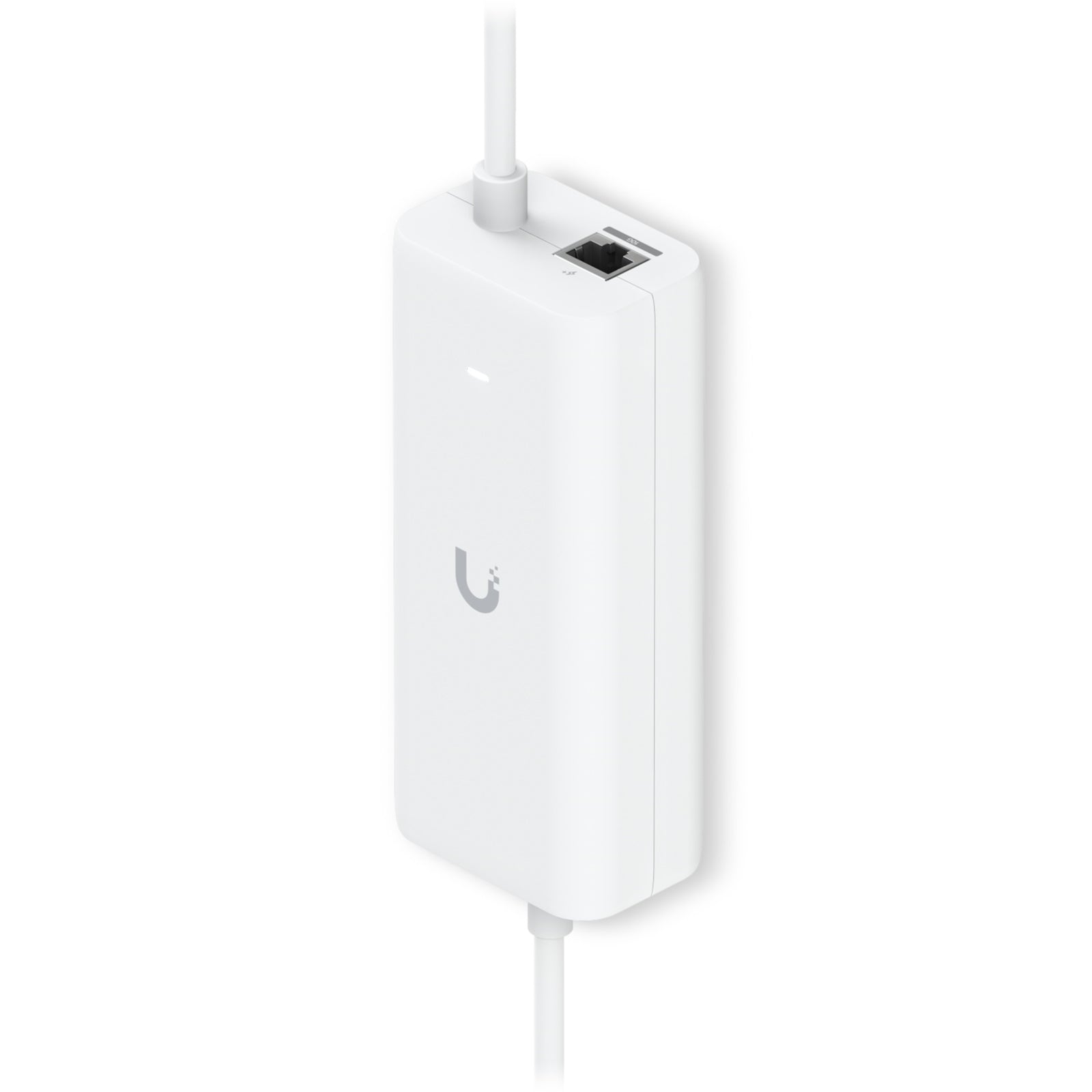

Ubiquiti UACC-POE+-USBC PoE+ to USB-C Power Adapter

The Ubiquiti UACC-POE+-USBC is an AC adapter with integrated Power over Ethernet, designed to enable UniFi Cloud Gateway devices to support PoE output on a single port. This adapter delivers up to 30W of PoE+ power while providing simultaneous USB-C power delivery.

Key Features

This PoE+ adapter delivers 30W of power through its integrated PoE+ output, supporting 48V @ 0.65A for network devices while simultaneously providing 5V @ 5A USB-C power output. The dual-output design makes it ideal for powering UniFi Cloud Gateway devices that require both power and PoE passthrough capabilities.

The adapter supports up to 10 Gigabit Ethernet connectivity through its RJ45 shielded socket, ensuring high-speed data transmission alongside power delivery. With 82% efficiency and a switching frequency of 65 kHz, the adapter operates reliably across 100-240V AC input voltage ranges.

Installation and Mounting Options

The UACC-POE+-USBC supports multiple mounting configurations including wall mount, DIN rail mount, and floating mount installations (mounting hardware sold separately). The compact design measures 146 x 62 x 42 mm and weighs 358g, making it suitable for various installation environments. A lockable latch design ensures power cord security in permanent installations.

Cable Specifications

The adapter includes a 150 cm Type-C/Ethernet cable and a 180 cm power cord, providing flexibility for equipment placement. The 4-pair powering configuration uses pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) for reliable power delivery.

Protection and Reliability

Built-in surge protection includes both difference and common mode protection with clamping protection at 11V for data and 60V for power. The adapter handles maximum surge discharge of 1500A on power lines and 36A peak pulse current on data lines, with response time under 1 nanosecond. Output ripple is maintained at 1% maximum, with line and load regulation both under 5%.

Technical Specifications

Dimensions: 146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
Weight: 358 g (12.6 oz)
Cable Length: Type-C/Ethernet: 150 cm (4.9 ft) | Power cord: 180 cm (5.9 ft)
Output Voltage: Type-C: 5V@ 5A | PoE+: 48V@ 0.65A
Gigabit LAN Port: Up to 10 GbE
Rated Voltage: 100—240V AC @ 50/60Hz
Input Current: 1.5A max.
Inrush Current: 120A
Efficiency: 82%
Output Ripple: 1% max.
Switching Frequency: 65 kHz
Line Regulation: < 5%
Load Regulation: < 5%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / POE: RJ45 shielded socket
Surge Protection: Difference and common mode
Clamping Protection: 11V data, 60V power
Max. Surge Discharge: 1500A power
Peak Pulse Current: 36A data
Shunt Capacitance: <5 pF Data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL, UKCA, CCC, KC, RoHS

• Product Type: POE Injector
• POE Capability: 48v
• Device Support: Universal
