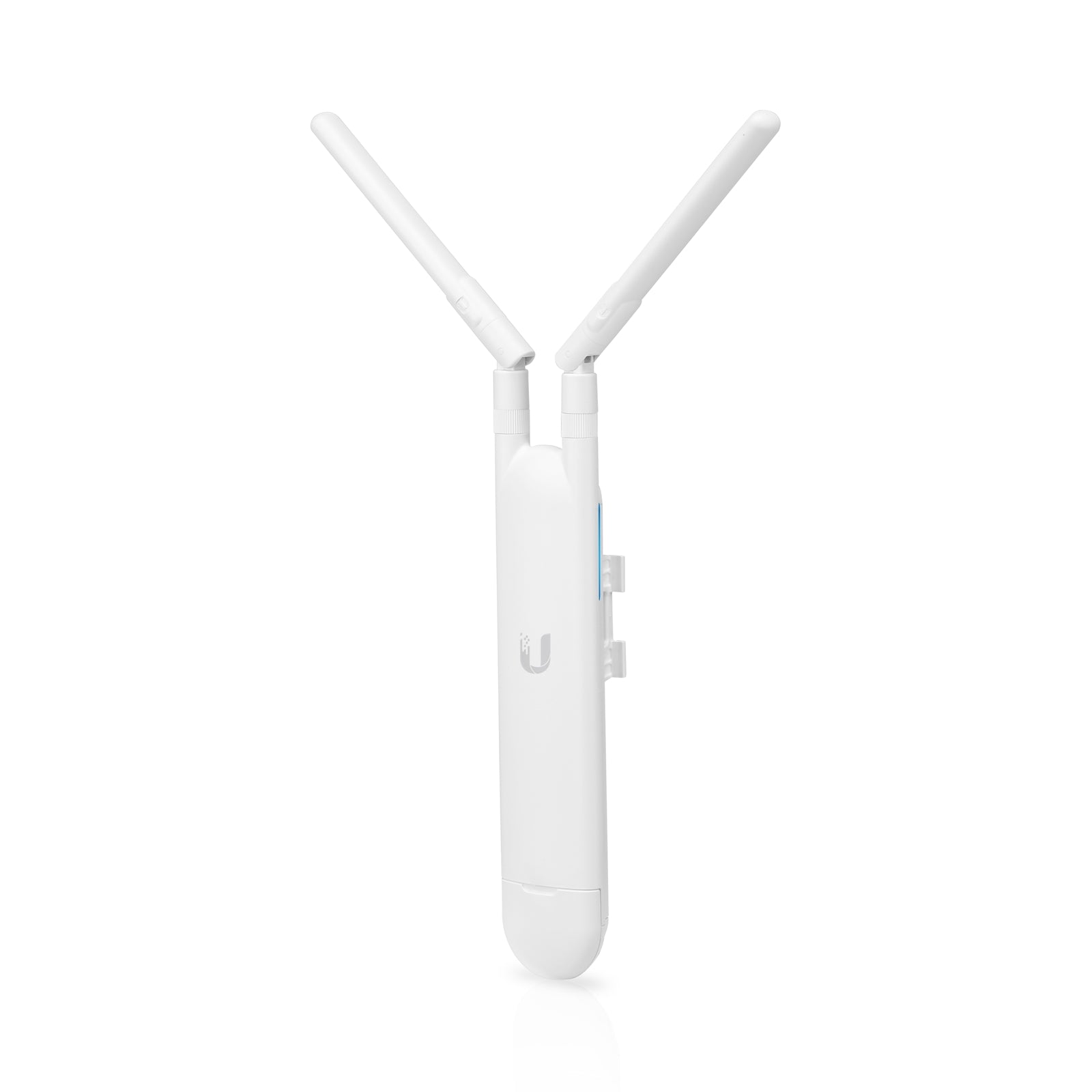

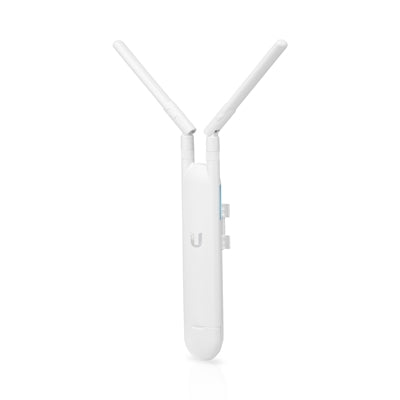

Ubiquiti UAP-AC-M UniFi AC Mesh Wireless Access Point

The Ubiquiti UAP-AC-M delivers enterprise-grade 802.11AC wireless connectivity with plug-and-play mesh technology for seamless network expansion. This dual-band access point combines AC1300 performance with weather-resistant construction for flexible indoor and outdoor deployment.

Dual-Band Wireless Performance

Equipped with 2.4GHz (300 Mbps) and 5GHz (867 Mbps) radios, the UAP-AC-M provides aggregate speeds up to 1167 Mbps. The dual-band operation reduces interference while maximizing throughput for high-density environments requiring reliable wireless coverage.

Adjustable Antenna System

Adjustable dual-band omni-directional antennas optimize signal coverage for specific deployment scenarios. The included Fast-Mount system enables rapid installation on poles, walls, or Ubiquiti high-gain antennas, providing mounting flexibility for various environments.

Compact Weather-Resistant Design

Measuring 353 x 46 x 34.4 mm, the UniFi AC Mesh features a compact cylindrical form factor suitable for discreet indoor/outdoor installation. The weather-resistant housing protects internal components from environmental exposure while maintaining consistent wireless performance.

Flexible Power Options

The UAP-AC-M supports both 802.3af standard PoE and 24V passive PoE through its single Gigabit Ethernet port. Power the access point using an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter for installation flexibility without requiring nearby electrical outlets.

UniFi Network Controller Integration

Managed through the UniFi Network Controller software, the UAP-AC-M integrates into scalable wireless networks spanning single sites or multiple locations. The centralized interface provides unified configuration, monitoring, and management across all UniFi devices from a single dashboard accessible via local network or internet connection.

Technical Specifications

Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af

• Type: Mesh
• Speed: AC1300
• Indoor or Outdoor: Indoor/Outdoor
• POE Capability: 24/48v
• Pack Size: Single
