Ubiquiti UniFi Building-to-Building Bridge - Professional Point-to-Point Networking Solution

The Ubiquiti UBB delivers 1.7+ Gbps bi-directional connectivity using 60 GHz 802.11ad technology with 5 GHz radio redundancy. This complete two-pack kit provides everything needed for high-throughput point-to-point networking up to 500 meters.

60 GHz Primary Link with 5 GHz Failover Protection

Operating on the 60 GHz frequency band using 802.11ad protocol, the UniFi Building-to-Building Bridge maintains gigabit speeds for demanding network applications. The integrated 5 GHz backup radio automatically engages if the primary 60 GHz link experiences interference, ensuring continuous connectivity between locations.

UniFi Controller Integration for Seamless Management

Integration with the UniFi Controller provides centralized configuration and monitoring of both bridge devices. Network administrators can manage the complete point-to-point link from a single interface, simplifying deployment and ongoing maintenance across multiple sites.

LED-Guided Installation Process

The built-in LED indicator enables precise alignment during installation. Adjust the UBB position using the included ball joint mount while monitoring signal strength through the LED feedback system, ensuring optimal performance between bridge endpoints.

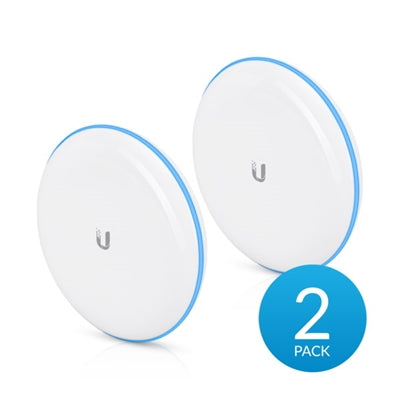

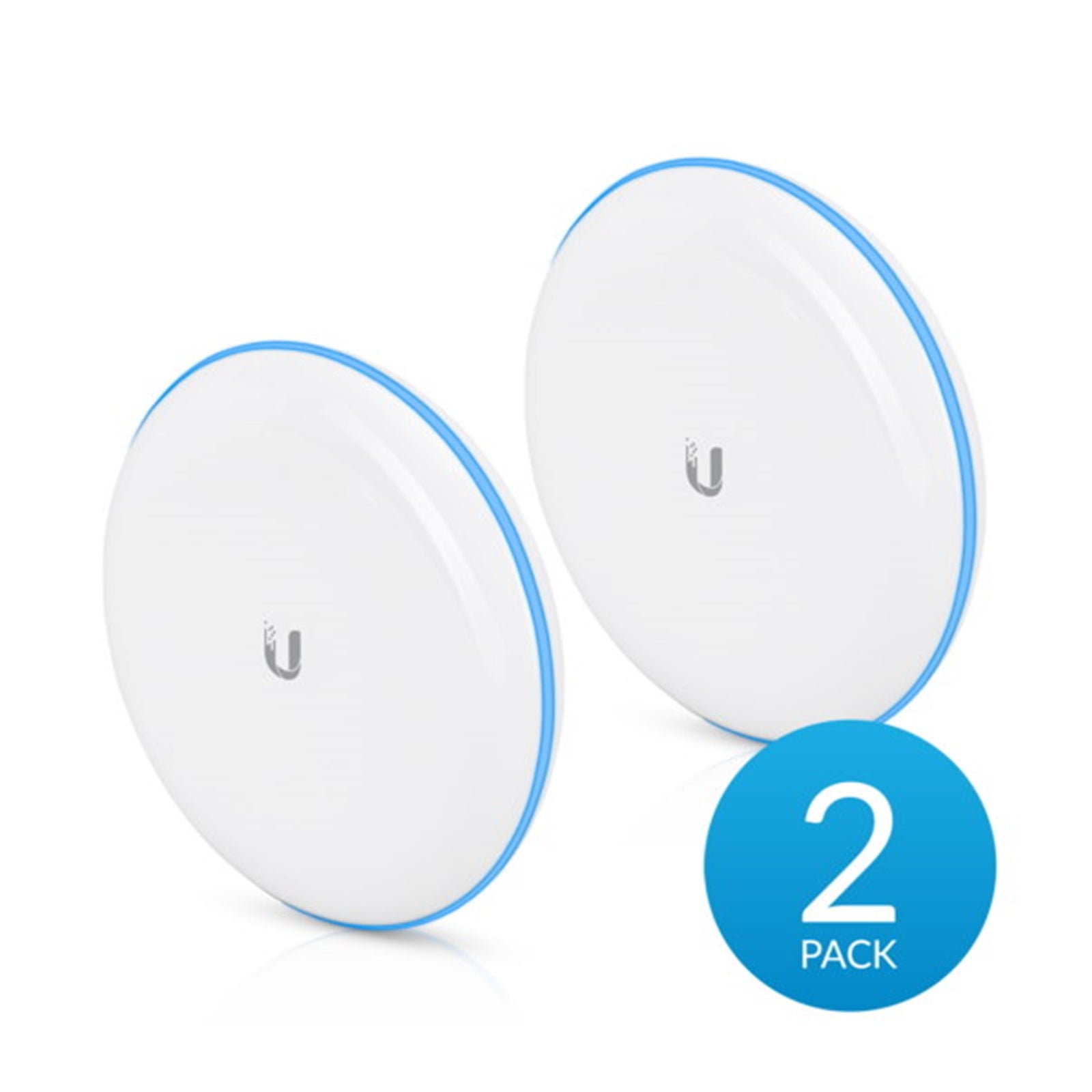

Complete Installation Kit Included

Each package contains two UniFi Building-to-Building Bridge units, ball joint mounts, lock rings, metal straps, Gigabit PoE adapters (48V, 0.32A) with mounting brackets, and power cords. The plug-and-play design enables rapid deployment without additional hardware purchases.

Technical Specifications

Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
Weight: 376 g (13.3 oz)
GPS: Yes
Max TX Power: 25 dBm (5 GHz)
Interfaces: (1) 10/100/1000 Ethernet Port, Bluetooth
Enclosure: UV-Resistant Polycarbonate
Power Method: 802.3af Supported, Passive Power over Ethernet (48V)
Power Supply: UniFi PoE Switch or 48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption: 11W
Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Mounting: Pole-Mount (Kit Included), Wall-Mount (Not Included)
ESD/EMP Protection: 24kV Contact/Air
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Outdoor-Rated Construction

The UV-resistant polycarbonate enclosure withstands extreme temperatures from -40 to 70°C and wind speeds up to 200 km/h. With 24kV ESD/EMP protection and weatherproof design, the UBB operates reliably in challenging outdoor environments.

• Type: Long Range
• Speed: AC1750
• Indoor or Outdoor: Outdoor
• POE Capability: 48v
• Pack Size: 2 Pack
