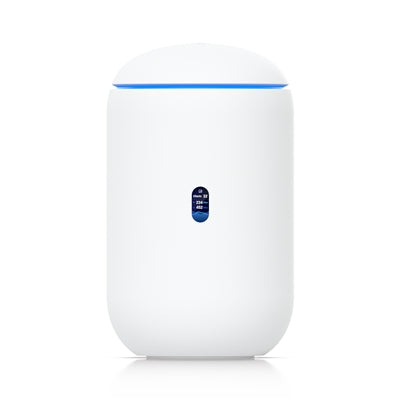

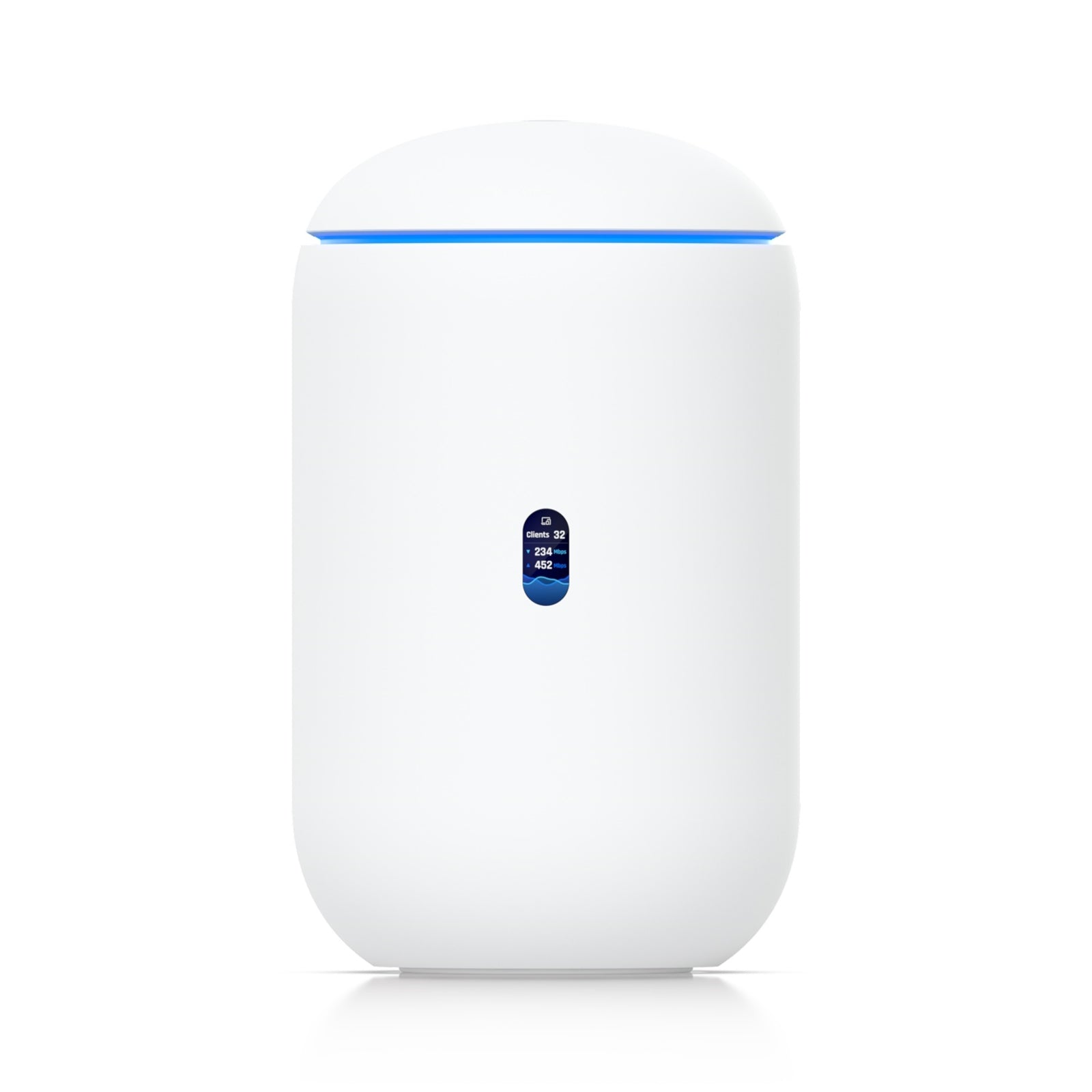

Ubiquiti UDR7 UniFi Dream Router 7 - Complete Network Solution

The Ubiquiti UDR7 UniFi Dream Router 7 combines enterprise-grade networking capabilities in a compact desktop form factor. This all-in-one device integrates a WiFi 7 access point, 10G cloud gateway, 2.5GbE PoE switch, and NVR functionality into a single unified platform.

WiFi 7 Performance and Connectivity

Equipped with 802.11be WiFi 7 technology, the UDR7 delivers throughput speeds up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. The tri-band 2x2 MU-MIMO configuration supports 300+ simultaneous users with 4 BSSIDs per radio. Integrated antennas provide 6 dBi gain on 6 GHz, 7 dBi on 5 GHz, and 5 dBi on 2.4 GHz bands.

High-Speed Network Ports

The UDR7 features dual WAN options with one 10G SFP+ port and one 2.5 GbE RJ45 port for flexible internet connectivity. Three additional 2.5 GbE RJ45 LAN ports provide high-bandwidth connections, with one port offering 15.4W PoE output for powering compatible devices. The 10G SFP+ port enables fiber connections for maximum throughput.

Advanced Security and Firewall

Built-in security features include stateful firewall, application-aware Layer 7 filtering, and IDS/IPS with 2.3 Gbps throughput. The system supports 20,000+ IDS/IPS signatures with CyberSecure, deep packet inspection (DPI), zone-based firewall filtering, content filtering, and ad blocking. Advanced NAT options include SNAT, DNAT, masquerade, NAT pooling, and 1-to-1 NAT configurations.

Integrated NVR and Surveillance

The pre-installed 64GB microSD card provides NVR storage for UniFi Protect cameras. The system can manage up to 5 HD cameras, 2 2K cameras, or 1 4K camera simultaneously. A microSD expansion slot allows for additional storage capacity when needed.

VPN and SD-WAN Capabilities

Comprehensive VPN support includes Site Magic, IPsec, OpenVPN, WireGuard, and L2TP protocols. VPN server functionality offers Identity Endpoint one-click VPN and Teleport zero-configuration VPN. License-free SD-WAN enables multi-WAN load balancing with policy-based routing and automatic failover.

UniFi Application Suite

The UDR7 runs the complete UniFi application suite including Network, Protect, Access, Talk, and Connect. Manage 30+ UniFi devices through a single interface with advanced features like OSPF dynamic routing, advanced QoS, multicast DNS, integrated RADIUS server, and RadSec support.

Hardware Specifications

Powered by a quad-core ARM Cortex-A53 processor at 1.5 GHz with 3GB system memory, the UDR7 handles complex network operations efficiently. The compact polycarbonate enclosure measures 110 x 184.1 mm and weighs 1.1 kg. A 0.96" LCM status display provides at-a-glance system information. Management options include Ethernet and Bluetooth connectivity.

The device supports universal AC input (100-240VAC, 50/60 Hz) with maximum power consumption of 26W excluding PoE output. CE, FCC, and IC certifications ensure compliance with international standards.

Dimensions
d110 x 184.1 mm
(d4.3 x 7.3")

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
30+

Managed Cameras
(5) HD
(2) 2K
(1) 4K

Simultaneous Users Connected
300+

Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45

LAN Ports
(3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
2000

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput
6 GHz
5.7 Gbps

5 GHz
4.3 Gbps

2.4 GHz
688 Mbps

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz
6 dBi

5 GHz
7 dBi

2.4 GHz
5 dBi

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

NVR Storage
Pre-installed 64GB microSD for NVR

Expansion Slot
MicroSD Card

PoE Budget
15.4W

Voltage Range POE Mode
44-57V

Max. Power Consumption
26W (Excluding PoE output)

Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3 GB

Weight
1.1 kg (2.4 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96" status display

Management
Ethernet
Bluetooth

System LEDs
System

Certifications
CE, FCC, IC

• Ports: 4
• Firewall: Yes
• Rack Mountable: No
