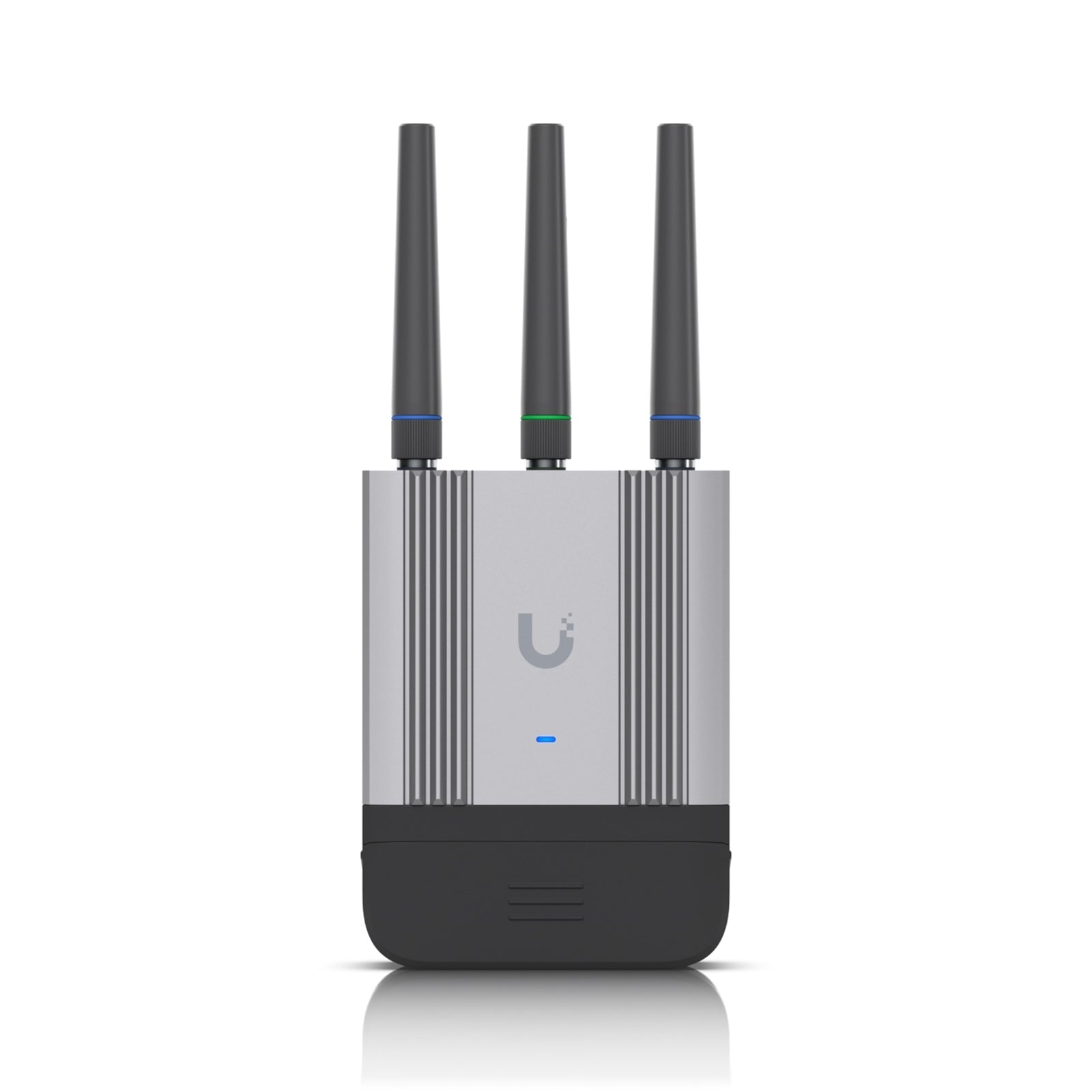

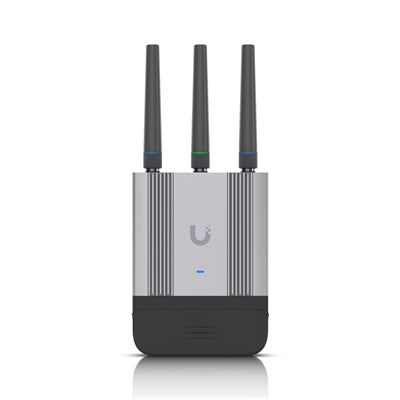

Ubiquiti UniFi Mobile Router Industrial - Ruggedized 4G LTE Connectivity

The Ubiquiti UMR-INDUSTRIAL UniFi Mobile Router delivers carrier-unlocked LTE Cat 4 connectivity in a compact, ruggedized design engineered for demanding indoor and outdoor IoT deployments. With IP66 weatherproofing when using the included outdoor cover, this industrial-grade router withstands harsh environmental conditions while maintaining reliable network performance.

Industrial-Grade LTE Connectivity

Supporting LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, this mobile router provides robust wireless connectivity across multiple frequency bands including B1, B3, B7, B8, B20, and B28. The dual external LTE antennas with SMA connectors ensure optimal signal reception, while integrated GPS functionality enables precise location tracking for mobile deployments.

Versatile Network Interface Options

Equipped with two Gigabit Ethernet RJ45 ports, the UMR-INDUSTRIAL seamlessly integrates into existing network infrastructures. The PoE input accepts power from UniFi PoE switches (48-54V DC), while the PoE output delivers up to 10W to connected devices when powered by a PoE+ switch. Alternative power options include USB Type-C (5V DC) and a 4-pin ATX DC socket (9-30V DC), providing deployment flexibility across various installation scenarios.

WiFi 4 Dual-Band Performance

The integrated WiFi 4 (802.11 b/g/n) radio operates on the 2.4GHz band with 2x2 MIMO configuration, delivering wireless speeds up to 300 Mbps. With 22 dBm maximum transmit power and dual RP-SMA WiFi antennas, the router provides reliable wireless coverage for connected IoT devices and mobile clients.

Flexible Mounting Solutions

The included mounting hardware supports DIN rail, wall, and pole installation (1-2" pipe diameter), accommodating diverse deployment environments. The polycarbonate and aluminum construction ensures durability, while the compact form factor (217 x 94 x 32 mm with antennas and outdoor cover) facilitates installation in space-constrained locations. Wind loading capacity of 38.8 N at 200 km/h confirms structural integrity in exposed outdoor installations.

Technical Specifications

Dimensions
Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3")
With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")

Weight
Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate

Pole Mount Diameter
1–2" on pipe outer diameter

Wind Loading
38.8 N at 200 km/h (8.7 lbf at 125 mph)

Weatherproofing
Device with outdoor cover: IP66

Management Interface
Ethernet
WiFi

Networking Interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4

PoE Interface
(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.

Power Supply
UniFi PoE switch (48—54V DC)
USB Type-C (5V DC)
4-pin ATX DC power socket (9—30V DC)

Max. Power Consumption
12.5W

SIM
nano-SIM (4FF)

LTE Bands
B1, B3, B7, B8, B20, B28

3G Bands
B1, B8

LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps

WiFi Standards
802.11 b/g/n, WiFi 2.4G, 20/40 MHz

Max. WiFi TX Power
22 dBm

WiFi MiMo
2x2

GPS
Yes

Antenna SMA Ports
(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector, supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors

External Antennas
(2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors

LED
Status: blue/white

Button
Factory reset

Mounting
DIN rail/wall/pole mount (Included)

Supported WiFi Data Rates
802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)

• Ports: 2
• Firewall: No
• Rack Mountable: No
