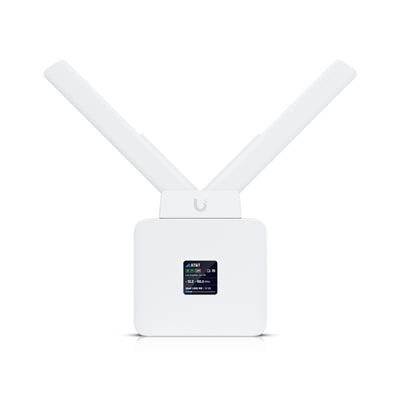

Ubiquiti UniFi 4G LTE Mobile Router (UMR) - EU Version

The Ubiquiti UMR delivers managed mobile WiFi connectivity with plug-and-play LTE integration for any environment. This compact router combines Category 4 LTE capability with dual Gigabit Ethernet ports and WiFi 2.4 GHz, providing flexible network deployment options where traditional fixed-line connectivity is unavailable or impractical.

LTE Connectivity and Network Performance

The UMR supports LTE Category 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps. Compatible with EU LTE bands B1, B3, B7, B8, B20, and B28, plus 3G bands B1 and B8. Bring your own nano-SIM card from any compatible carrier to establish immediate mobile data connectivity. The included external LTE antenna with TS9 male connectors ensures reliable signal reception.

Dual Gigabit Ethernet and WiFi

Two GbE RJ45 ports provide wired network connectivity, with one PoE input and one PoE output (maximum 10W) for powering downstream devices. The integrated WiFi supports 802.11 b/g/n standards on 2.4 GHz with 20/40 MHz channel width, utilizing an internal antenna for wireless client connectivity.

UniFi Management Integration

Managed through the UniFi Network Controller via Ethernet or WiFi interface, the UMR integrates seamlessly into existing UniFi deployments. The 1.3-inch LCM display provides at-a-glance status information, while GPS capability enables location tracking and network management.

Flexible Power and Mounting Options

Multiple power input options include UniFi PoE switch (48-54V DC, 0.625A), USB Type-C (5V DC, 3A), or 4-pin ATX DC power socket (9V DC, 1A) with maximum power consumption of 9W. The polycarbonate enclosure measures 220.6 x 89.8 x 28.8 mm and weighs 257g without mount. Included mounting hardware supports both DIN rail and wall installation.

Technical Specifications

Built on a 74 Kc MIPS processor running at 775 MHz with 128 MB DDR2 memory, the UMR provides reliable performance for mobile network applications. CE, UKCA, and GCF certified for European markets.

Dimensions
220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")

Weight
Without mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)

Enclosure Material
Polycarbonate

Mount Material
Wall mount: polycarbonate
DIN rail mount: steel

Processor
74 Kc MIPS processor at 775 MHz

Memory Information
128 MB DDR2

Management Interface
Ethernet
WiFi

Networking Interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi

POE Interface
(1) PoE input
(1) PoE output (Max. 10W)

SIM
Nano SIM

LTE Bands
B1, B3, B7, B8, 20, B28

3G Bands
B1, B8

LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps

WiFi Standards
802.11 b/g/n, WiFi 2.4G, 20/40 MHz

GPS
Yes

Antennas
(1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna

Power Supply
UniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin ATX DC power socket (9V DC, 1A)

Max. Power Consumption
9W

LCM Display
1.3" screen

Button
Factory Reset

Mounting
DIN rail/wall (Included)

Certifications
CE, UKCA, GCF

• Ports: 2
• Firewall: No
• Rack Mountable: No
