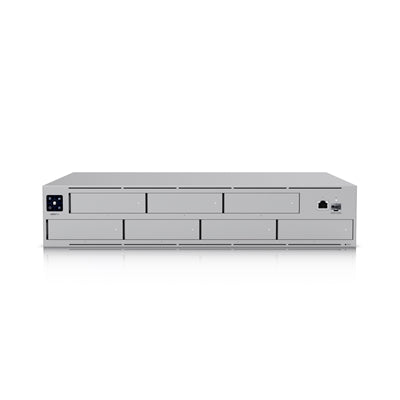

Ubiquiti UNAS-PRO 7-Bay Network Attached Storage

The Ubiquiti UNAS-PRO delivers enterprise-grade network storage with 10Gbps performance in a compact 2U rack-mount form factor. Designed for large-scale file storage and sharing across UniFi networks, this NAS combines seven drive bays with high-speed connectivity for demanding business environments.

High-Performance Network Connectivity

Equipped with one 10G SFP+ uplink port and one GbE RJ45 port, the UNAS-PRO handles high-bandwidth data transfers across your network infrastructure. The 10 Gigabit SFP+ connection ensures rapid file access and sharing for multiple simultaneous users, while the quad-core ARM Cortex-A57 processor running at 1.7 GHz maintains consistent performance under heavy workloads.

Flexible Storage Configuration

Seven hot-swappable drive bays accommodate both 2.5-inch and 3.5-inch HDDs or SSDs, providing flexibility for storage capacity and performance requirements. RAID storage technology protects your data through redundancy options, while the 135W power budget supports multiple high-capacity drives simultaneously. The 8GB system memory ensures smooth operation across file management tasks.

Rack-Mount Design with Integrated Management

The 2U steel enclosure fits standard 19-inch server racks, measuring 442 x 325 x 87 mm. The integrated 1.3-inch touchscreen provides direct access to management functions without requiring network connectivity. Bluetooth 4.1 support enables wireless configuration and monitoring from compatible devices.

Enterprise Power and Reliability

The internal 200W AC/DC power supply accepts universal input from 100-240V AC, with a maximum consumption of 160W. UniFi Power Backup compatibility provides seamless integration with redundant power systems through the USP-RPS DC input (11.5V DC, 13.91A), ensuring continuous operation during power fluctuations.

Technical Specifications

Storage: 7 x 2.5/3.5-inch drive bays with RAID support
Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
Memory: 8GB system RAM
Network Ports: 1 x 10G SFP+, 1 x GbE RJ45
Management: 1.3-inch touchscreen, Bluetooth 4.1, Ethernet in-band
Power Supply: 200W internal, universal 100-240V AC input
Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4 inches)
Weight: 9.2 kg (20.3 lb) without brackets, 9.5 kg (20.8 lb) with brackets
Protection: ESD/EMP rated ± 12kV air, ± 8kV contact
Certifications: FCC, CE, IC

The UNAS-PRO integrates seamlessly into UniFi ecosystems, providing centralized storage management through familiar UniFi interfaces. The SGCC steel construction ensures durability in data center and server room environments.

• Product Type: NAS
• POE Capability: No
• Device Support: UniFi
