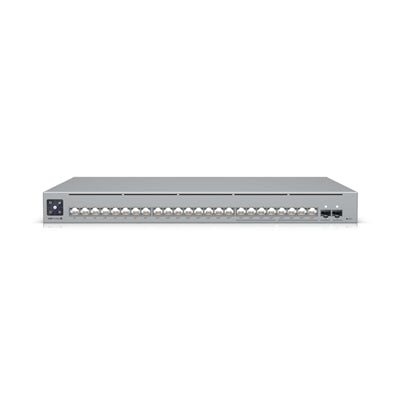

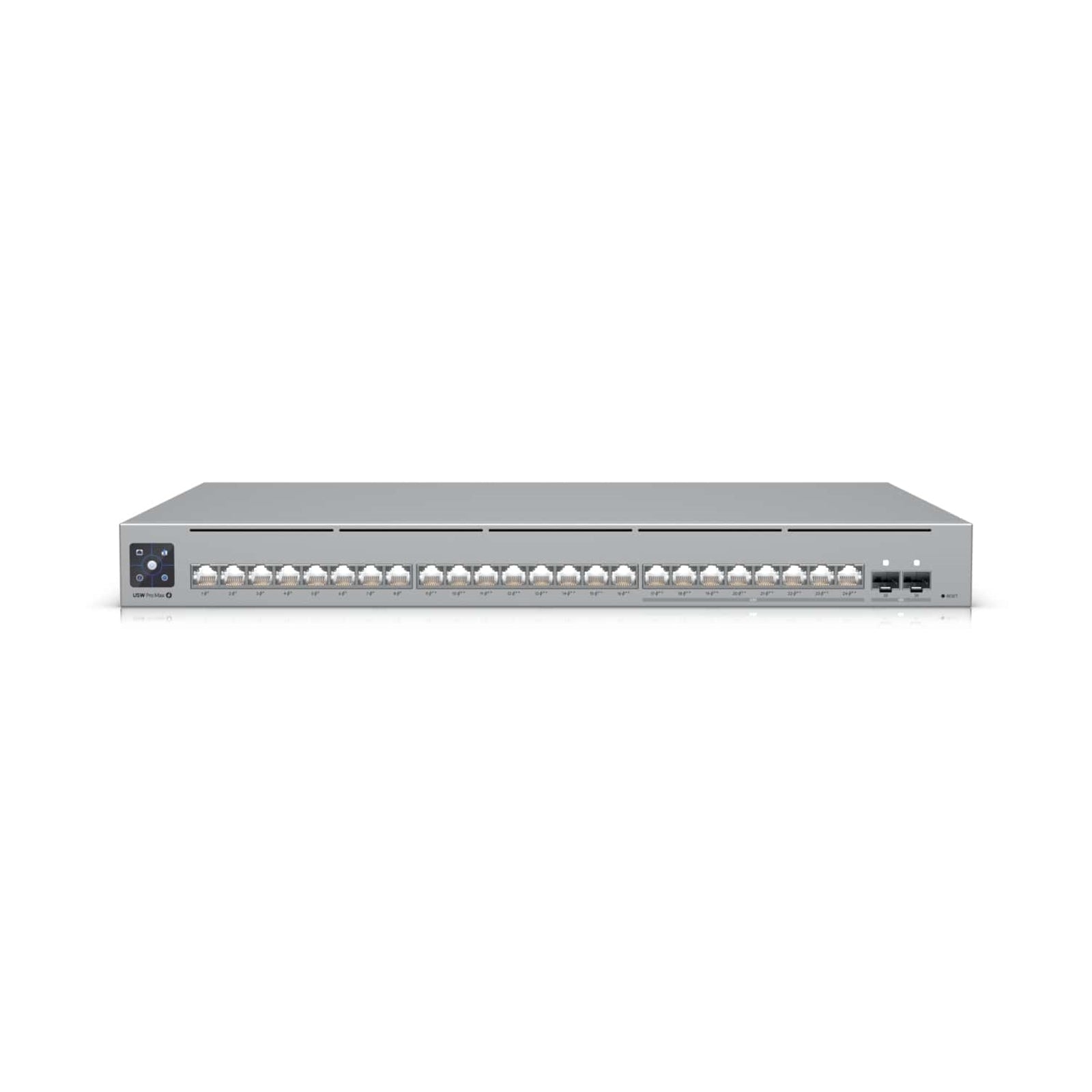

Ubiquiti UniFi Pro Max 24-Port PoE++ Network Switch

The USW-Pro-Max-24-PoE is a Layer 3 Etherlighting switch engineered for high-power PoE++ output and demanding network environments. This 24-port managed switch delivers 400W total PoE availability with advanced port illumination technology for simplified network management.

Key Features

• 24-port managed switch configuration
• 8 x 2.5 GbE PoE++ ports for high-speed device connectivity
• 16 x GbE ports: 8 PoE+ and 8 PoE++ ports
• 2 x 10G SFP+ ports for high-speed uplinks
• Layer 3 switching capabilities
• Etherlighting ports with intelligent illumination
• DC power backup ready
• 400W total PoE availability

Etherlighting Technology

The USW-Pro-Max-24-PoE features Etherlighting Ports that illuminate to indicate port location, speed/link status, and native VLAN/network identification. When paired with UniFi Etherlighting Patch Cables, brightness is optimized for easier port identification during installation and troubleshooting.

Performance Specifications

This switch delivers 56 Gbps total non-blocking throughput with 112 Gbps switching capacity. The versatile port configuration includes 8 x 2.5 GbE PoE++ ports and 16 x GbE ports (8 PoE+ and 8 PoE++), enabling flexible power delivery up to 60W per port for connected devices. Two 10G SFP+ ports provide high-speed uplinks for data-intensive operations.

Power Delivery

The switch provides 400W total PoE availability with flexible power options: PoE (15.4W), PoE+ (30W), and PoE++ (60W) per port. Universal AC input supports 100-240V, 50/60 Hz, with USP RPS DC input backup capability. Maximum power consumption is 50W excluding PoE output.

Technical Specifications

Mechanical

Weight & Dimensions
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)

Enclosure material
SGCC steel

Hardware

Management interface
Ethernet In-Band

Networking interface
(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

PoE interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput
56 Gbps

Switching capacity
112 Gbps

Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input

Power supply
AC/DC, internal, 450W

Supported voltage range
100—240V AC

Max. power consumption
50W (Excluding PoE output)

Total available PoE
400W

Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V

LCM display
(1) 1.3" touchscreen

Button
Factory reset

Operating temperature
-5 to 40° C (23 to 104° F)

Operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Etherlighting

Ethernet
Locating
Speed/link
Native VLAN/network

SFP+
Locating
Speed/link
Native VLAN/network

LEDs

System
Status
RPSStatus

Box Contents
1 x USW-Pro-Max-24-PoE Switch
4 x rubber feet
1 x UK power cable
1 x Pair rackmount ears
1 x Rackmount accessories

• Speed: Gigabit
• Ports: 24
• POE Capability: 57V
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
