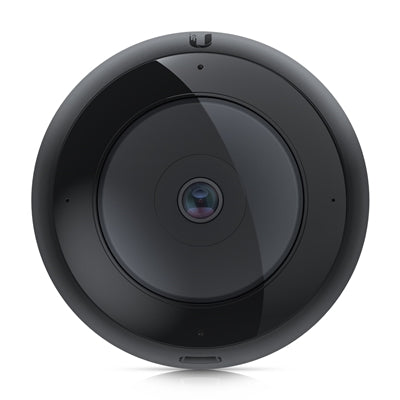

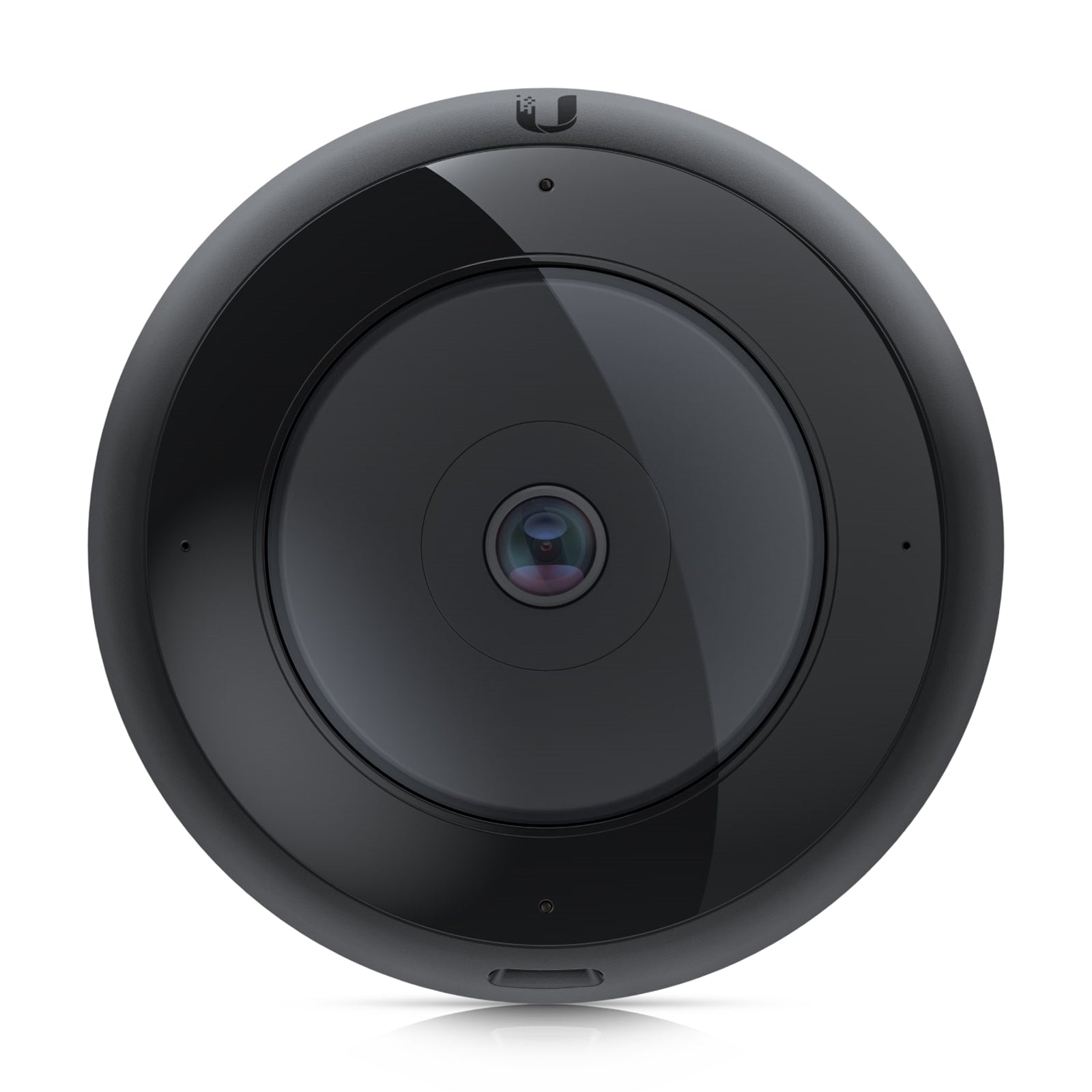

Ubiquiti UVC-AI-360 UniFi Protect PTZ Camera AI 360

The Ubiquiti UVC-AI-360 is a professional-grade PTZ camera engineered for comprehensive overhead surveillance in both indoor and outdoor environments. This advanced security solution delivers 1920 x 1920 resolution video at 30 frames per second, ensuring crystal clear monitoring around the clock with built-in IR LED illumination.

360° Panoramic Coverage

Equipped with an ultra-wide 360° fisheye lens and a 5MP CMOS sensor, the AI 360 provides complete panoramic surveillance with no blind spots. The expansive coverage area allows a single camera to monitor spaces that would typically require multiple traditional cameras, making it a cost-effective solution for large areas including shopping centres, parking lots, airports, and train stations.

Weather-Resistant Construction

Built with aluminum alloy and polycarbonate materials, the UVC-AI-360 features IPX4-rated weatherproof housing and IK08-rated tamper resistance. This robust construction protects against harsh weather conditions and potential vandalism, ensuring reliable operation in challenging outdoor environments with operating temperatures ranging from -20 to 40°C.

Advanced Night Vision

The integrated IR LEDs and IR cut filter enable clear nighttime surveillance, automatically switching between day and night modes to maintain optimal image quality in any lighting condition. The camera captures fine details with exceptional clarity regardless of the time of day.

Seamless UniFi Integration

Powered by an ARM quad-core Cortex-A53 processor with 2GB LPDDR4 memory, the AI 360 integrates effortlessly with existing UniFi Protect deployments. Adoption takes minutes through the UniFi Protect web application or mobile app for iOS and Android. The camera supports H.264 and MJPG video compression with adjustable image settings including color, brightness, sharpness, contrast, white balance, and exposure control.

Power and Connectivity

The UVC-AI-360 draws power via PoE (48VDC, 0.18A) with a maximum consumption of 8.64W, supporting voltage ranges from 37 to 57VDC. The GbE RJ45 port ensures reliable network connectivity, while the built-in microphone and speaker enable two-way audio communication.

Technical Specifications

Mechanical

Dimensions: 147 x 49 mm (5.77 x 1.94")
Weight: 655 g without mount, 685 g with outdoor accessory
Enclosure materials: Aluminum alloy, polycarbonate, hard-coated dome
Weatherproofing: IPX4
Resistance: IK08

Optics

Sensor: 5 MP CMOS sensor
Lens: Fisheye lens
View angle: 360°
Night mode: Built-in IR LED illumination and IR cut filter

Video

Video compression: H.264, MJPG
Resolution: 1920 x 1920 (1:1)
Maximum frame rate: 30 FPS
Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay

System

Processor: ARM quad-core Cortex-A53
Memory: 2 GB LPDDR4
Flash memory: 8GB eMMC
Management interface: UniFi Protect
Networking: GbE RJ45 port
Power method: PoE
Power supply: 48VDC, 0.18A PoE
Max. power consumption: 8.64W
Operating temperature: -20 to 40°C (-4 to 104°F)
Operating humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE

Audio

Microphone: Yes (can be disabled in software)
Speaker: Yes

Software

UniFi OS application: UniFi Protect
Mobile apps: UniFi Protect iOS and Android

Box Contents

1x UVC-AI-360
1x Indoor Lens Cover
1x Outdoor Lens Cover
1x Lens Cover Remover
1x Wall Mount Kit (Screws Included)

• Camera Resolution: 1920x1920
• Camera Type: Turret
• POE Capability: 48v
• Pack Size: Single
